Laboratory Stirrers

REMI presents the next generation of laboratory stirrers for stirring / mixing etc of chemical. pharmaceutical, food and cosmetic products. The equipment basically consists of body. Chuck, stainless steel blade propeller and a U-type stand.

Salient Features
  • High torque even at low speeds
  • Monitoring of set & actual speed
  • Wide range of impellers
  • Advanced Stirrers with microprocessor technology
  • Advanced Stirring speed control through VFD
  • Constant speed even with change of load / Voltage
  • Easy -to- read display of set & actual parameters
  • Last parameter recall. Ideal for repetitive processes
  • Accepts shafts up to 13mm Ø
  • Motor protection in case of continuous overload
  • Stopper for protection of vessel & shaft
  • Special base design for topple free operation
Technical Specifications

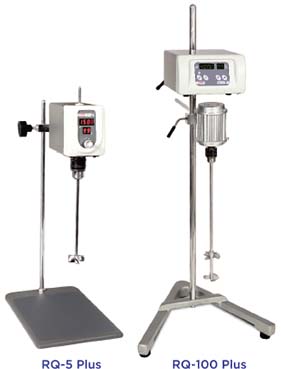

Features RQ-5 Plus RQ-100 Plus
Max. stirring capacity (Water) (Liters) 5 100
Motor Type BLDC AC Induction, 3 phase
Motor rating 10 watt 100 watt
Speed range [rpm] 50-1500 100-4000
Speed display LED LED
Timer 0 to 99 Minutes 0 to 99 Minutes
Motor Overload protection LED light flash, auto stop LED light flash, auto stop
Chuck Ø (mm) 1.5 to 10 1.5 to 13
Stirring Shaft Ø x length (mm) 8 x 250 12 x 500
Impeller Type / Ø (mm) Axial Turbine / 36 Pitched x 2 / 65
Dimensions [Wx D x H] (mm) 115 x 180 x 155 320 x 285 x 620
Stand length (mm) 600 (‘2’) 1220 (‘4’)
Weight [kg] 6.5 19
Power [W] 10 watt 175 watt

Impellers


Axial flow from top to bottom for stirring in round vessels


Radial flow from top to bottom for medium to high speed. For aeratin of low viscosity media


Radial flow from top to bottom for medium to high speed with high shearing force


4 Cross Blade
Axial flow from top to bottom for medium to high speed


Teflon Pestle
For homogeniser

Magnetic Drive Coupling

Magnetic Couplings for High vacuum distillation

Salient Features
  • Ideal for high vacuum distillation in glass reactors.
  • For sealing glass reactor shaft in place of gland / bush packing which leaks / fails under high vacuum.
  • Zero leakage under very high vacuum
  • Safe & reliable for reactions involving hazardous, toxic, corrosive & expensive chemicals / gases.
  • Faster distillation & better product quality
Specifications
Specifications
Max. working Pressure & Temp : Full vacuum, 200°C
R.P.M. : 0 – 3000
‘O’ ring : Viton
Wetted Parts : SS316 inner rotor with hast C bottom adaptor
Drive End connection M.O.C. : Carbon filled PTFE
Technical Specifications
Sr.No Model No. Torque Capacity Kg-cm Drive End Connections Shaft Diameter Recommended For Reactor Volumes
1 RMG-08 8 B 29 8 mm 500ml to 5 Ltrs
2 RMG-20 20 B 29 8 mm 1
Ltr to 25 Ltrs
3 RMG-40 40 B 34 10 mm 10 Ltrs to 50 Ltrs
