Laboratory Stirrers
REMI next generation of laboratory stirrers for stirring / mixing etc of chemical. pharmaceutical, food and cosmetic products.
Salient Features :
- High torque even at low speeds
- Monitoring of set & actual speed
- Wide range of impellers
- Advanced Stirrers with microprocessor technology
- Advanced Stirring speed control
- Constant speed even with change of load / Voltage
- Easy -to- read display of set & actual parameters
- Last parameter recall. Ideal for repetitive processes
- Motor protection in case of continuous overload
- Special base design for topple free operation
- Stirring Shaft SS316, Retort Rods SS304
| Technical Data | ||||||||||

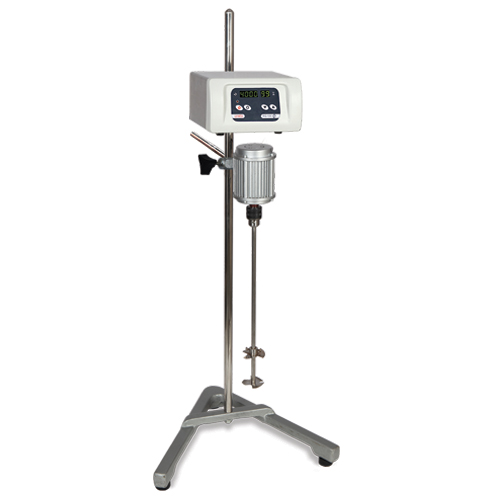

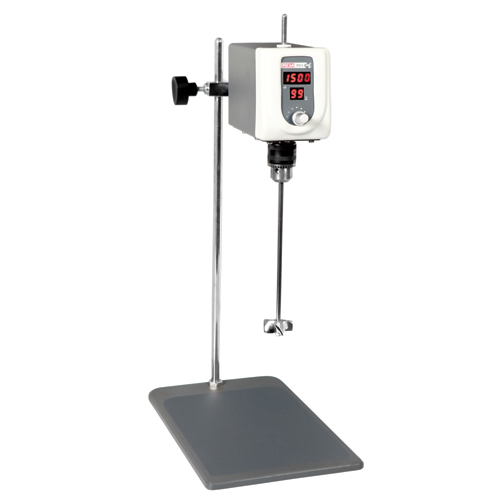

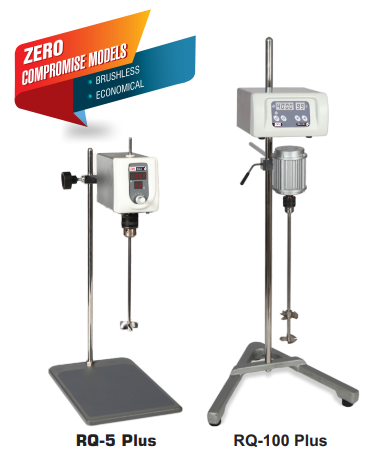

| Features | RQ-5 Plus | RQ-100 Plus | ||||||||
| Max. stirring capacity (Water) (Liters) | 5 | 100 | ||||||||
| Motor Type | BLDC | AC Induction, 3 phase | ||||||||
| Motor Rating | 10 watt | 100 watt | ||||||||
| Motor Range (rpm) | 100 – 1500 | 50 – 4000 | ||||||||
| Speed Display | LED | LED | ||||||||
| Timer | 0 to 99 Minutes | 0 to 99 Minutes | ||||||||
| Motor Overload Protection | LED light flash, auto stop | LED light flash, auto stop | ||||||||
| Chuck Ø (mm) | 1.5 to 10 | 1.5 to 13 | ||||||||
| Stirring Shaft Ø x length (mm) | 6 x 380 mm | 12 x 500 | ||||||||
| Impeller Type / Ø (mm) | Axial Turbine / 36 | Pitched x 2 / 65 | ||||||||
| Dimensions [W x D x H] (mm) | 80 x 180 x 370 | 320 x 285 x 620 | ||||||||
| Stand length (mm) | 500 | 1200 | ||||||||
| Weight (Kg) | 6.5 | 19 | ||||||||
| Power (W) | 10 watt | 175 watt | ||||||||
Supply: 220–240 Volts, 50 Hz Single Phase.
