SEROCOOL series of biological refrigerators are specially designed to store temperature sensitive reagents, kits & biological specimens. Serocool meets requirement of various departments of hospital, pharmacies & medical diagnostic laboratories i.e.;Pathology, Biochemistry, Hematology, Microbiology, Molecular, Serology & Genetics.
Environment friendly high density insulation with advanced high capacity compressor helps in safe & accurate temperature management for sensitive biological samples. Full glass door helps in convenient view of stored samples along with forced air circulation system to ensures uniform temperature across the chambers. Adjustable trays helps to optimize the storage space for samples of varied sizes.
Salient Features:
- Microprocessor based accurate temperature control with advanced PT-100 sensor
- Outer body : Galvanized steel with anti scratch rust proof polish
- Inner body : Medical-grade compression molded plastic
- Adjustable coated wire mesh shelves
- Clear product visibility with moisture resistant full glass door with magnetic gasket
- High / low temperature alarm
- Hermetically sealed, energy saving, low noise, easy to service compressor.
- Self-Closing door with lock & magnetic gasket
- Forced-air Circulation, auto-switch off on door opening for uniform temperature (<+10 C deviation).
- Automatic fast defrosting with antifreeze technology with digital controller
- Data documentation can be read via RS-485 interface.
- Audio-visual alarm in the case of temperature deviations and power failure.
- LED-Illumination mounted on side wall.

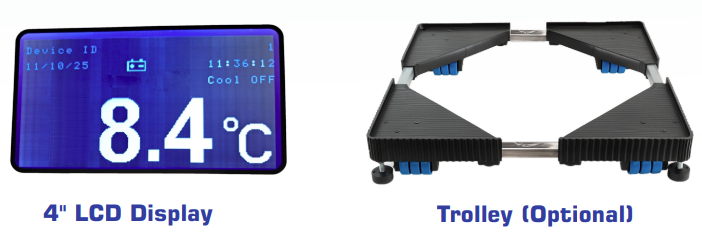

- 4 inch attractive LCD display.
- Histogram format of 24 hr temperature recording.
- Memory of 1000 records with RS-485 port.
- Battery-backup for temperature controller
- Built in voltage stabilizer
- For effortless movement, a trolley is available as an optional accessory at an extra cost.
Microprocessor Based Precise Temperature Control
CFC Free Refrigerant & PUF Insulation
Efficient Refrigeration Quick Temperature Pull Down
Microprocessor Based Auto-defrost Moisture Resistant Glass Door
Menu Driven Settings Data Encryption & Protection
Ergonomically Designed User Friendly Controls & Alarms
Intelligent Forced Air Blower Temperature Uniformity ± 1°C
Energy Efficient Long Temperature Holdover
| Technical Specifications | ||||||||||

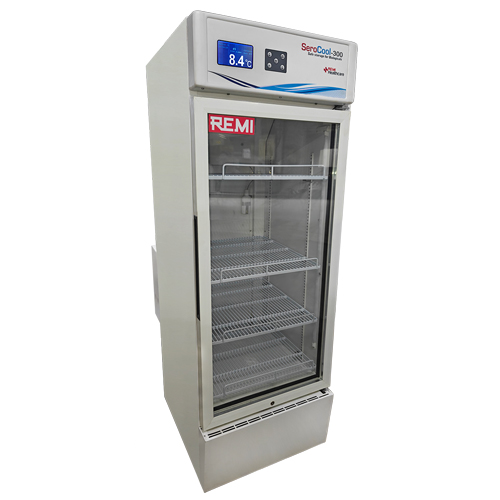

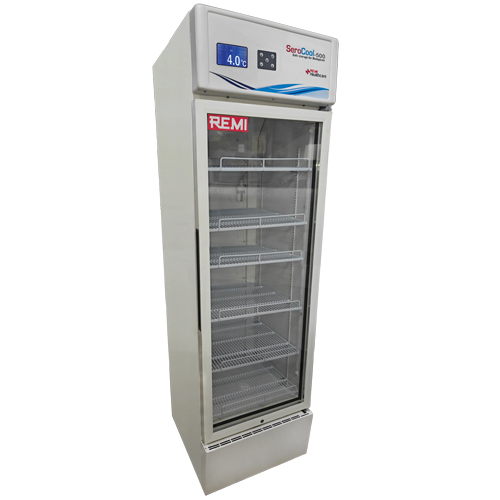

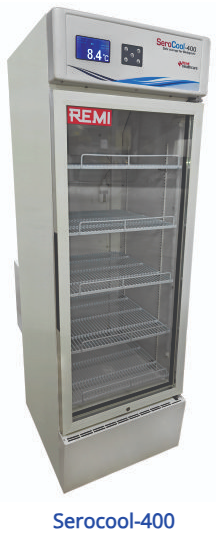

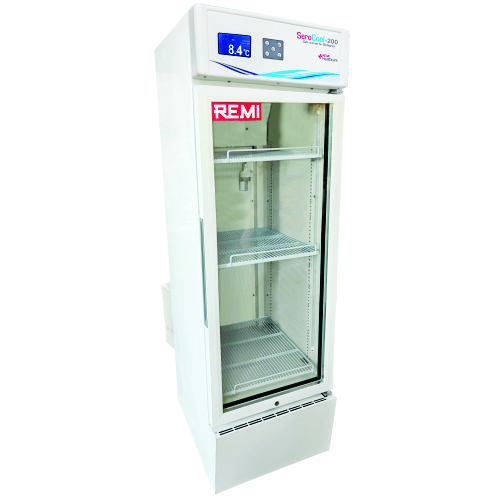

| Parameters | SeroCool 200 | SeroCool 300 | SeroCool 400 | SeroCool 500 | ||||||
| Capacity (liters) | 200 | 300 | 400 | 500 | ||||||
| Internal dimensions W x D x H (mm) | 420 x 485 x 1243 | 500 x 540 x 1384 | 500 x 540 x 1634 | 560 x 608 x 1690 | ||||||
| External dimensions W x D x H (mm) | 500 x 726 x 1660 | 585 x 781 x 1792 | 583 x 781 x 2053 | 640 x 851 x 2135 | ||||||
| Temperature Setting Range | 1°C ~ 10°C (Adjustable) | |||||||||
| Display | 4" LCD | |||||||||
| No. of Trays | 3 | 4 | 5 | 6 | ||||||
| No. of Door Glass | 1 | 1 | 1 | 1 | ||||||
| Insulation | 50 mm thick PUF CFC / HCFC Free | |||||||||
| Supply | 220-240 V, 50 Hz, Single Phase | |||||||||
