BLDC Direct Drive Stirrers
Next generation of laboratory stirrers for stirring / mixing etc. of chemical, pharmaceutical, food and cosmetic products.
Salient Features :
- 2 models – 40 liters & 20 liters capacity
- Advanced Stirrers with microprocessor technology
- Speed range 50 – 2200 rpm
- Monitoring of set & actual speed
- Constant speed even with change of load / Voltage
- High torque even at low speeds
- Accurate stirring speed control
- Maintenance free Brushless DC motor ensures high torque
- Easy-to-read backlit LCD for display of set & actual parameters
- Display of speed
- Last parameter recall, ideal for repetitive processes
- Motor protection in case of continuous overload
| Technical Data | ||

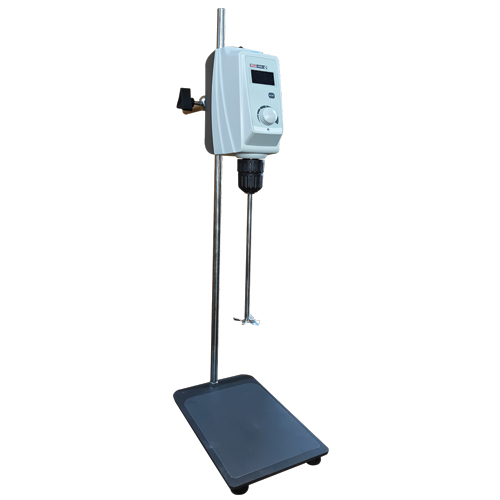

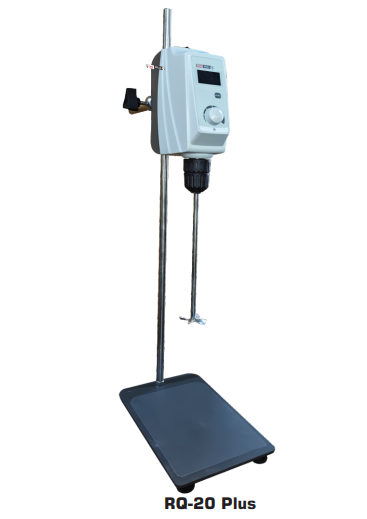

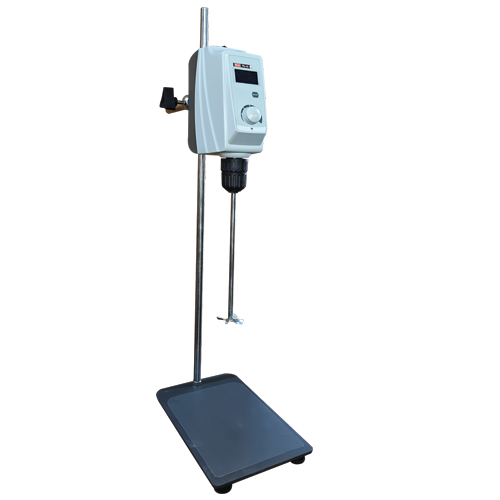

| Features | RQ-40 Plus | RQ-20 Plus |
| Max. stirring capacity (Water) (Liters) | 40 | 20 |
| Motor Rating input (W) | 120 | 60 |
| Motor Rating Output (W) | 100 | 50 |
| Speed Range (rpm) | 50–2200 | 50–2200 |
| Speed Display | LCD | LCD |
| Max. torque (Ncm) | 60 | 40 |
| Torque Display | LCD | LCD |
| Motor Overload Protection | LED light flash, auto stop | LED light flash, auto stop |
| Chuck Ø (mm) | 10 | 10 |
| Stirring Shaft Ø x length (mm) | 8 x 220 | 8 x 220 |
| Impeller Type / Ø (mm) | 4 Cross Blade / 50 | 4 Cross Blade / 50 |
| Dimensions [W x D x H] (mm) | 83 x 186 x 220 | 83 x 186 x 220 |
| Stand length (mm) | 750 | 750 |
| Weight (kg) | 2.4 | 2.4 |
| Power (W) | 130 | 70 |
| Protection class acc. to DIN/EN 60529 | IP 42 | IP 42 |
Supply: 220–240 Volts, 50 Hz Single Phase.
