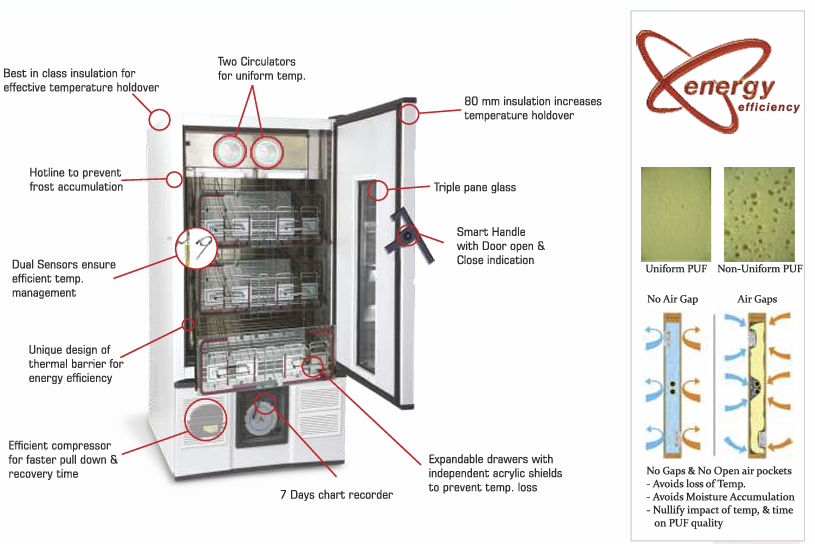

Cabinet Construction: Durable, corrosion resistant materials are used to provide years of reliable performance. The outer body is made up of powder Coated CRCA Steel & internal cabinet of Stainless Steel 304 (A.ISI Grade. Non Corrosive and Non Magnetic). The unit is fitted with heavy duty castor wheels for ease of movement.
Temperature Control & Monitoring: Microprocessor integrated system provides excellent temperature accuracy. 7 days circular chart recorder & audio visual alarm system helps to indicate storage conditions continuously.

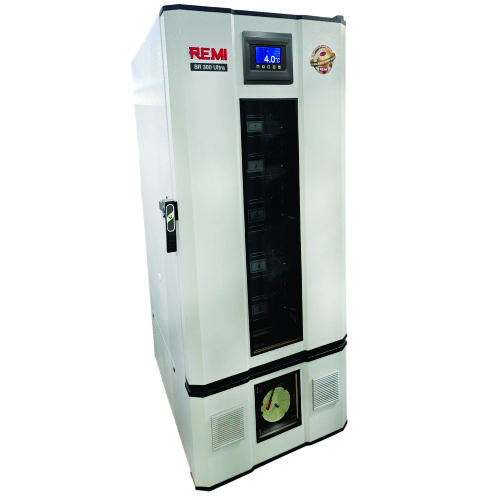

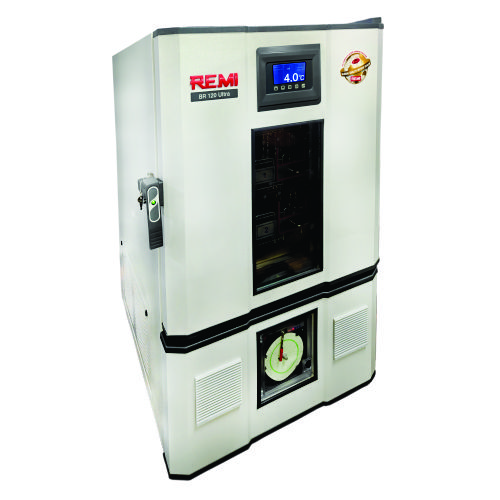

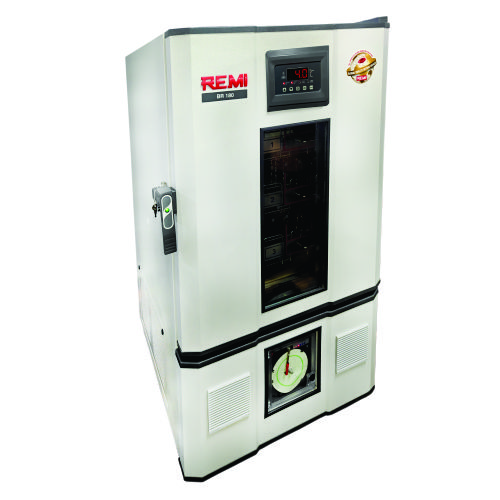

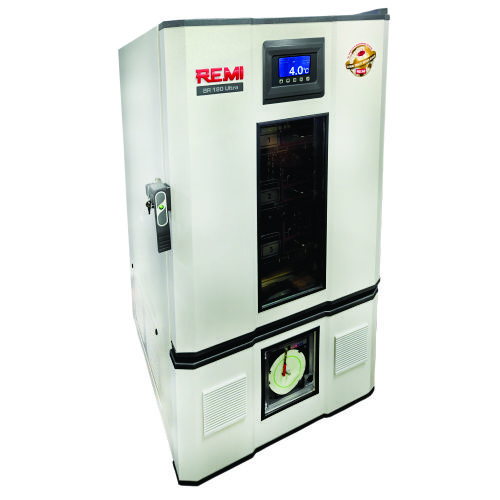

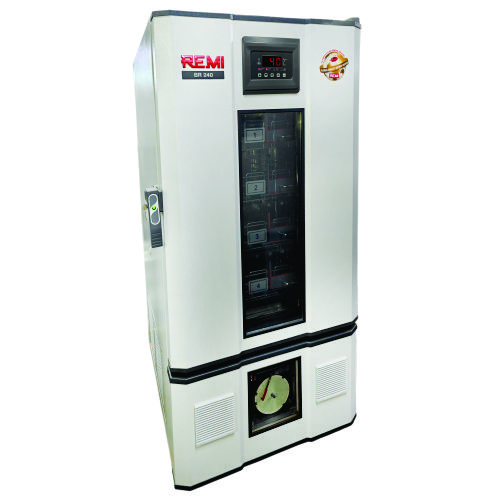

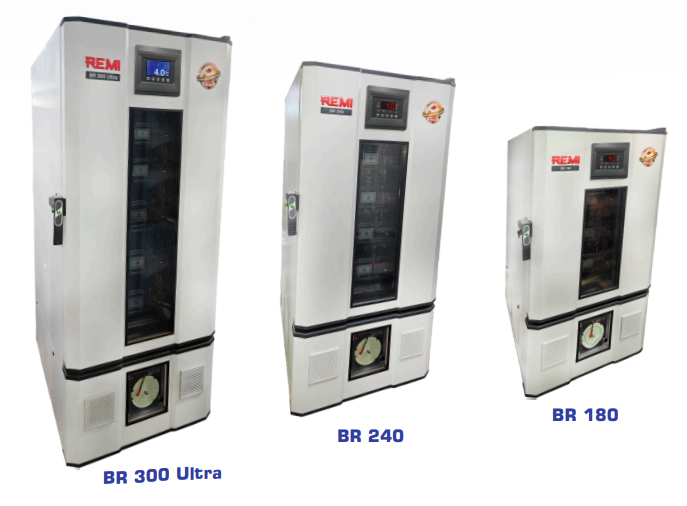

Variants: REMI Blood Storage Refrigerators are available as BR & BR Ultra variants. Both the variants available in different capacities ranging from 72 bags to 375 bags capacity Also higher capacity variants available for blood centers handling larger volumes.
Salient Features:
- Auto defrost mechanism to prevent frost formation
- Self-diagnosis & display of errors
- Safety thermostat for avoiding negative temperture
- Triple pane glass to prevent temperature loss
- Settable parameters for
- Temperature set point
- High/low temperature alarm point
- Buzzer off time (LCD)
- Audio/Visual alarms for
- Temperature high/low
- Power failure
- Sensor Open / Short
- Door Open
- Compressor on
- Power on
- Communication through RS 485

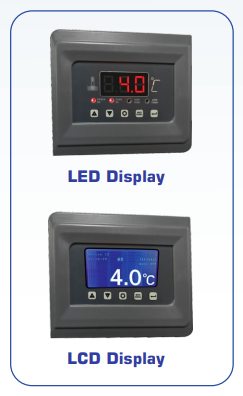

LCD Display
- 4 Inch attractive LCD display

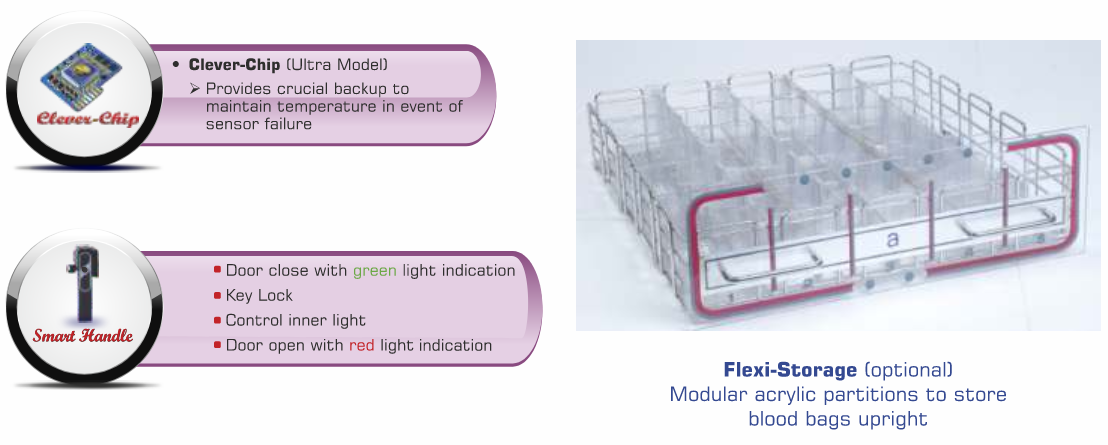

- Intelligent Controller helps maintain temperature in case of sensor failure
- Self-Diagnosis for errors
- Histogram format of 24 hours temperature recording
- Memory for storage of upto 1000 records
- Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
- Alarm on equipment / output for remote alarm
| Technical Specifications | ||||||||||

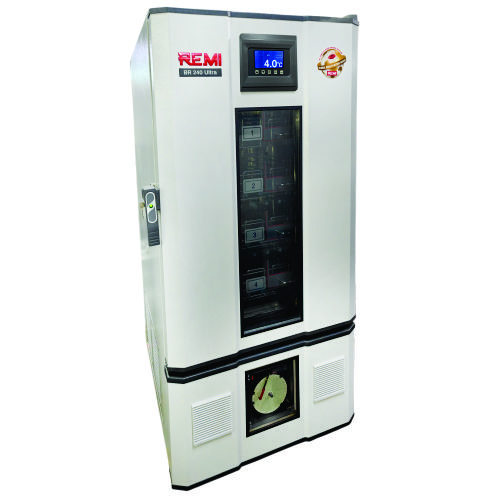

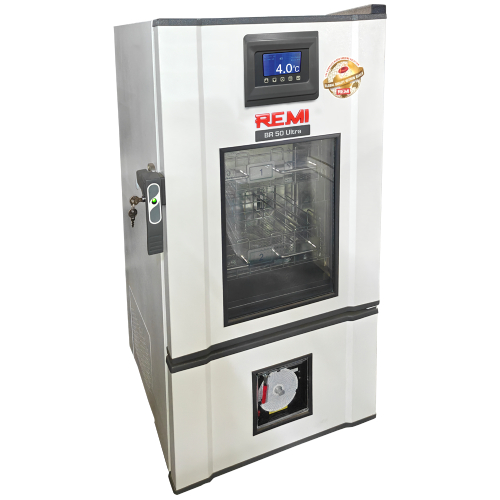

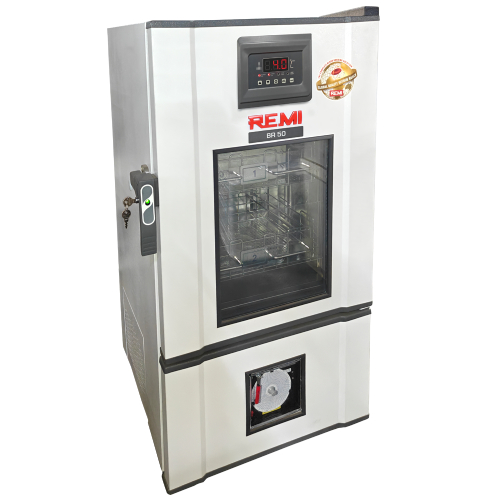

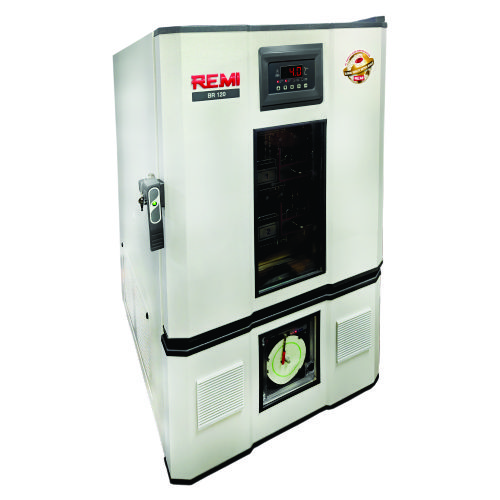

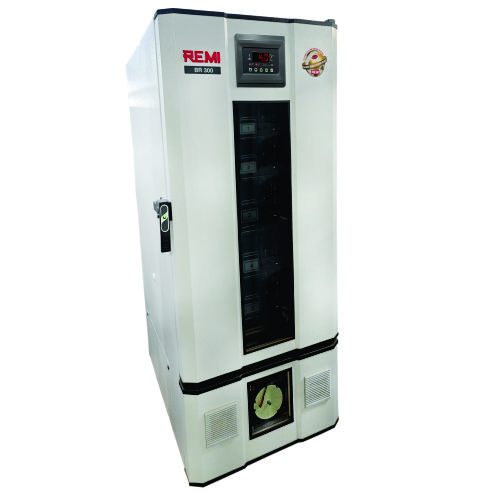

| Particulars | BR 50 | BR 50 Ultra | BR 120 | BR 120 Ultra | BR 180 | BR 180 Ultra | BR 240 | BR 240 Ultra | BR 300 | BR 300 Ultra |
| Temperature Control | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | |||||
| Display | LED | 4" LCD | LED | 4" LCD | LED | 4" LCD | LED | 4" LCD | LED | 4" LCD |
| Internal Dimensions W x D x H (mm) | 540 x 520 x 560 | 660 x 765 x 650 | 660 x 765 x 850 | 660 x 765 x 1050 | 660 x 765 x 1250 | |||||
| External Dimensions W x D x H (mm) | 640 x 685 x 1185 | 800 x 945 x 1205 | 800 x 945 x 1435 | 800 x 945 x 1635 | 800 x 945 x 1835 | |||||
| Capacity (Liters) | 158 | 330 | 430 | 530 | 630 | |||||
| Capacity of blood bags | Up to 72 | Up to 150 | Up to 225 | Up to 300 | Up to 375 | |||||
| Number of Drawers | 2 | 2 | 3 | 4 | 5 | |||||
| Drawer capacity | Up to 36 bags | Up to 75 bags | ||||||||
| Temperature | Preset at 4°C ± 0.5°C | |||||||||
| Temperature Alarm | ≥ 6°C & ≤ 2°C, Audio Visual Alarm | |||||||||
| Internal Body Material | Stainless Steel 304 (AISI grade. Non corrosive. Non magnetic) | |||||||||
| External Body Material | Powder coated CRCA steel | |||||||||
| Insulation | 50mm | 80 mm. CFC free polyurethane foam | ||||||||
| Illumination | Fluorescent Lamp | |||||||||
| Recorder | Seven days circular chart recorder | |||||||||
| Noise Level | Less Than 65 db(A) | |||||||||
| Battery Backup (Controller) | Rechargeable. maintenance free battery for Display. Alarm system & Chart recorder | |||||||||
| Recommended Voltage Stabilizer | VS 01 | VS 02 | VS 03 | |||||||
| Electrical | 220-240 volts. 50 Hz. Single Phase | |||||||||
| Compliance | EN 60601-1. EN 60601-1-2. CE. US FDA | |||||||||
