Blood Collection Monitor
| Healthcare Products | Blood Collection Monitor
BCM 10 Ultra
REMI BCM-10 Ultra, A new generation portable blood mixer, ideally suited for blood collections in donation room as well as outdoor camps. Inbuilt key features along with microprocessor based controls ensure smooth & gentle mixing process, volume accuracy, precise monitoring of time & flow rate.
The user friendly features of BCM 10 Ultra help phlebotomist to have complete control on donation process, thus ensuring donor safety & comfort.
Salient Features
- Precise control on volume collection (Microprocessor based system), best in class accuracy (deviation < 1%)
- Automatic tarring of blood Bags
- Automatic change over on battery mode in case of power failure (Battery Backup 10 hrs)
- Pause facility to temporarily suspend the donation process
- Gentle & smooth motorized clamping of blood bag tube prevents damage to the live blood cells
- Broad base tray with non-slip surface accommodates all type of blood bags
- Automatic release of the bag when lifted, after donation.
- Removable magnetic cradle: Single grip tray removal
- Recall of last blood collection parameter
- Audio Visual Alarm
- Flow rate (< 20 ml/min or > 180 ml/min),
- Completion of collection
- Battery depletion
- Visual Indication & Displays
- Set volume (ml)
- Actual volume (ml)
- Collection Process status (Run / Stop / Pause)
- Actual weight (gm)
- Flow Rate (ml/min)
- Time of collection (min)
- Battery status
| Technical Specifications | ||
| Parameter | Unit | BCM 10 Ultra |
|---|---|---|
| Mixing | Cycle / minute | 12-14 |
| Battery back up | Hours | Up to 10 |
| Maximum Volume | ml. | Up to 999 (net collection) |
| Taring range | gm | Up to 999 |
| Dimensions W x D x H | mm. | 280 x 270 x 255 |
| Net Weight | Kg. | 5 |
| Compliance | IEC 60601-1, IEC 60601-1-2 | |
| Electrical | 220 – 240 volts 50Hz, SINGLE PHASE | |

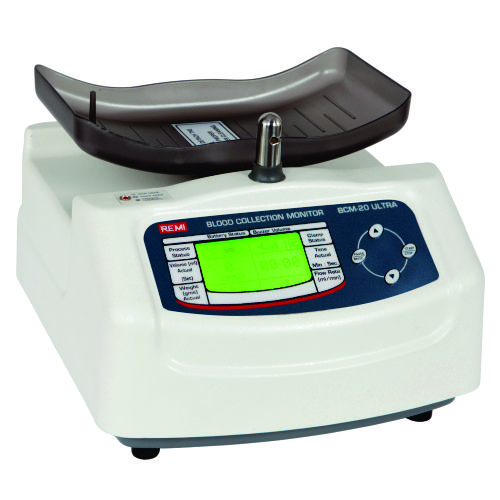

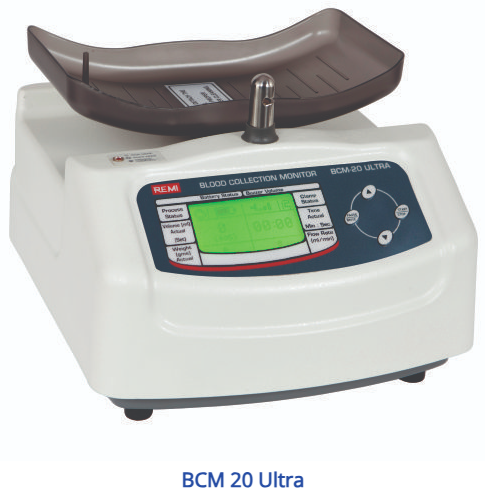

BCM 20 Ultra
REMI BCM-20 Ultra, Next generation blood collection monitor with interactive multicolor LCD display. Helps technicians to follow the SOP’s ensuring standardization of the collection process.
Removable magnetic tray ensures easy maintenance & transportation. The long lasting battery backup of 24 Hrs makes it an ideal choice for outdoor camps.
Salient Features

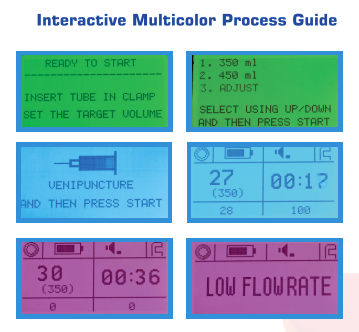

- Interactive multicolor display
- Adjustable alarm volume
- Encapsulated design allowing easy claing.No liquid instrusion in the device
- Carrying Case for device including all accessories
- Integrated Calibration function with the use of weights
- Pause facility to temporarily suspend the donation process
- Precise control on volume collection (Microprocessor based system), best in class accuracy (deviation < 1%)
- Removable Magnetic Cradle: single grip tray removal
- Automatic tarring of blood Bags weight
- Automatic release of the bag when lifted,after donation.
- Automatic central parking
- Recall of last blood collection parameter
- Audio Visual Alarm
- Flow rate (< 20 ml/min or > 180 ml/min),
- Completion of collection
- Battery depletion

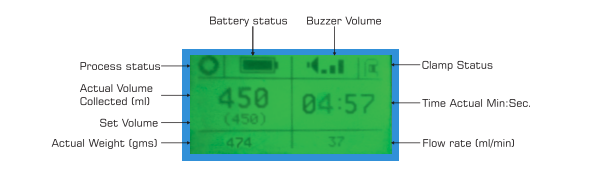

- Visual Indication & Displays
- Set volume (ml)
- Actual volume (ml)
- Collection Process status (Run / Stop / Pause)
- Actual weight (gm)
- Flow Rate (ml/min)
- Time of collection (min)
- Battery status
| Technical Specifications | ||
| Parameter | BCM 20 Ultra | |
|---|---|---|
| Mixing | Cycle / minute | 12-14 |
| Battery backup / rating | Hours | Up to 24 (with overcharge protection) |
| Max. Volume | ml | Up to 999 (net collection) |
| Maximum Taring Capacity | gm | Up to 999 gm |
| W x D x H | Mm | 275 x 318 x 205 |
| Net Weight | Kg. | 5 |
| Compliance | IEC 60601-1, IEC 60601-1-2 | |
| Electrical | 220-240 volts, 50 Hz, SINGLE PHASE | |
