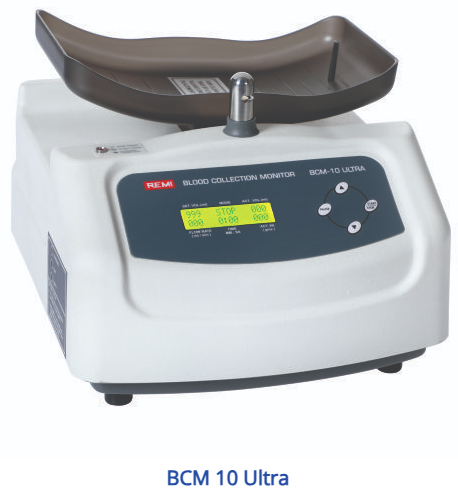

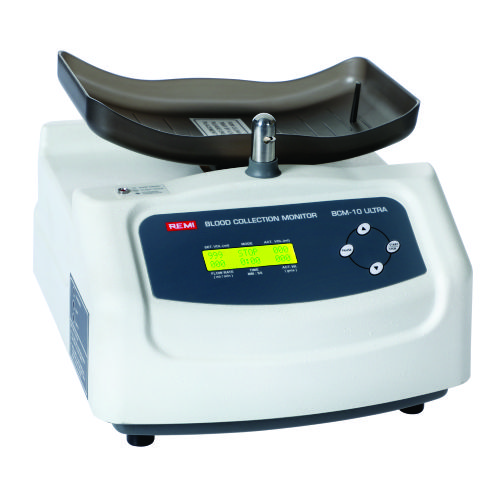

REMI BCM-10 Ultra, A new generation portable blood mixer, ideally suited for blood collections in donation room as well as outdoor camps. Inbuilt key features along with microprocessor based controls ensure smooth & gentle mixing process, volume accuracy, precise monitoring of time & flow rate.
The user friendly features of BCM 10 Ultra help phlebotomist to have complete control on donation process, thus ensuring donor safety & comfort.
Salient Features :
- Precise control on volume collection (Microprocessor based system), best in class accuracy (deviation 5 1%)
- Automatic tarring of blood bags
- Automatic change over on battery mode in case of power failure (Battery backup 10 hrs)
- Pause facility to temporarily suspend the donation process
- Gentle & smooth motorized clamping of blood bag tube prevents damage to the live blood cells
- Broad base tray with non-slip surface accommodates all type of blood bags
- Automatic release of the bag when lifted after donation
- Removable magnetic cradle: Single grip tray removal
- Recall of last blood collection parameter
- Audio / visual alarm
- Flow rate (< 20 ml/min or > 180 ml/min)
- Completion of collection
- Battery depletion
- Visual indication & displays
- Set volume (ml)
- Actual volume (ml)
- Collection process status (Run / Stop / Pause)
- Actual weight (gm)
- Flow rate (ml/min)
- Time of collection (min)
- Battery status
| Technical Specifications | ||
| Parameters | Unit | BCM 10 Ultra |
| Mixing | Cycle / minute | 12-14 |
| Battery back up/ rating | Hours | Up to 10 |
| Maximum volume | ml | Up to 999 (net collection) |
| Taring range | gm | Up to 999 |
| Dimensions W x D x H | mm | 280 x 270 x 255 |
| Net Weight | Kg. | 5 |
| Compliance | IEC 60601-1 .1E0 60601-1-2 | |
| Electrical | 220-240 volts, 50 Hz. SINGLE PHASE | |
