Blood Storage Refrigerators – Series B
Introducing our Best Value Series B Blood Bank Refrigerators, designed to ensure the safe and reliable storage of Whole Blood and pRBCs at a consistent temperature of +4°C. It is available in two variants Base Model and Ultra Model. These refrigerators offer all the essential features necessary for efcient blood storage, combining quality and affordability.
Key Features
- Pull-Out Drawers: SS perforated drawer facilitate air circulation around the blood bags.
- Insulated Glass Door: Offers clear visibility while maintaining internal temperature.
- Plexiglass Shields: Installed on each tray to prevent temperature disturbances in adjacent trays.
- Roller Wheels with leveling jack: For easy mobility and secure positioning.
- Forced Air Circulation: Ensures uniform temperature distribution across the chamber.
- Inbuilt Stabilizer: Equipped with a voltage stabilizer for uninterrupted performance.
- PT 100 Type Sensors:
- Glycerol Solution Sensor: Monitors the temperature of stored blood.
- Air Sensor: Commands the compressor to maintain the internal temperature.
Additional Features of Ultra Variant
- Display: LCD Display with internal data logging.
- Memory: Stores up to 1000 temperature records
- Alarm Events: Displays temperature records and alarm events on the LCD in the form of a histogram.
- Past 24-Hour History: Detailed temperature history display.
- Connectivity: RS 485 port for external connectivity and downloading temperature records to a PC via REMI Datasoft software
| Technical Specifications | ||||||||||

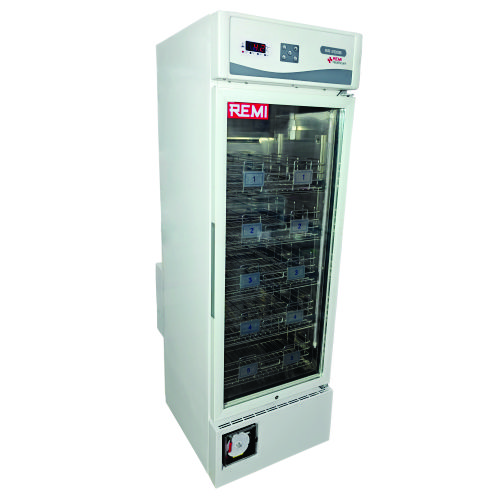

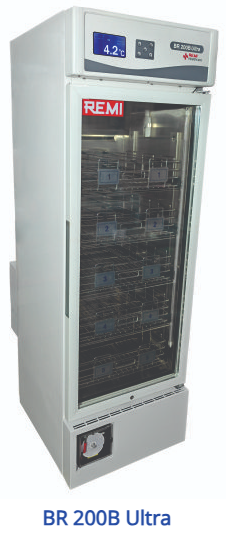

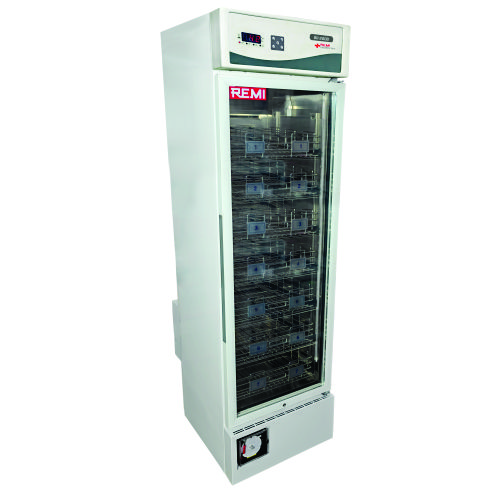

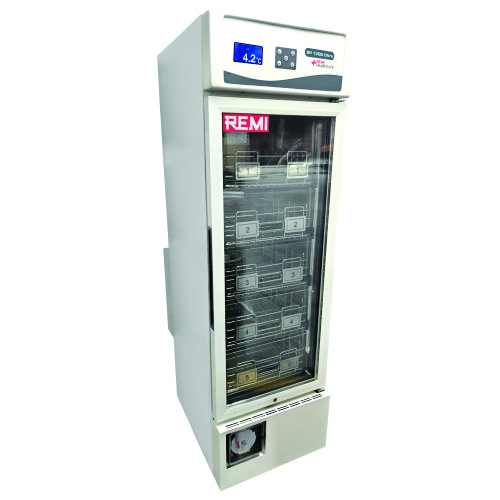

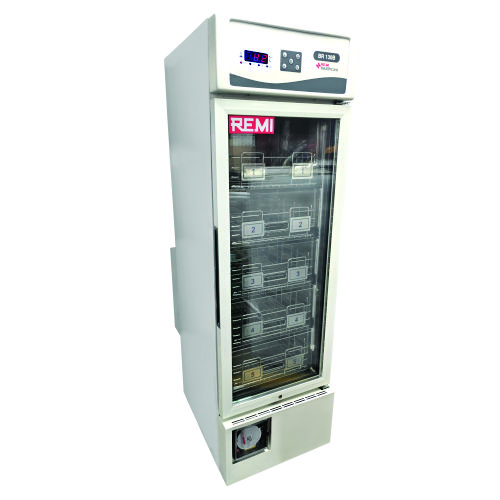

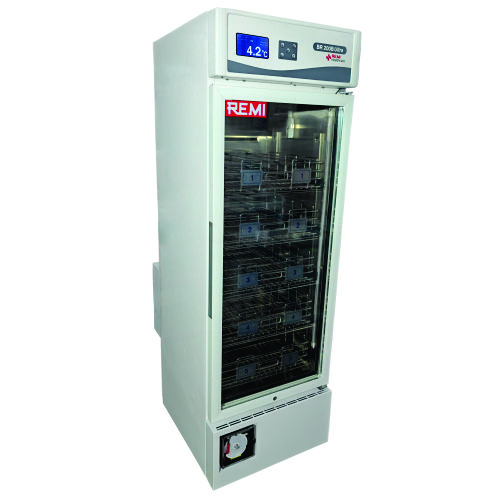

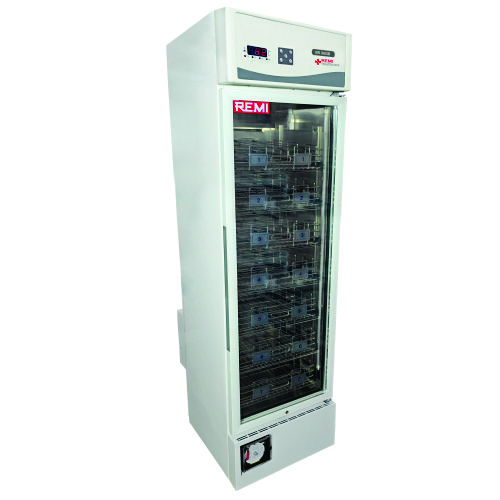

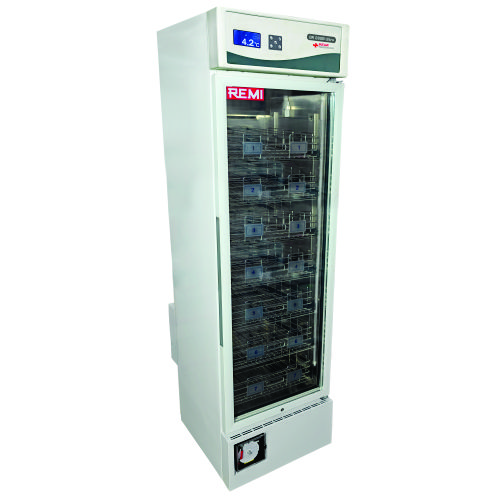

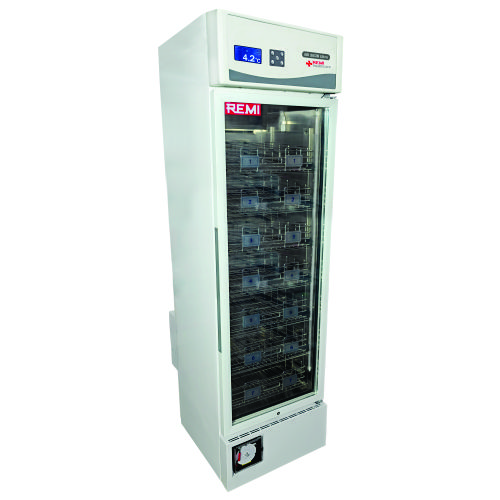

| Particulars | BR 130B | BR 130B Ultra | BR 200B | BR 200B Ultra | BR 280B | BR 280B Ultra | BR 360B | BR 360B Ultra | ||
| Temperature Control | Microprocessor with PT-100 sensor | |||||||||
| Display | LED | 4" LCD | LED | 4" LCD | LED | 4" LCD | LED | 4" LCD | ||
| Internal Dimensions W x D x H (mm) | 420 x 445 x 1118 | 500 x 500 x 1254 | 500 x 500 x 1504 | 560 x 570 x 1560 | ||||||
| External Dimensions W x D x H (mm) | 500 x 726 x 1660 | 585 x 781 x 1792 | 583 x 781 x 2053 | 640 x 851 x 2135 | ||||||
| Internal Volume (Liters) | 200 | 300 | 350 | 460 | ||||||
| Number of Drawers | 5 | 5 | 7 | 7 | ||||||
| Max Capacity of Blood Bags (350ml/450ml bags) | 120/105 | 165/135 | 231/189 | 308/252 | ||||||
| Max Drawer Capacity (350ml/450ml bags) | 24/21 | 33/27 | 33/27 | 44/36 | ||||||
| Temperature | Preset at 4°C ± 0.5°C | |||||||||
| Temperature Alarm | ≥ 6°C & ≤ 2°C, Audio Visual Alarm | |||||||||
| Power Failure Alarm | Visual Alarm | |||||||||
| Door Open Alarm | Audio Visual Alarm in case door open for over one minute | |||||||||
| Internal Body Material | Stainless Steel - 304 grade | |||||||||
| External Body Material | GI Sheet epoxy powder coated | |||||||||
| Insulation | High density polyurethane foam insulation. CFC Free | |||||||||
| Illumination | LED Strip | |||||||||
| Recorder | Seven days circular chart recorder | |||||||||
| Noise Level | Less Than 60 dB(A) | |||||||||
| Battery Backup (Controller) | Rechargeable, maintenance free battery for Display, Alarm system & Chart recorder | |||||||||
| *Supply:220-240, 50Hz Single Phase | ||||||||||
