CO2 incubators find applications in tissue engineered products, in-vitro fertilization, diagnostics, cancer research and other medical, pharmaceutical related industries. CO2 incubators are used to culture cells to provide it with the optimum temperature, moisture (sterile environment) and to maintain optimum pH under a CO2 atmosphere.
Salient Features :
- Imported infrared CO2 Sensor.
- CO2 concentration Restoration Speed.
- Polished stainless-steel chamber, rounded corners for easy cleaning. Adjustable shelves.
- HEPA Microorganism Filter at Inlet provides 99% filtration of bacteria and dust (Φ < 0.3um) and supplies pure CO2 into the incubator.
- Door temperature controller prevents condensate water on glass door of incubator effectively.
- Independent audio-visual temperature limiting alarm system.
- Alarm function for temperature difference, CO2 over concentration and concentration difference, door open time, UV working status.
- Automatic control of fan speed to maintain uniform temperature and prevent damage to samples.
- Hot air sterilizing circulation system.
- PID controller with large LCD screen ensures precise and reliable control.
| Technical Data | ||

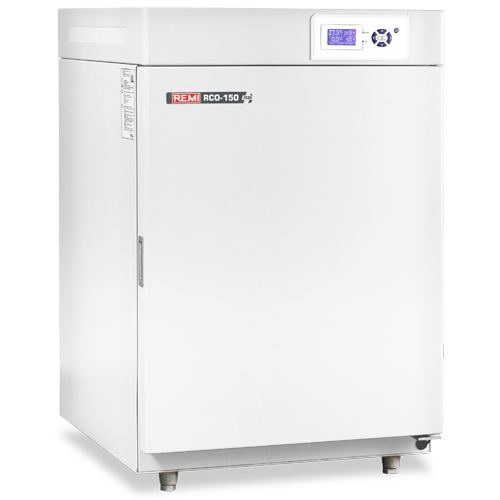

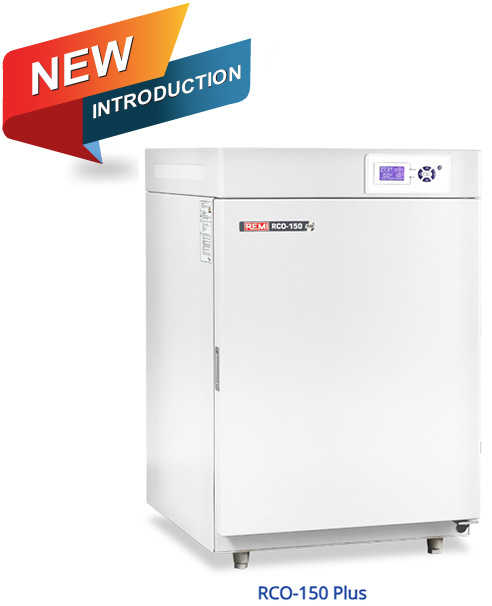

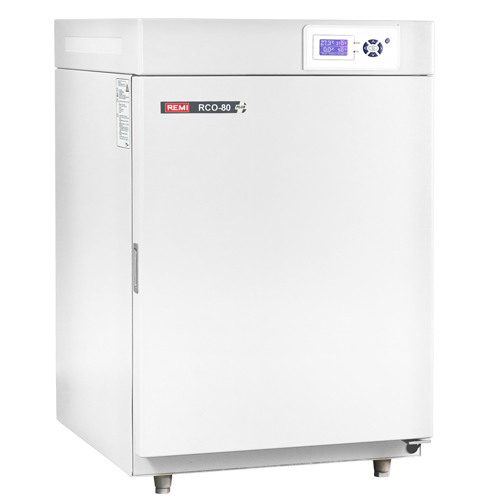

| Model | RCO-80 Plus | RCO-150 Plus |
| Chamber Volume (Liters) | 80 | 150 |
| Sensor | Infrared CO2 | |
| Heating Method | Air-Jacketed, PID Control | |
| CO2 Range | 0~20% V/V | |
| CO2 Control Resolution | ± 0.1% (IR sensor) | |
| Temperature Range / Accuracy | RT+5 ~ 55°C / ± 1°C | |
| Humidity Method | Natural vaporization > 95% | |
| CO2 Recovery | (Door opens 30s, recovery to 5%) = 3 min | |
| Temperature Recovery | (Door opens 30s, recovery to 37°C) = 8 min | |
| Shelves | 2 | 3 |
| Interior Dimension (mm) (W × D × H) | 400 × 450 × 500 | 480 × 530 × 610 |
| Exterior Dimension (mm) (W × D × H) | 590 × 687 × 790 | 670 × 767 × 880 |
Supply: 220-240 Volts, 50Hz Single Phase.
