Cooling Incubators Manufacturers and Suppliers
| Laboratory Products | Cooling Incubators
REMI Cooling Incubators are designed for applications in pharmaceutical, microbiology, biotechnology, chemical & research labs. These chambers are used for BOD test culture of bacteria, microorganism, tissue culture, incubation, immunological work & storage of vaccines etc.
These incubators are available in standard & GMP versions
Salient Features
- Temperature range 5°C to 60°C
- Unique design of thermal barrier for better energy efficiency
- Machine filled CFC free PUF insulation to eliminate void pockets
- Powerful fan motor for forced air circulation to maintain uniform conditions inside chamber
- Heating by long life SS tubular heaters
- Chamber calibration port on side
- Adjustable trays
- Hermetically sealed Compressor with CFC free refrigerant
- High temperature safety cut off & alarms for high / low set parameters
- Sensor failure alarm
- Electrical circuit breaker
- Time delay for compressor switch on
- Overload cut off relay for compressor
- Rounded inner chamber for easy cleaning
- Attractive door profile

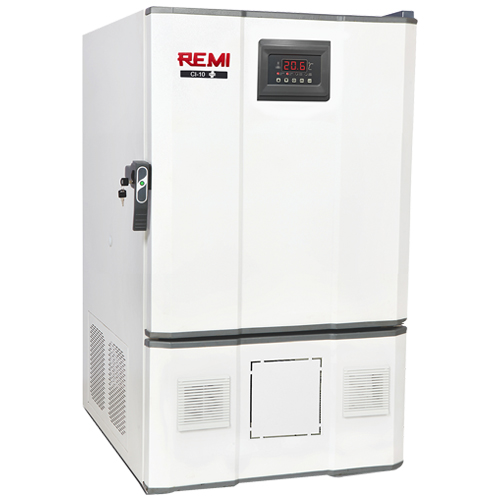

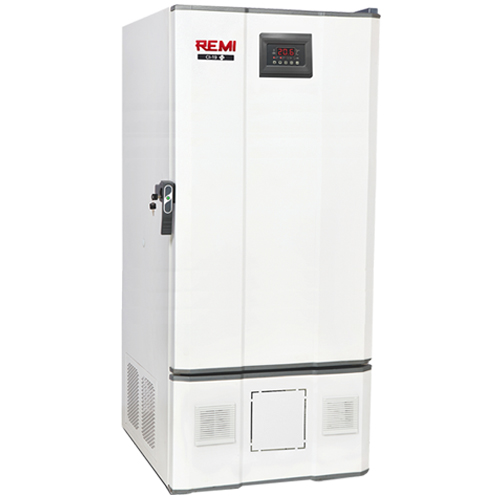

- Microprocessor controller with LED display of Temperature with set, process value & audio visual alarm (standard)
- Weight carrying capacity of each tray: 15 Kg uniformly distributed.
- Auto door closer.
- Smart Handle with LED door closure indication.
- Optional
- 4″ LCD display with additional features (Details overleaf)
- Touch screen display ( TFT ) with additional features(Details overleaf)
- Validation protocol with IQ, OQ, PQ Documentation
- Port for calibration probes / safety back up

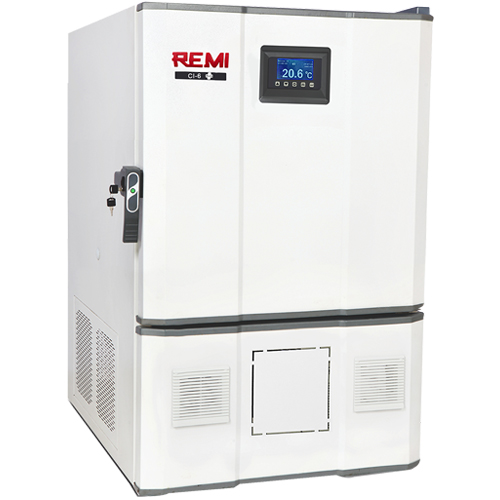

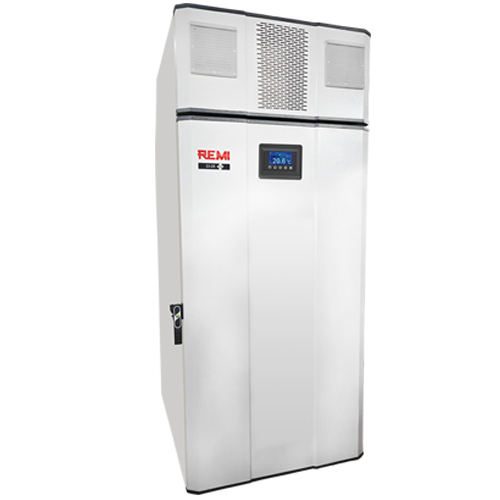

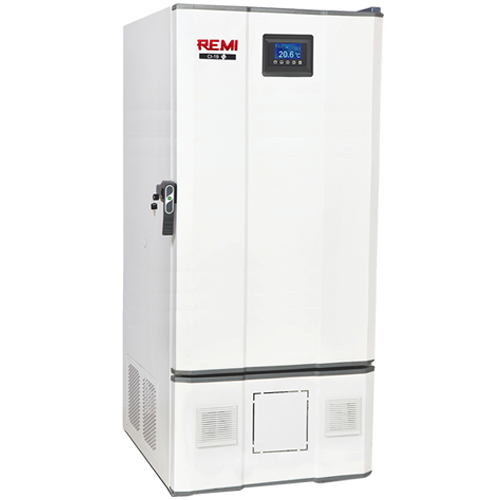

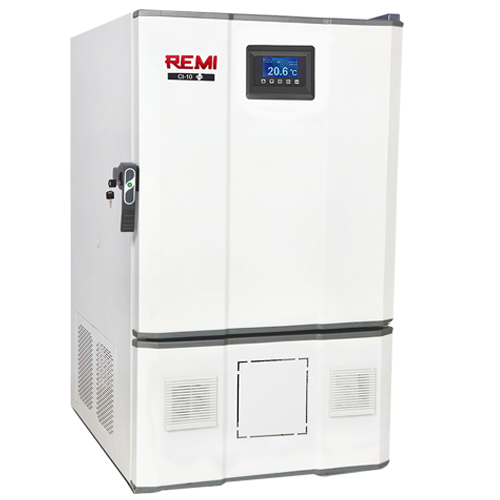

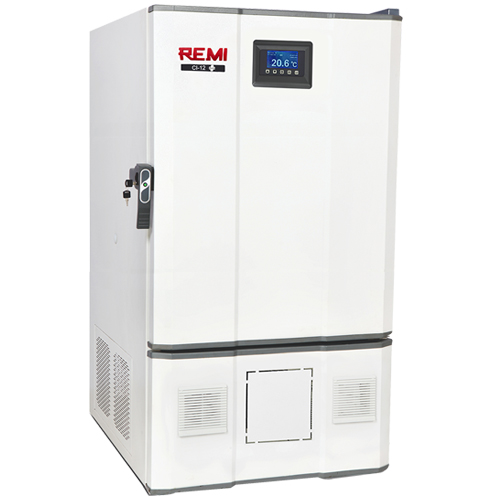

LCD Display
Features
- 4 Inch attractive LCD display
- Intelligent Controller helps maintain temperature in case of sensor failure
- Battery Backup for Temperature Controller
- Auto tuning of controller
- Self-Diagnosis for errors
- Histogram format of 24 hours temperature recording
- Settable High / low alarm points
- Memory for storage of upto 1000 records
- Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
- Alarm on equipment / output for remote alarm
- Cyclic Transfer (Optional)
REMI ‘Data Soft’
Features
- Multiple level alpha numerical password with password ageing
- Secured audit trail report
- Alarm report with mention of alarm condition
- Mean Kinetic Temperature able to be calculated for any days& alarm deviation report
- Reports in graphical and tabular form
- Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
- Multi chamber data acquisition on single software
- Communication through RS 485 / TCP IP
- Power failure and resumption recorded with date and time

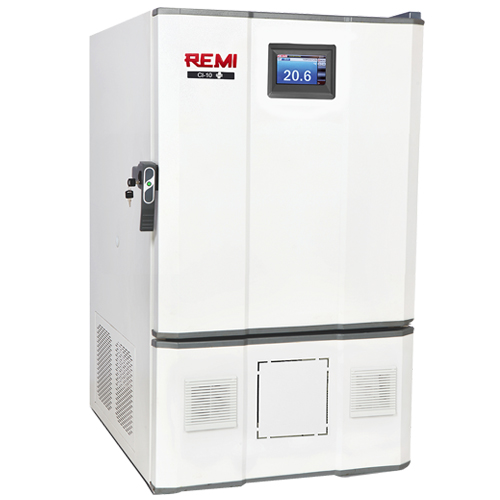

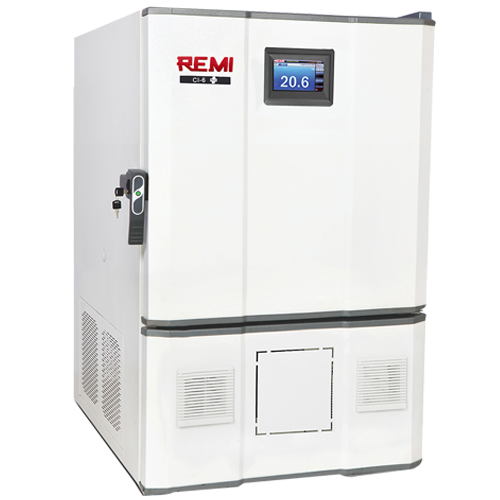

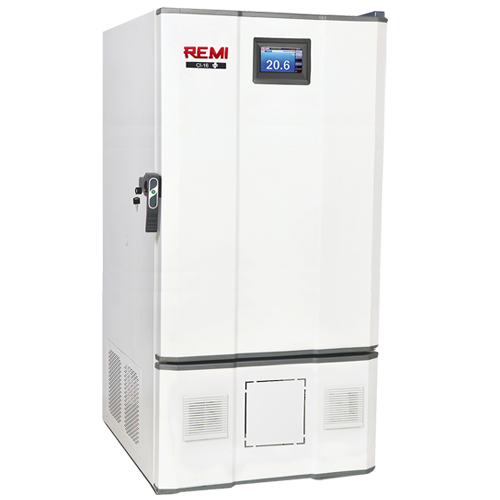

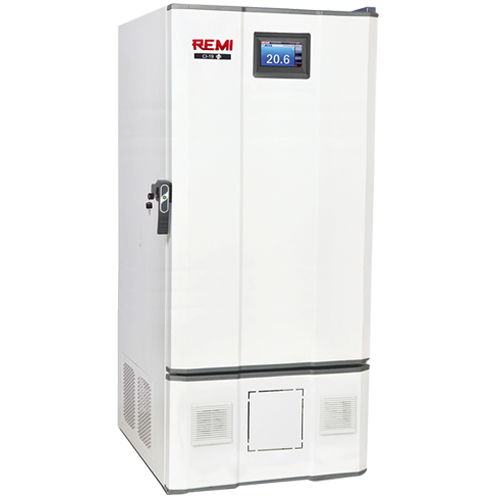

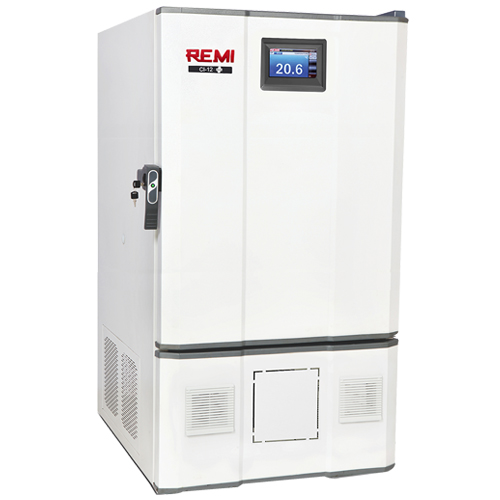

Touch Screen Display
Features
- 7 inch big colour touch screen
- PLC (Programable logic controller)
- Memory of 10,000 records
- Centronic interface to record Temperature, Date & Time by attaching Dot Matrix printer with adjustable print interval
- Ethernet port
- Battery backup in case of power failure for display, alarms & off-line data logging (optional)
- Programmable cyclic timer for controlling illumination conditions
- Remi Datasoft Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)
Optional Accessories
To be Ordered Separately
- Chamber illumination with the help of 2 Nos. fluorescent tubes
- Chamber illumination with 2 Nos. ultra violet lights
- 24 hours Cyclic Timer for regulating illumination conditions
- Data logger for 8 Point temperature recording with sensor printer interface and software
- Software as per 21 CFR Part 11 requirements
- PLC Based Control System with HMI Touch Screen
- Biometrics Magnetic Door Access for Secured Door opening with software to maintain log
- Validation (mapping) consist of one cycle for temperature at any one set point for 24 hours on empty and loaded condition
- Standby Refrigeration System
- GSM alert through SIM card
| Technical Specifications | |||||||

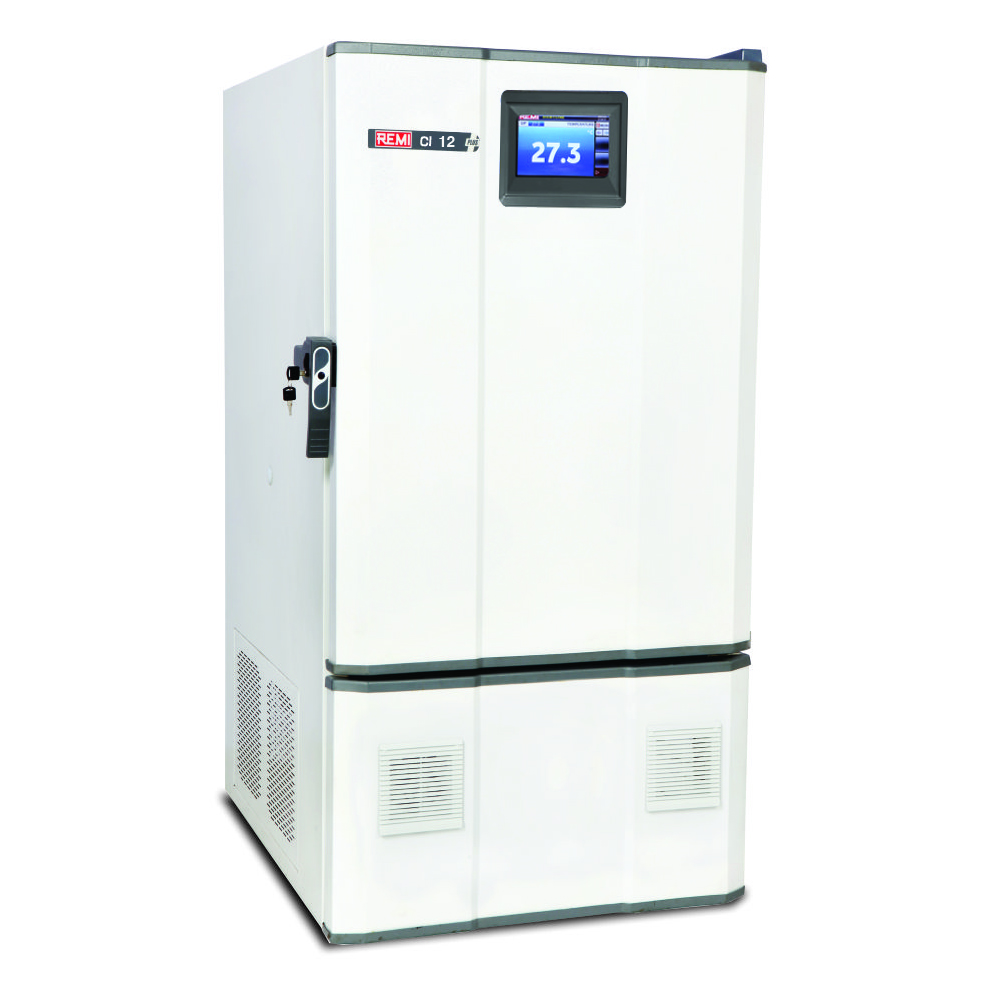

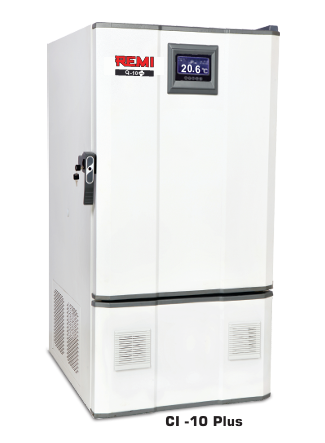

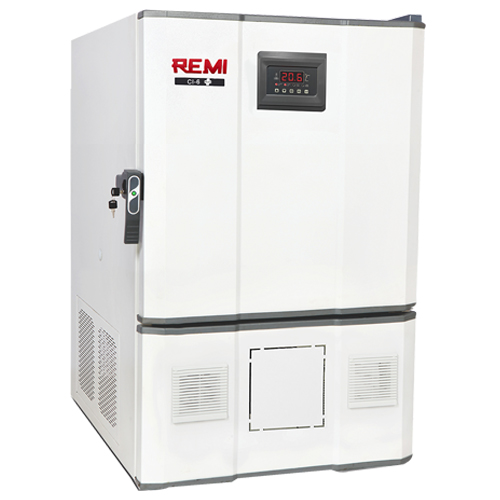

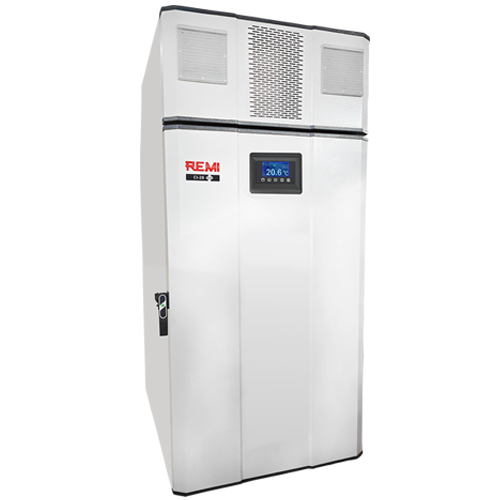

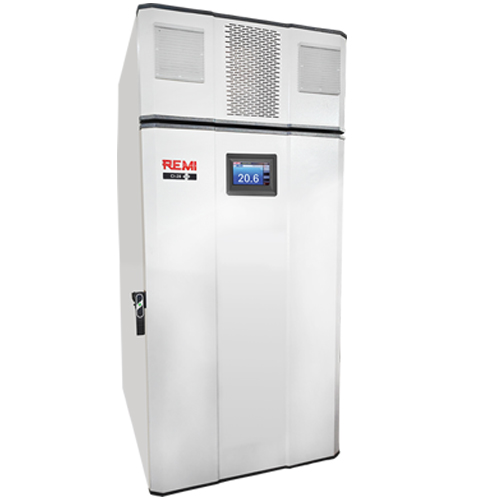

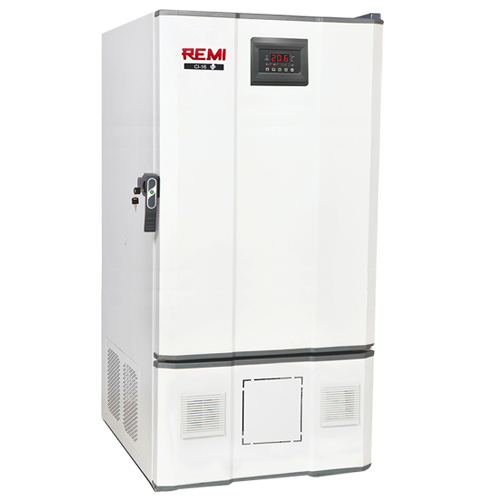

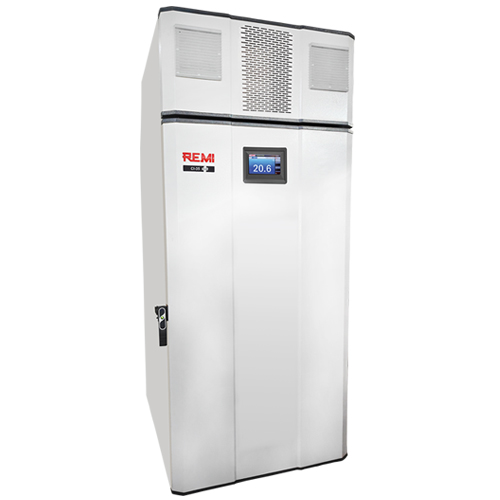

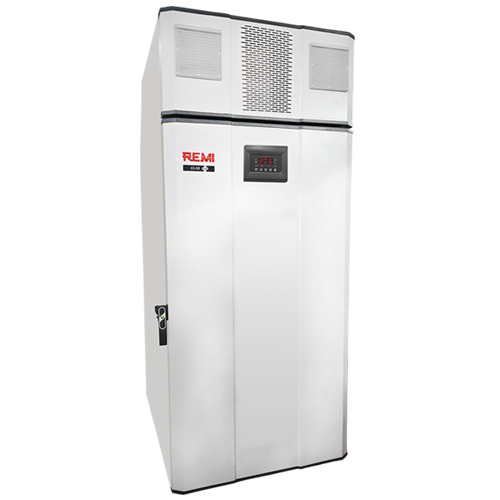

| CI-6 Plus | CI-10 Plus | CI-12 Plus | CI-16 Plus | CI-19 Plus | CI-28 Plus | CI-35 Plus | |
|---|---|---|---|---|---|---|---|
| Internal Volume (Litres) | 200 | 280 | 370 | 450 | 540 | 800 | 1000 |
| Number of tray | 2 | 3 | 4 | 5 | 6 | 6 | 7 |
| Internal Dimensions W x D x H (mm) | 660 x 655 x 450 | 660 x 655 x 650 | 660 x 655 x 850 | 660 x 655 x 1050 | 660 x 655 x 1250 | 800 x 800 x 1250 | 800 x 800 x 1580 |
| External Dimensions W x D x H (mm) | 800 x 1095 x 1020 | 800 x 1095 x 1220 | 800 x 1095 x 1420 | 800 x 1095 x 1620 | 800 x 1095 x 1820 | 960 x 1370 x 1950 | 960 x 1370 x 270 |
| Temperature Range & Accuracy | 5°C to 60°C, ± 0.5°C | ||||||
| Temperature control | Microprocessor with PT-100 sensor | ||||||

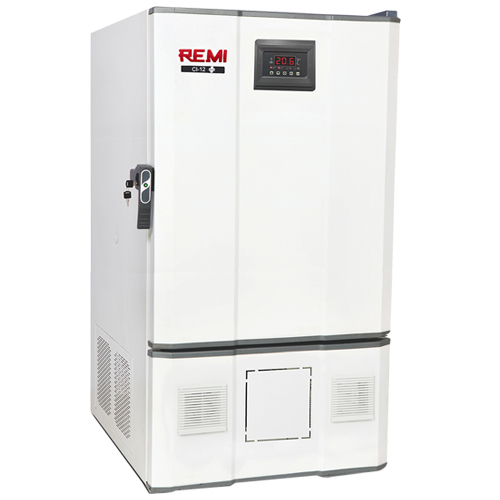

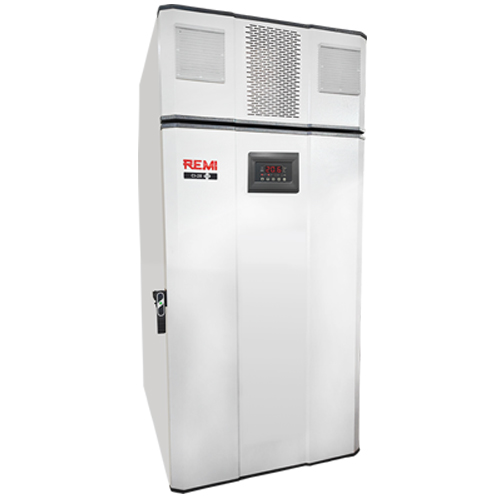

| Display | 1″ – 7 Segment, Big Size LED | ||||||
| Power Failure Alarm | Visual Alarm | ||||||
| Door Open Alarm | Audio Visual Alarm in case door open for over one minute | ||||||
| Temperature Variation Alarm | Set Temperature ± 2°C, Audio Visual Alarm | ||||||
| Illumination | 8 Watts Fluorescent Tube | ||||||
| Internal Body Material | Stainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models) | ||||||
| External Body Material | Powder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) | ||||||
| Insulation | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | ||||||
| Noise Level | Less Than 65 db(A) | ||||||
| Recommended Voltage Stabilizer | VS-02 | VS-02 | VS-02 | VS-03 | VS-03 | VS-06 | VS-06 |
| Supply: 220-240 Volts, 50 Hz Single Phase. | |||||||
Cooling Incubators
Cooling Incubators find application in Pharmaceuticals, Biotechnology and Research institutions for storage and incubation studies. They are mainly used for B.O.D test, storage of sensitive culture of bacteria microorganism and plant life, serum incubation studies and Immunological work etc.
These Chambers are constructed of double walls; the exterior is made of sheet steel while the inner chamber is made of stainless steel.
Salient Features
- Safety thermostat to prevent over heating
- Audio visual alarm warning of temperature variation
- High voltage saftey cutoff for unit protection
- Plexi glass inner door to inspect specimens
Optional
- Chamber illumination with fluorescent or ultra violet lights
- Cyclic timer for regulating illumination conditions
| Technical Data | |||||||
| CI-3S | CI-6S | CI-10S | |||||
|---|---|---|---|---|---|---|---|
| Internal Volume | 85 LTRS | 170 LTRS | 285 LTRS | ||||
| No. of shelves | 2 | 2 | 3 | ||||
| Temperature Range | 5°C to 60°C, ± 0.5°C | ||||||
| Temperature control | Digital | ||||||
| Int. Dimention W x D x H(mm) | 420 x 380 x 560 | 500 x 410 x 840 | 580 x 490 x 990 | ||||
| Ext. Dimention W x D x H(mm) | 540 x 590 x 1050 | 620 x 670 x 1380 | 700 x 750 x 1530 | ||||
| Inner Chamber Material | Stainless Steel 304 [AISI Grade, Non Corrosive, Non Magnetic |
||||||
| Outer Body Material | Powder coated CARA steel | ||||||
| Recommended Voltage Stabilizer | VS-01 | VS-02 | VS-02 | ||||
| Supply: 220-240 Volts, 50 Hz Single Phase. | |||||||
