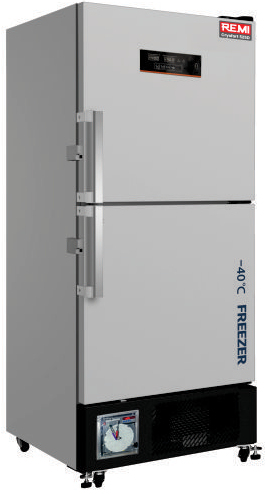

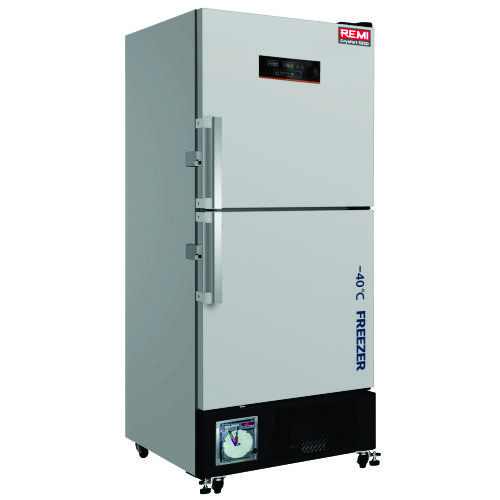

Cryofort 525D
Flexible | Safe | Independent – Redeining Plasma & Biological Storage
Capacity: Each Container accommodates up to 28 plasma bags. With 12 containers distributed across two chambers, the Cryofort 525D provides a total storage capacity of 336 plasma bags.

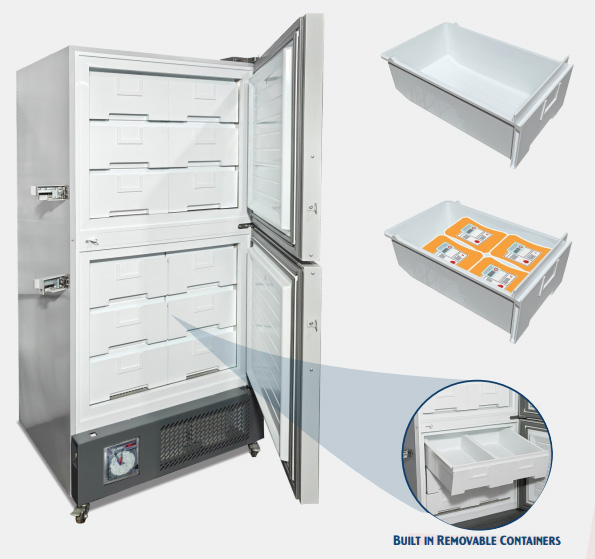

Flexibility: Containers can be removed or rearranged as needed, allowing eficient use of chamber space based on varying storage requirements.
Organized & Safe Storage: Each container can be individually labelled for precise identiication and inventory control. The dual-chamber design ensures sample segregation and enhances storage safety during operation with independent lockable doors with keys.
Humanized Design: Easy open Handles, three-dimensional door seals , multi-layer PUF insulation & anti- condensation design preserves temperature uniformity and safeguard sample integrity.
Robust Construction: Stainless Steel inner chamber ensures hygiene & durability; coated steel exterior provides long-lasting protection & fixed + universal castor wheels for effortless mobility
Ease of Maintenance: No tools removable ilters & accessible cable ports reduce downtime
Precise Temperature Control: Microprocessor Temperature Control System, temperature accuracy 0.1 °C.
Independent Cooling System: The Cryofort 525D is equipped with two separate compressors, providing independent temperature control for each chamber.
Dual Temperature Control: Allows users to set and monitor the temperature of each chamber individually, offering precise thermal management across a range of –20°C to –40°C.
Multi-Alarm System: Independent Audio/Visual Alerts for Each Chamber
- High/ Low Temperature
- Power Failure
- Sensor Malfunction.
- Door Ajar
- Ambient Temperature Deviation
Back up System: 8 hours Battery (inbuilt, self-rechargeable) Back up for display, alarm system & chart recorder enhances monitoring & reliability during power failures & maintenance.
Data & Compliance: USB interface, Remote Alarm port & 7 days circular chart recorder (optional) allows temperature tracking & easy regulatory compliance.
Specialized chart recorder with dual pen for recording temperature of both chambers independently on single graph paper.
*Unit available without chart recorder at reduced cost.
| Technical Specifications | |
| MODEL | CRYOFORT 525D |
| Refrigeration System | Two Independent Cooling System |
| Temperature Range | -20°C to -40°C, Independently settable for each chamber |
| Control System & Display | LED, Microprocessor, independent display & control for each chamber |
| Temperature Accuracy | ±0.1°C |
| Inner Chambers | Dual, Stainless Steel |
| Outer Body | Coated Steel |
| Outer Door | Insulated Dual Doors with individual locks |
| Insulation | Multi Layer, CFC Free PUF |
| Dimension (W x D x H) | 866 X 811 X 1920 mm |
| Inner Dimension (W x D x H) |
680 X 620 X 650 mm (Chamber-1) 680 X 620 X 650 mm (Chamber-2) |
| Storage System | 12 Inbuilt & Removable Flexible Containers (6+6) Each Chamber |
| Total Volume | 525 Liters (Both Chambers) |
| Mobility | Fixed + Universal Castors |
| Cooling Type & Defrost | Direct Cooling, Manual |
| Refrigerant | R 290- CFC, HCFC Free, Natural Refrigerant with Zero Ozone Depletion potential. |
| Alarms | Multi-Alarm System (Audio- Visual) independent for each chamber. Remote Alarms facility. |
| Battery Back Up | 8 hrs for Display, Alarm system & Chart Recorder (Inbuilt, self-rechargeable 12V lead acid) |
| Data Acquisition & Transfer | USB |
| Circular Recorder (inbuilt, optional) | 7 days circular chart recorder with dual pen to record temperature of both chamber on same graph independently |
| Noise Level | < 55 dba |
| Weight Nett/Gross | 142/164 Kgs |
|
Cryofort 525D – Flexible, Safe, Independent-Redefining the way Plasma and Biologicals are stored
Supply : 220-240 Volts, 50 Hz, Single Phase, Recommended Voltage Stabilizer 3Kva |
|
