Cryofort UL Series

  • REMI
  • Cryofort UL Series

    • The failure of a ULT freezer isn’t just a machine breakdown—it’s a race against time. High-capacity freezers storing thousands of samples are a critical part of your Blood Bank / lab’s worklow. A single fault can cause massive stress, potential loss of precious samples, and disruption to vital research

    Cryofort UL Series

    Ensures your peace of mind

    Smart Technology for Smart Labs & Blood Banks

    SMART INVERTER TECHNOLOGY
    Variable speed compressors are coupled in the freezer, the compressors will work based on the loads and inter change fluctuation. The control system automatically tunes the speed of the compressors to optimize the operation.

    ACTIVE ECO TECHNOLOGY OFFERS LOW ENERGY CONSUMPTION
    Smart Inverter freezer coupled with environmentally safe and friendly hydrocarbon refrigeration system, allows the freezers to operate at a low level of energy consumption.

    HIGH TEMPERATURE STABILITY
    The innovative control algorithm balances the effects of temperature loss with the unique frequency conversion refrigeration system, ensuring the cabinet temperature stability.
    VIP PLUS VACUUM INSULATION
    provides up to 30% more storage capacity than a conventionally insulated freezer.

    DUAL COMPRESSOR TECHNOLOGY
    offer the highest level of security for high-value samples. Using two independent refrigeration systems, if one system fails, the other can maintain the freezer’s temperature uniformly in the -80° range.

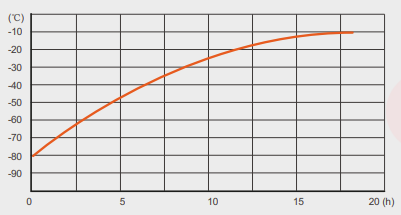

    Graph of Temperature Hold Over Time

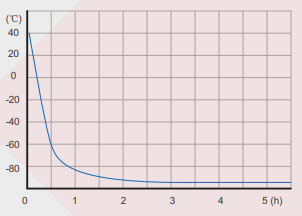

    Graph of Temperature Pull Down Time

    Exceptional Hold Over Performance even during power outage, the Cryofort UL maintains
    temperatures safely, taking 18 hours to rise from -80 °C to -10 °C

    Rapid Cooling Efficiency achieves ultra low temperature of -80 °C from +20 °C in just 3 hours at 25 °C ambient,
    ensuring faster readiness for critical storage.

    Ambient 25°C, for optimal performance. However, unit can perform on an Ambient upto 32° C

    Cryofort UL Series

    Protecting your plasma, Protecting your peace of mind

    Real time visibility, total control, uncompromised safety.
    State of the art 10.1” advanced touchscreen driven monitoring and alert systems, offers precise control, complete visibility, and total confidence in sample protection.

    10.1” Large Touch Screen

    Multi Visual System empowers you to monitor temperature, humidity and alarms in real time.
    Highest level of safety for your samples & regulatory compliance as you can access detailed data & trends with ease

    USB interface for data download

    Multi layer Silicone Sealing

    Provides tight seal for reducing heat exchange
    Better holdover time & less energy consumption

    Heated Pressure Equalization Port

    For quick access of samples

    Stainless Steel Plasma Storage Containers

    (Optional Accesserories at Additional Cost)

    Model No.: T01
    Small size containers
    Dimensions : 144 X 246 X130
    Capacity- 6 Bags

    Model No.: T02
    Large Size Containers
    Dimensions : 144 X 416 X130
    Capacity – 12 Bags

    Storage Capacity

    Each shelf can accommodate both big and small plasma bag trays

    (optional accessory, available at additional cost).

    Big tray: 12 plasma bags × 12 trays = 144 bags
    Small tray: 6 plasma bags × 12 trays = 72 bags

    Vial Capacity :

    Cryofort UL 825 – Maximum upto 60,000 vials of 2ml
    Cryofort UL 600 – Maximum upto 40,000 vials of 2ml

    Chart Recorder (Optional Accessory)

    Cryofort UL 600 – Placement on Side panel (door opening side)
    Cryofort UL 825 – Placement on Front panel

    Cryofort UL Series

    Your samples, your trust, our promise of peace of mind

    Technical Specifications
    MODEL CRYOFORT UL 825 CRYOFORT UL 600
    Cabinet Type Upright
    Sound Levels (dB) 51
    Defrost Type Manual
    Cooling System Twin Cooling
    Refrigerant HCFC Free
    Capacity (L) 838 601
    External Material High Quality Coated Steel
    Internal Material Stainless Steel
    No. of Inner Doors 4 Nos.
    Controller Microprocessor
    Display Panel 10.1" LCD touch Display (TFT), Password Protected
    Temperature Range (°C) -40~ -86
    Product Dimensions (mm)(w*d*h) 1175*995*1980 895*995*1980
    Interior Dimensions (mm)(w*d*h) 885*720*1310 638*720*1310
    Power Supply 220-240~V/50Hz
    High Temperature Alarm Y
    Low Temperature Alarm Y
    Door Alarm Y
    Power failure Alarm Y
    High Condenser Temperature Alarm Y
    Low Battery Alarm Y
    Backup Battery Endurance 15 hr display & alarm backup | Rechargeable 12V, lead acid
    Sensor Failure Alarm Y
    USB Interface Y
    Frame anti-condensation Y
    RS-485 Port Optional
    Remote Alarm Y
    5V power supply Y
    Universal Wheel Y
    Levelling Feet Y
    Port Available Temperature Probe
    Optional at additional Cost : Servo Controlled Voltage Stabilizer (Recommended 7 KVA)
    LN2/CO2 back up
    Supply : 220-240 Volts, 50 Hz, Single Phase
    Quick Connect Download Brochure WhatsApp

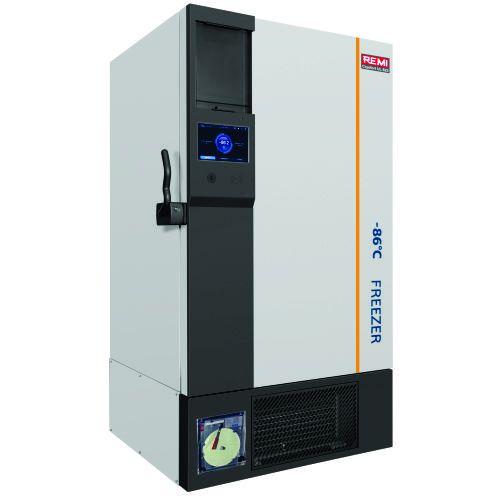

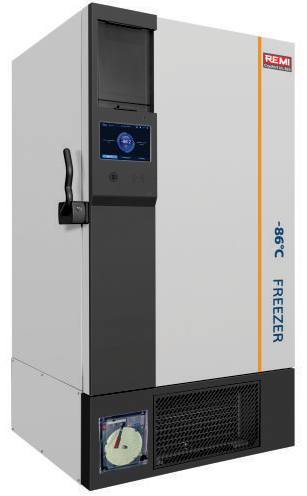

    CRYOFORT UL 825
