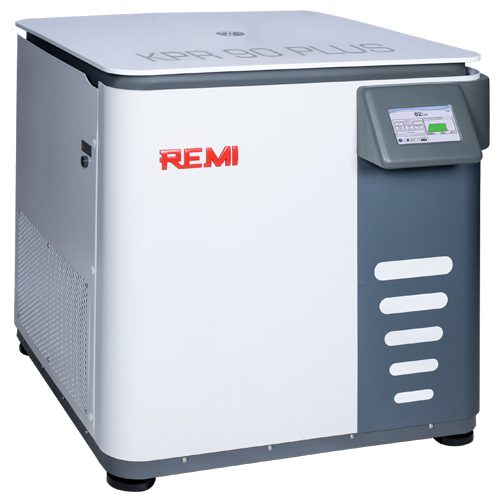

KPR-90 Plus are the next generation microprocessor controlled centrifuges with advanced features and breakthrough Performance providing high-speed precision. Centrifuge ensures quick and accurate separation in a wide variety of rotors. Rotor options are ideally suited for handling large volumes of serum separation for kits & Vaccine manufacturing Plants.
Salient Features:
- Safety Assurance: Includes built-in safety protocols, preventing excessive acceleration that could jeopardize sample integrity.
- Increased Throughput: Faster, more efficient runs result in improved productivity and reduced turnaround times.
- Advanced Touch Screen: Intuitive interface and gloves-friendly operation with menu-driven settings.
- Wind-shielded Rotors: Offer energy saving and better temperature management.
- Armoured Chamber: Ensures minimized vibration and noise level.
- Lid Interlocking: When the rotor is in motion, unlocking is possible only when the rotor stops completely.
- Recovery of Process: In case of power interruption.
- 15+15 Acceleration & Deceleration Profiles.
- Display of Real-Time Run Graph: With set and run parameters.
- Programmable Memory: Facility to set up to 400 centrifugation programs, 20 programs under each user profile.
- 99 Programs Memory & Pre-Cooling.
- Onscreen Manual: Troubleshooting and process guide.
- Self-Diagnosis of Errors.
| Technical Data | ||||||
| Parameter | Unit | Swing Out Rotors for KPR 90 Plus | ||||
| Max Speed | RPM | 4200 | 4000 | 3860 | ||
| Max RCF | × g | 5230 | 5300 | 5500 | ||
| Compatible Rotors with Suitable Carrier | Model | K-731 | K-733 | K-734 | K-735 | K-736 |
| Max Capacity | Liter | 6 | 8 | 12 | 16 | 16 |
| Max Bottle Size | (Litres) × nos | 1 × 6 | 2 × 4 | 2 × 6 | 1 × 16 | 2 × 8 |
| Temperature Range | °C | 0 to +40 | ||||
| Noise | dB | Less than 55 | ||||
| Drive Technology | Brushless induction motor with frequency drive | |||||
| Weight | kg | 600 | ||||
| Max Time | hh : min | 0 to 99 hr 59 mins, Continuous run function | ||||
| Dimensions (W × D × H) | mm | 950 × 1160 × 1010 | ||||
| Voltage Stabilizer | 10 KVA | |||||
| Compliance | IEC 61010-1:2016, IEC 61010-2-020:2016, EN 61326 | |||||
Supply: 220–240 Volts, 50 Hz, Single Phase.
| Rotors Head Listing | |||
| Models | Description | Speed (rpm) |
RCF (g) |
| K-731 | 6 place wind shield swing out rotor with a set of 6 metal carriers, each with capacity of 1 Ltr. with 6 nos 1 Ltr. polypropylene bottles. | 4200 | 5230 |
| K-733 | 4 place wind shield swing out rotor with a set of 4 metal carriers, each with capacity of 2 Ltr. with 4 nos 2 Ltr. polypropylene bottles. | 4000 | 5300 |
| K-734 | 6 place wind shield swing out rotor with a set of 6 metal carriers, each with capacity of 2 Ltr. with 6 nos 2 Ltr. polypropylene bottles. | 4000 | 5300 |
| K-735 | 8 place wind shield swing out rotor with a set of 8 metal carriers, each with capacity of 2 Ltr. with 16 nos 1 Ltr. polypropylene bottles. | 3860 | 5500 |
| K-736 | 8 place wind shield swing out rotor with a set of 8 metal carriers, each with capacity of 2 Ltr. with 8 nos 2 Ltr. polypropylene bottles. | 3860 | 5500 |
| Angle Rotors | |||
| K-905 | Angle rotor 6 × 500 ml with polypropylene bottles. | 6500 | 8250 |
