Homogenizers are used to break down and disperse particles or droplets within a liquid to create a uniform, stable, and consistent mixture. This process, known as homogenization, is crucial in a vast array of industries for both research and commercial manufacturing. Homogenization ensures Particle Size Reduction, Emulsification, Dispersion, Increased Stability, High-Shear Mixing. The end use of the product dictates the type of homogenizer and the degree of homogenization required. Basic unit is supplied without Dispersing Head.

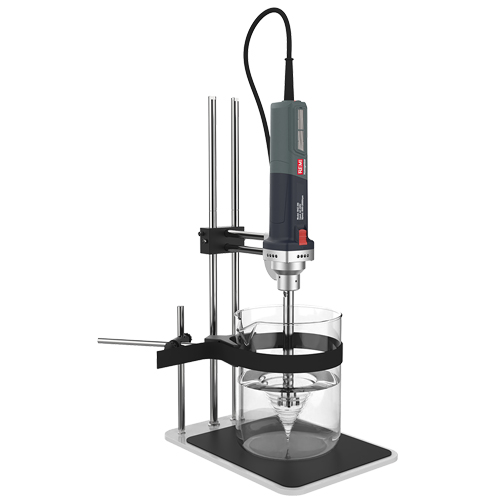

Salient Features for RHZ-300:
- Replaceable 3 Dispersing heads
- Twin Rods for stability
- Container holding belt with clamping bar
- Anti-slip stand
- Brushless DC Motor

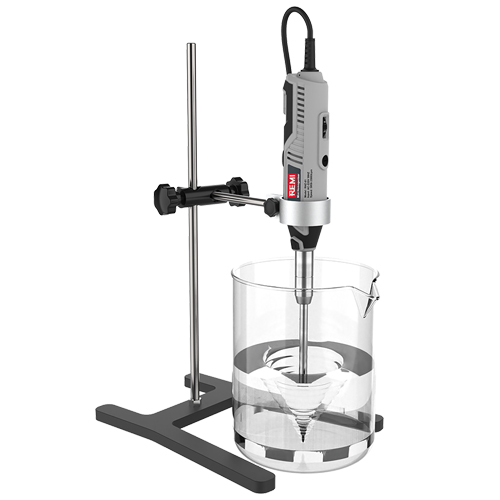

Salient Features for RHZ-01:
- Easy Replaceable 3 Dispersing Heads
- Powerful Motor
- Speed adjustment with help of wheel
- Ideal for Micro batch processing
| Technical Data | ||
| Model | RHZ-300 | RHZ-01 |
| Speed Control | 6 Steps with wheel | 6 Steps with wheel |
| Speed Range | 9000–28000 rpm | 5000–35000 rpm |
| Capacity | 150–10000 ml | 0.5–250 ml |
| Dispersing Head Material | 316 stainless steel | 316 stainless steel |
| Continuous working time | ≤ 10 min | ≤ 10 min |
| Power | 1300 W | 160 W |
| Dimension (WxDxH) | 350 × 250 × 650 mm | Ø50 × 355 mm |
Supply: 220–240 Volts, 50 Hz Single Phase

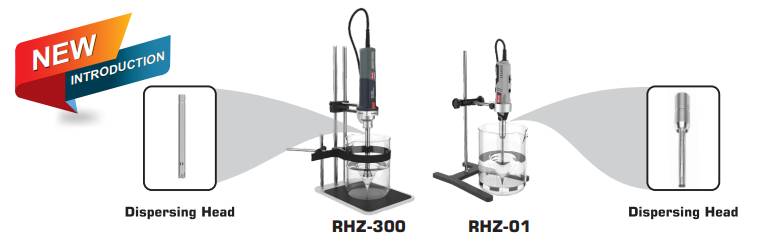

Dispersing Head for Homogenizer (RHZ-300)
| Dispersing Heads Options | RHZ-300-18 | RHZ-300-25 | RHZ-300-36 |
| Ø × Length (mm) | 18 × 225 | 25 × 225 | 36 × 225 |
| Capacity Range | 150~3000 ml | 250~5000 ml | 500~10000 ml |
| Speed Range | 10000~28000 rpm | 9000~28000 rpm | 9000~25000 rpm |
| Suitable Viscosity | 5000 mPa.s | 8000 mPa.s | 10000 mPa.s |
Dispersing Head for Mini Homogenizer (RHZ-01)
| Dispersing Heads Options | RHZ-01-06 | RHZ-01-08 | RHZ-01-10 |
| Ø × Length (mm) | 6 × 155 | 8 × 155 | 10 × 155 |
| Capacity Range | 0.5–50 ml | 1–100 ml | 5–250 ml |
