Blood Bank Centrifuge
Blood Bank Centrifuge

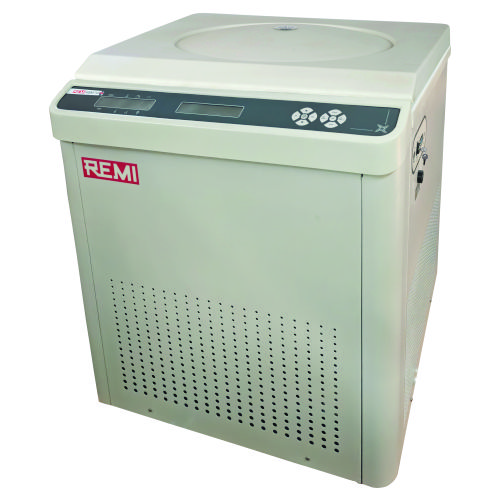

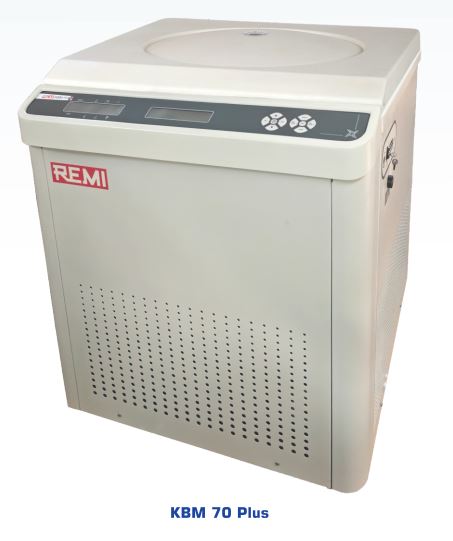

KBM 70 Plus is the new generation microprocessor controlled blood bank centrifuge with forward thinking design and technology. Ideally used for centrifugation of whole blood for components separation like packed red cells, platelet rich plasma, platelet concentrate, cryoprecipitate and buffy coat etc.
Advance manufacturing techniques are used for mounting of brushless induction drive motor in PUF insulated, corrosion free, stainless steel armored chamber, resulting in minimized vibration and noise level. The smooth acceleration / deceleration helps in clear separation thus ensuring high quality component yield.
The rotor is designed to accommodate specific type of aval shaped metal buckets & plastic carriers for holding six blood bags of different volumes & configuration like 350 ml/450mI, double/triple/quadruple, penta tags inline-filter (quintuple) blood tags.
User-friendly software 6 controle helps in ease of operation. There is a unique facilité for setting & controlling the centrifuge run either by RPM (speed) or RCF (g force) thus eliminating the need of manual calculations. Interactive Menu driven program guideS the operator‘ through the setting process of run parameters & also the operational status while centrifuge is running.
State of the art microprocessor controller equips KBM 70 Plus With programs memory, this includes special program along with four sub programs for sequential operations. There are 9 acceleration & 10 deceleration profiles including coasting for optimum yield under different applications. The KBM 80 Plus cornes with wide LCD display
Specially designed wind-shielded rotors reduces friction which helps in energy saving & better temperature management
Performance
- Speed holding accuracy +/- 10 RPM
- 9 acceleration & 10 deceleration profiles including coasting
- Temperature range from -10°C to +40°C
- Low noise level (≤ 55db)
- Choice of 2 wind-shielded rotors to process 8 & 12 blood bags per cycle
- Tropicalized to run from 0°C to 40°C & RH up to 95%
Leading Tecnology
- Brush-less induction motor with frequency drive, practically maintenance free
- Advanced user friendly microprocessor control
- 51 programs memory and pre cooling
- Sequential program of speed, time and temperature with four sub programs.
- Programmable centrifugation parameters for accurate control
- On board real time user data logging connectivity via RS 232 port.
- Dedicated software for data analysis / reports
User Friendly

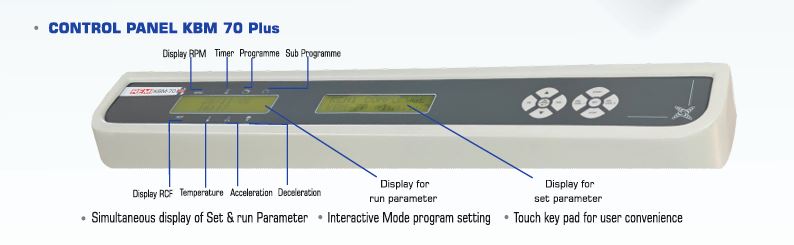

- Facility to set and indicate RPM or
- RCF Simultaneous display of set b run parameters
- Self-diagnosis of program errors
- Microprocessor controlled automatic lid opening with touch button
- Castor wheels with floor standing jacks for vibration free run
- Emergency lid opening provision in case of power failure
Safety
- Safety interlock to prevent lid opening during centrifugation
- Imbalance cut-off with indication
- Safety key lock to prevent unauthorized use
- Rotor over speed protection
- Alarms for imbalance, lid open,over temperature
- Tamper proof memory & last program recal

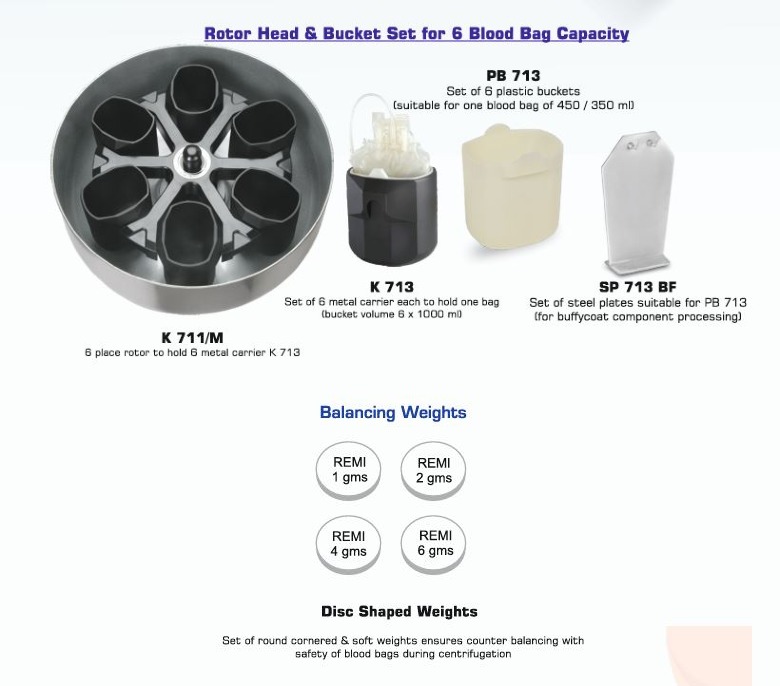

Blood Bank Rotor, Metal Buckets & Plastic Buckets.
Blood Bank Rotors, Metal Buckets & Plastic Buckets
REMI Provides Application Support for Quality Validation & Standard Results
| Technical specifications | ||
| Parameter | Unit | KBM 70 Plus |
| Process controls | Type | Touch key pad |
| Menu driven program | Nos | 51 |
| Acceleration profile | Steps | 1 - 9 |
| Deceleration profile | Steps | 1 - 9 & coasting |
| Max. speed | RPM | 4280 settable ±10 RPM |
| Max. RCF | g | 6000 |
| Max time | min | 0 - 99 min |
| Dimension ( W X D X H ) | mm | 840 X 940 X 950 |
| Recommended line voltage corrector | KVA | 6 |
| Compliance | EN 60601-1, EN 60601-1-2, CE | |
