Blood Bank Centrifuge

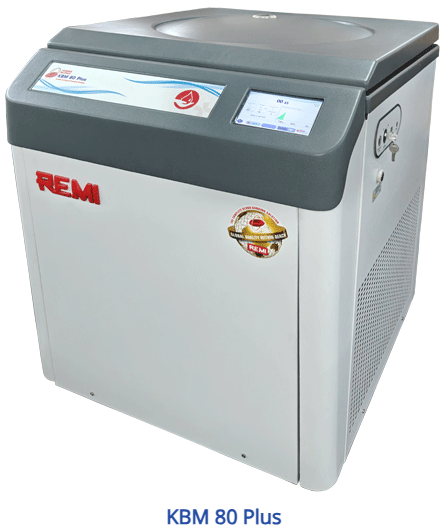

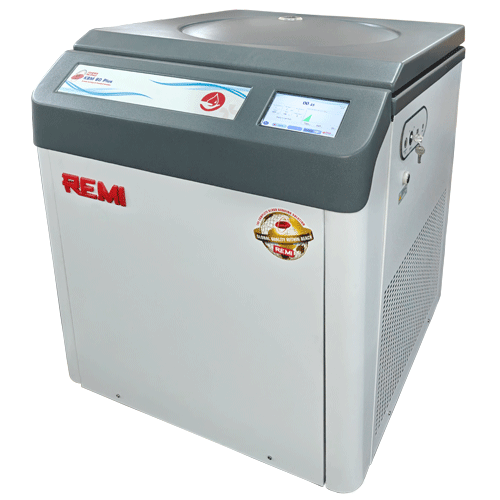

KBM 80 Plus is the new generation microprocessor controlled blood bank centrifuge with forward thinking design and technology. Ideally used for centrifugation of whole blood for components separation like packed red cells, platelet rich plasma, platelet concentrate, cryoprecipitate and buffy coat etc.
Advance manufacturing techniques are used for mounting of brushless induction drive motor in PUF insulated, corrosion free, stainless steel armored chamber, resulting in minimized vibration and noise level. The smooth acceleration / deceleration helps in clear separation thus ensuring high quality component yield.
This centrifuge cater to the requirements of small, medium & large blood centers with flexibility to choose from 2 rotor options. The rotors are designed to accommodate specific type of oval shaped metal buckets & plastic carriers for holding eight &twelve blood bags of different volumes & configuration like 350 ml / 450m1, double/ triple/ quadruple, penta begs & inhne-filter (quintuple) blood bags.
User-friendly software & controls helps in ease of operation. There is a unique facility for setting & controlling the centrifuge run either by RPM (speed) or RCF forte) thus eliminating the need of manual calculations. Interactive menu driven program guides the operator through the setting process of run parameters & also the operational status while centrifuge is running. Specially designed wing-shielded rotors reduces friction which helps in energy saving & better temperature management.

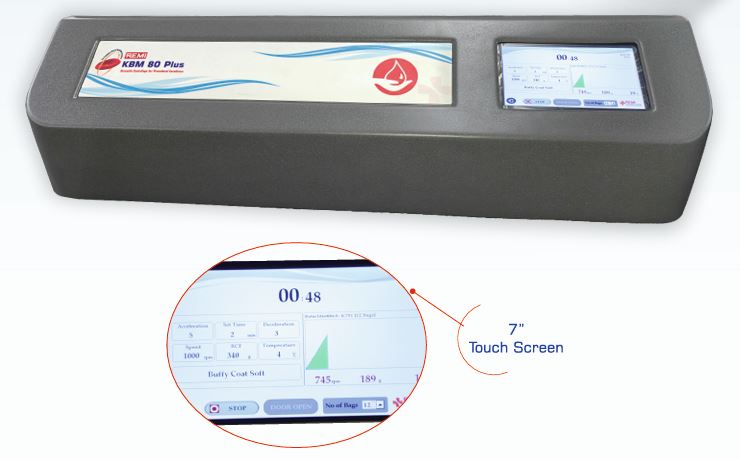

KBM 80 Plus comes with microprocessor controlled advanced HMI Touch Screen
Features of Touch Screen
- Facility to set 20 user profiles with identical password protected access
- Protected admin control for key parameters
- Display of realtime run graph with display set & run parameter
- Gloves friendly touch screen operation with option to connect with wireless mouse
- Onscreen manual, Troubleshooting & process guide
Performance
- Speed holding accuracy +/- 10 RPM
- Multiple acceleration & deceleration profiles
- Temperature range from -20°C to +40°C
- Low noise level (≤ 55db)
- Choice of 2 wind-shielded rotors to process 8 & 12 blood bags per cycle
- Tropicalized to run from 0°C to 40°C & RH up to 95%
Leading Tecnology
- Brush-less induction motor with frequency drive, practically maintenance free
- Advanced user friendly microprocessor control
- Programmable centrifugation parameters for accurate control
- Onboard real time user data log in with password protection
- dedicated software for data analysis / PDF Reports, connectivity with USB
- Auto-adjustable effective centrifugal force irrespective of rotor load
User Friendly
- Facility to set and indicate RPM or RCF
- Simultaneous display of set & run parameters
- Self-diagnosis of program errors
- Microprocessor controlled automatic lid opening with touch button
- Log of 1000 run records on Touch screen
- Display of real time & Date
- Castor wheels with floor standing jacks for vibration free run
- Emergency lid opening provision in case of power failure
- Auto compressor cut off on lid opening
Safety
- Automatic lid interlocking and unlocking
- Imbalance cut-off with indication
- Safety key lock to prevent unauthorized use
- Rotor over speed protection
- Alarms for imbalance, lid open, over temperature
- Password protection for authorized access
- Tamper proof memory & last program recall
- Automatic Rotor identification & indication
- Automatic recovery of process in case of power interruption ‘Catch On Fly”.
Easy Setup Programming & Monitoring
| Technical Specifications | ||
| Parameter | Unit | KBM 80 Plus |
| Process controls | Type | HMI Touch screen |
| Menu driven program | Nos | 400 |
| Acceleration profile | Steps | 1-15 |
| Deceleration profile [incl. coasting] | Steps | 1-15 |
| Max. speed | RPM | 4200 settable ±10 RPM |
| Max. RCF | g | 6300 |
| Max time | hh:min | 0 to 99 hr 59 min 59 sec, Hold function |
| Compatible Rotors | Code | K 741e / K 751e |
| Dimension (W X D X H) | mm | 840 X 940 X 950 |
| Compliance | IEC 61010-2-020:2016, IEC 61010-1:2016, EN 60601-1, EN 60601-1-2, CE, US FDA | |
Optional: Servo controlled voltage stabilizer
Supply : 220-240 volts, 50Hz, Single phase

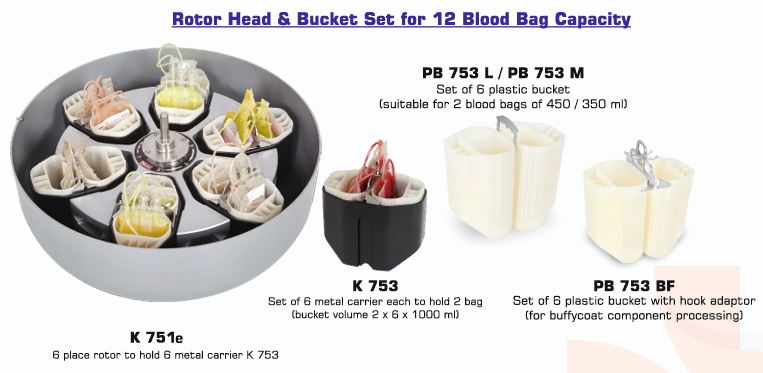

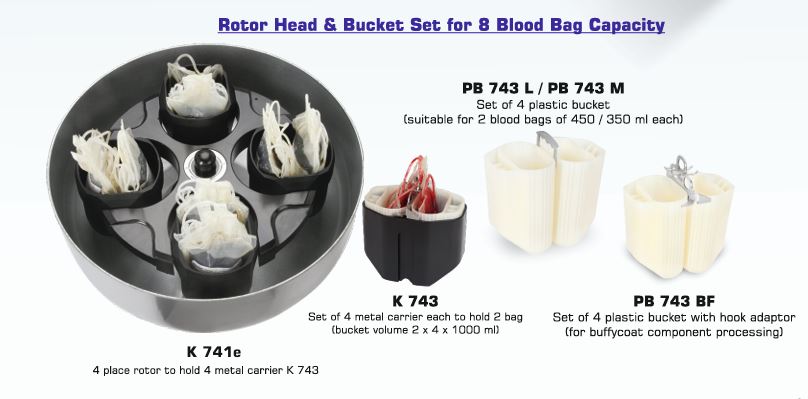

Blood Bank Rotors, Metal Buckets & Plastic Buckets
Data Acquisition System
These centrifuges have inbuilt system to collect & store all data related to centrifugation process like operator code, process type. time. temp. RPM. RCF. acceleration. deceleration & process status etc. The data from the centrifuge can be transferred to a computer using a data interface. This data can be used by blood centers for quality analysis S control.
REMI KBM 80 Plus meets the component separation guidelines by AABB & OCHS
|
Important Parameter for Quality Components |
Procedural Requirements (as per AABB & DGHS manual)* |
Technical Features KBM 80 Plus |
| Centrifugal Force (RCF) |
5000 g Heavy spin - Max. RCF |
Up to 6300 g |
| Temperature Range |
Need temperature 22°C±2°C to run PRP method & Buffycoat method, 4°C to run FFP & Cryoprecipitate method |
Achieves both desired temperature of 22°C & 4°C with accuracy of ±1°C along with setting range of -20°C to +40°C |
| Calibration |
Must be calibrated for speed & Time for various component preparation |
Special eyelet window for quick calibration |
| Imbalance |
Contents in opposing cups must be equal in weight to improve centrifuge efficiency |
Imbalance Cutoff with indication to ensure component quality as well as safety |
° AABB Technical Manual. 15th edition; 2005: Table 7.4.1. Centrifugation for Component Preparation; pg.827
° Transfusion Medicine Technical Manual OCHS, 2nd edition: 2003, Blood component preparation B Use, pg. 195′
Need of Centrifuge Optimization for Quality Enhancement
Each individual centrifuge must be evaluated for the preparation of the various components.
AABB Technical Manual. 15th edition; 2005: Table 7.4.1. Centrifugation for Component Preparation; pg.827
Centrifugation Variables : Centrifugation speeds (relative centrifugal force) and times should be standardized for each piece of equipment.
AABB Technical Manual, 15th edition; 2005; General & laboratory Methods Centrifugation Variable; pg.716
High g forces are of theoretical concern because they may damage the platelets when they are forced against the wall of the container.
AABB Technical Manual, 15th edition: 2005; Methods Section 6; Blood Collection, Storage, and Component Preparation; pg 817
REMI Provides Application Support for Quality Validation & Standard Results
