REMI Laboratory Refrigerators are designed for storage applications in pharmaceutical, microbiology, biotechnology, chemical, clinical diagnostic, hospitals & research institutions. The unit is supplied with a glass door with key lock for convenient sample viewing, forced air circulation system ensures uniform temperature throughout the chambers. Microprocessor controller is provided for display of internal temperature along with alarm systems
Salient Features:
- Inner & Outer body pre painted G. I.
- RLR Models with LED display
- Serocool Models with 4” LCD display
- Energy efficient CFC free refrigeration
- Uniform cooling by forced air circulation & frost free
- Adjustable Plastic coated wire mesh shelves
- Clear product visibility with full length triple glass door
- Automatic Defrosting
- Alarms: High/Low temperature variation
- Auto door closure
- Built in voltage stabilizer
- Battery backup for temperature display & alarm for over 8 Hrs (in Serocool)

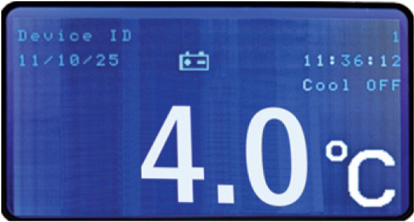

LCD Display:
Features
• 4 Inch attractive LCD display • Intelligent Controller helps maintain in case of sensor failure • Battery Backup H DOOR OPEN 04.0°C for Temperature Controller • Auto tuning of controller • Self-Diagnosis for errors • Histogram format of 24 Alarm • Remote Alarm Output hours temperature recording • Settable High / low alarm points • Memory of upto 1000 records • Audio Visual
Remi ‘Datasoft’ Data acquisition software with password protection, secured audit trail, alarm status in tabular and graphical format included
| Technical Data | ||||

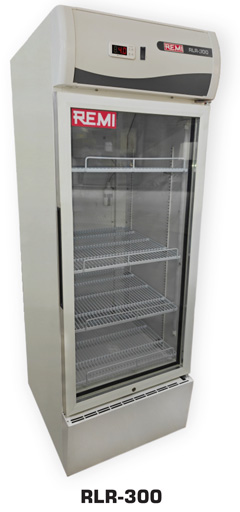

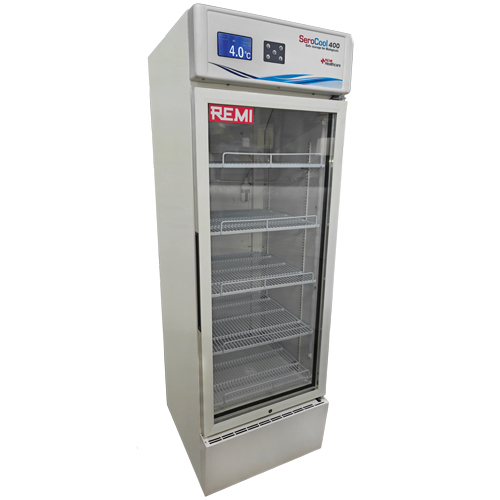

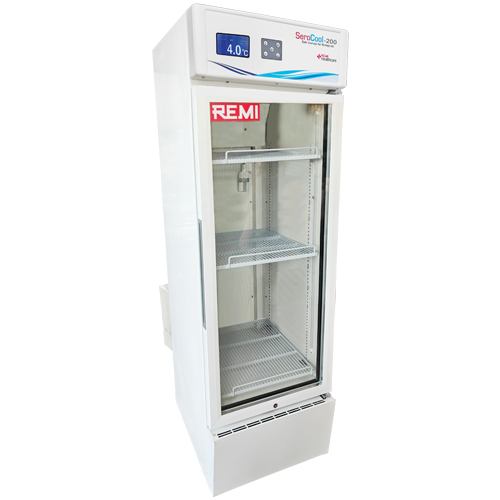

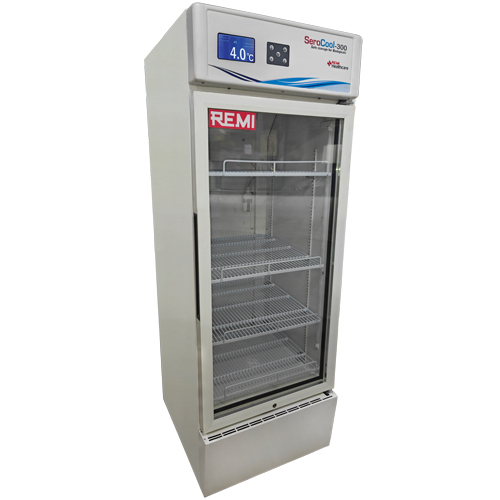

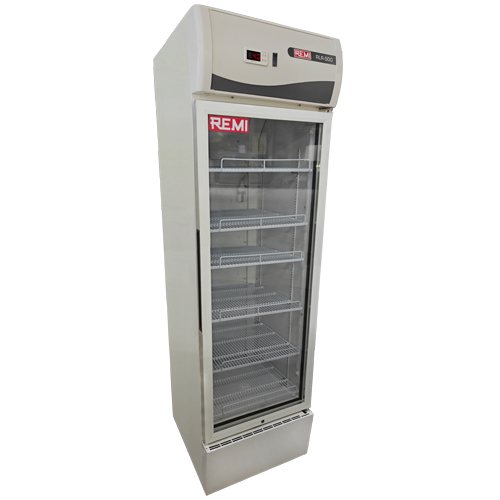

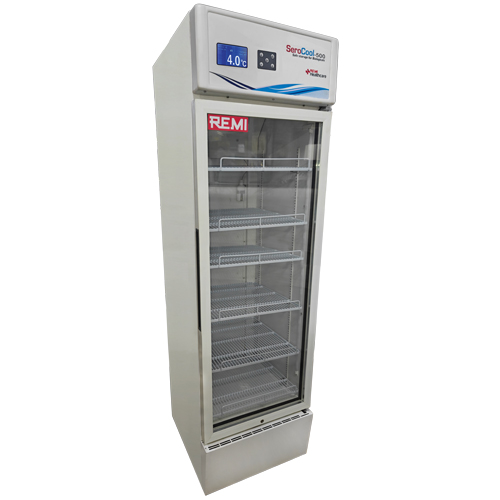

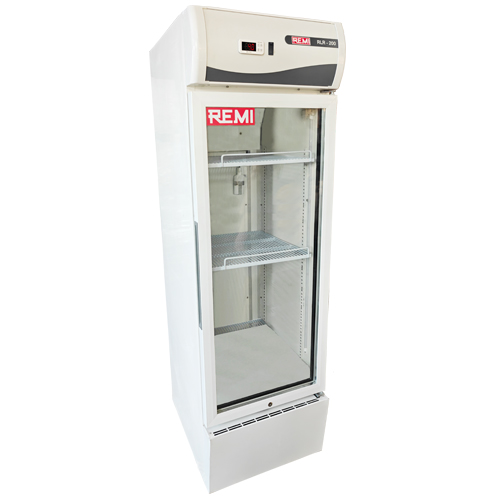

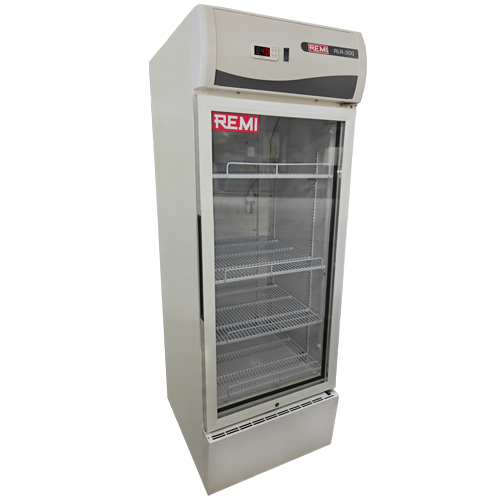

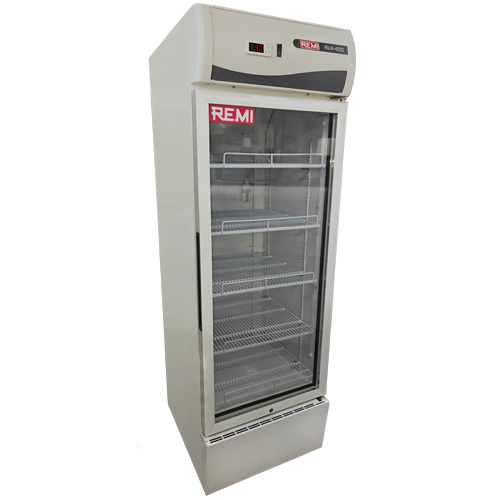

| Model | RLR-200 SeroCool 200 | RLR-300 SeroCool 300 | RLR-400 SeroCool 400 | RLR-500 SeroCool 500 |
| Capacity (Litres) | 200 | 300 | 400 | 500 |
| Temperature Range | 1° C ~ 10 ° C (Uniformity ± 2° C) | |||
| No. of Door (Glass) | 1 | 1 | 1 | 1 |
| Display | LED (RLR Models)/4”LCD (Serocool Models) | |||
| No. of Shelves | 3 | 4 | 5 | 6 |
| Internal Dimension (WxDxH) (mm) | 420x485x1243 | 500x540x1384 | 500x540x1634 | 560x608x1690 |
| External Dimensions (WxDxH) (mm) |
500x726x1660 | 585x781x1792 | 583x781x2053 | 640x851x2135 |
Supply: 220-240 Volts, 50 Hz Single Phase.
