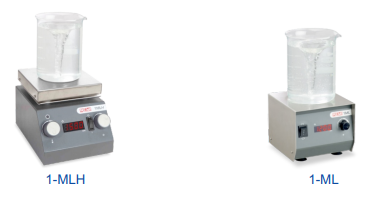

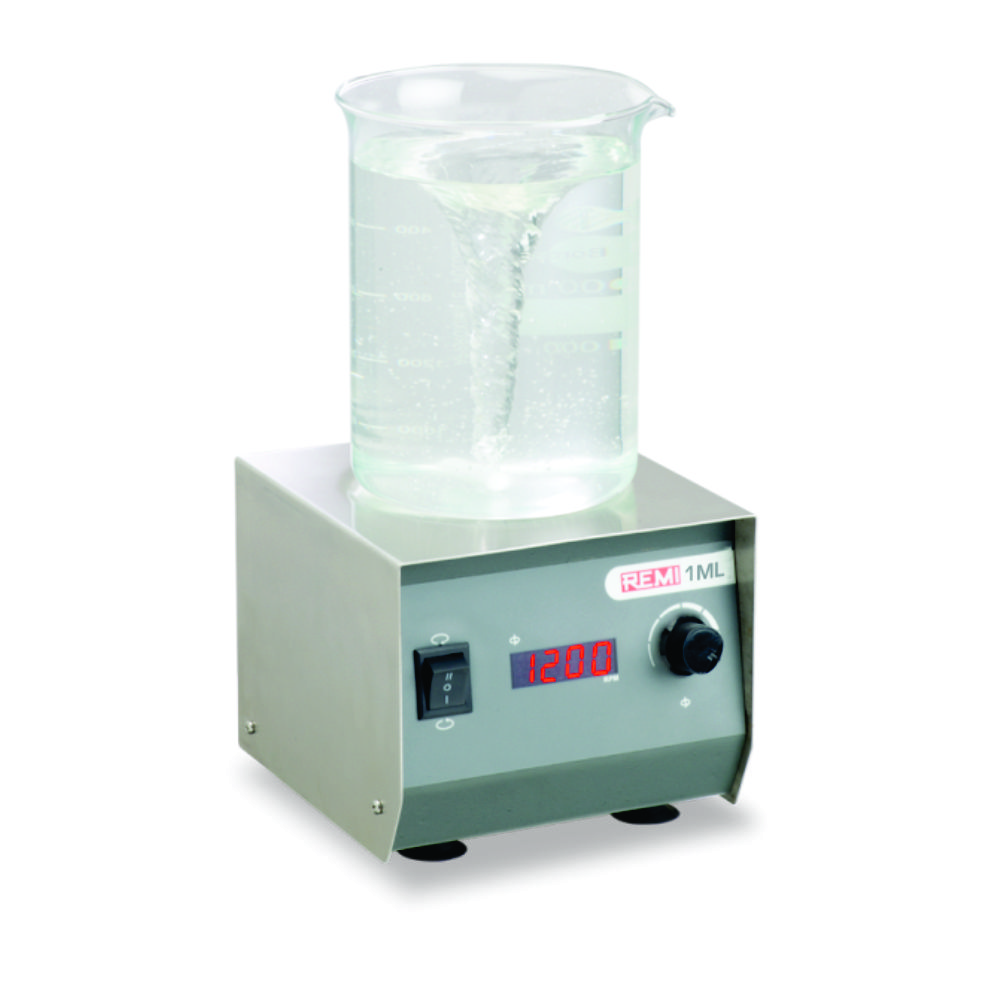

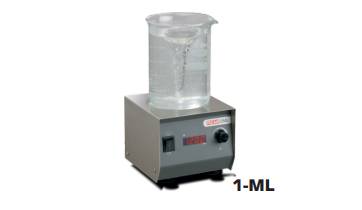

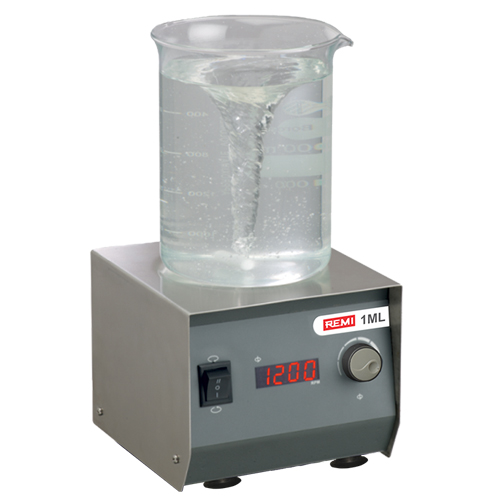

1-ML

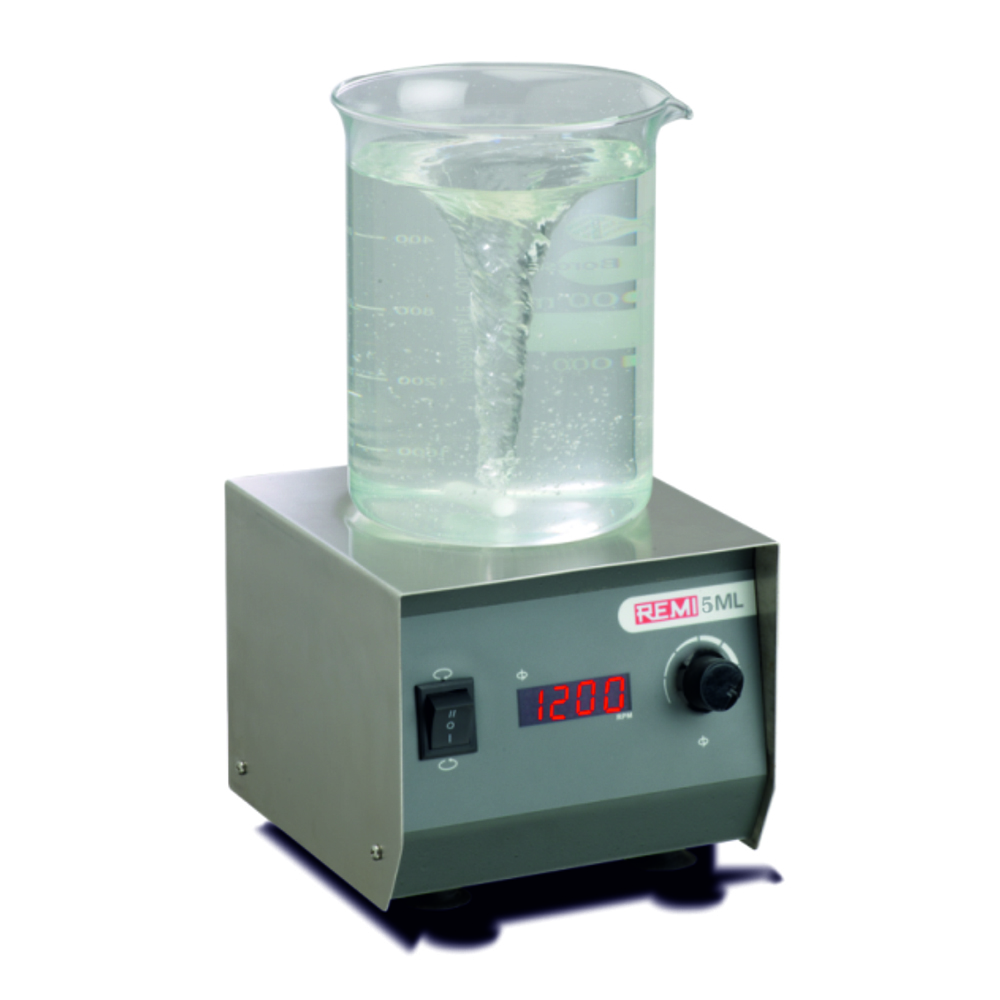

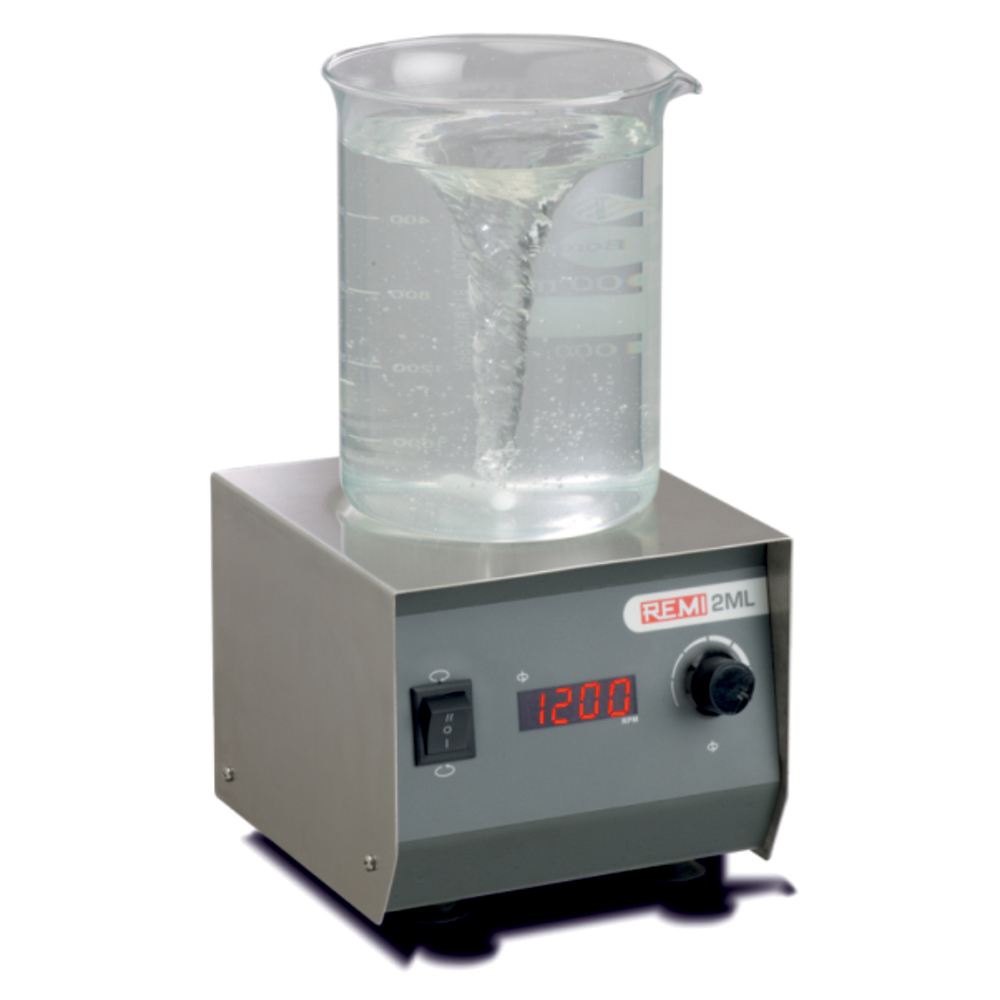

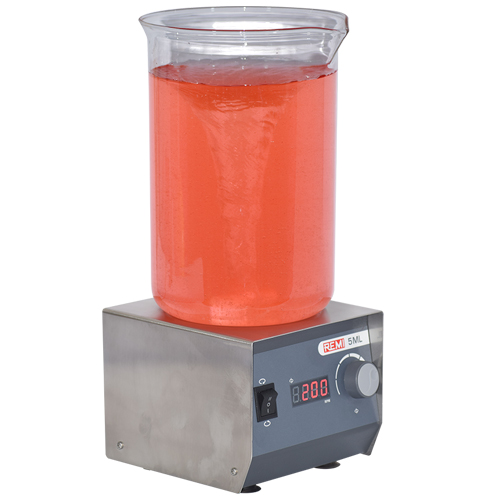

Magnetic Stirrers “ML” series of Magnetic Stirrers with stainless steel top housing are most compact models. Permanent Magnet DC (PMDC) motor gives high torque even at lower speeds and maintains speed stability despite viscosity or volume changes.

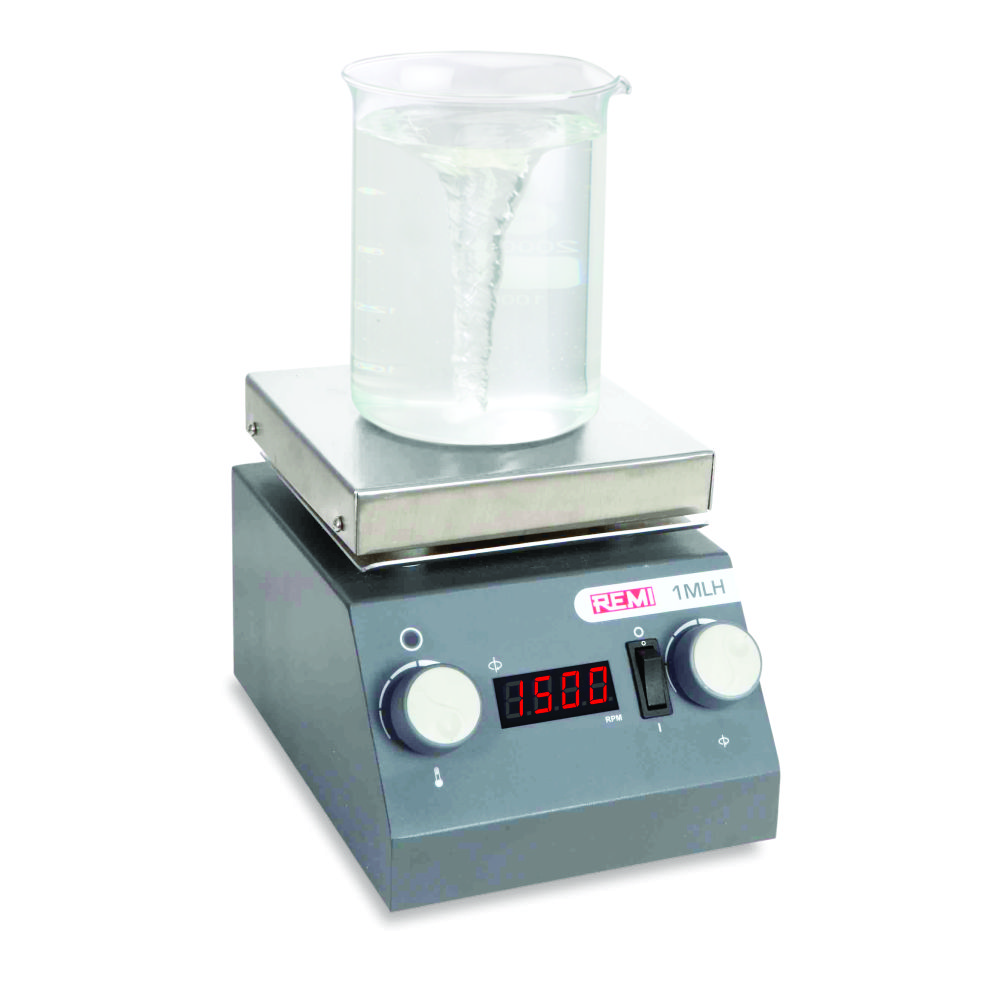

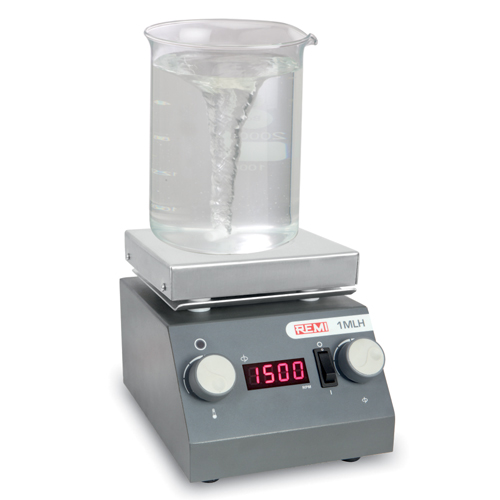

1-MLH
Accurate stepless speed control with digital display allows smooth variation up to 1200 rpm.

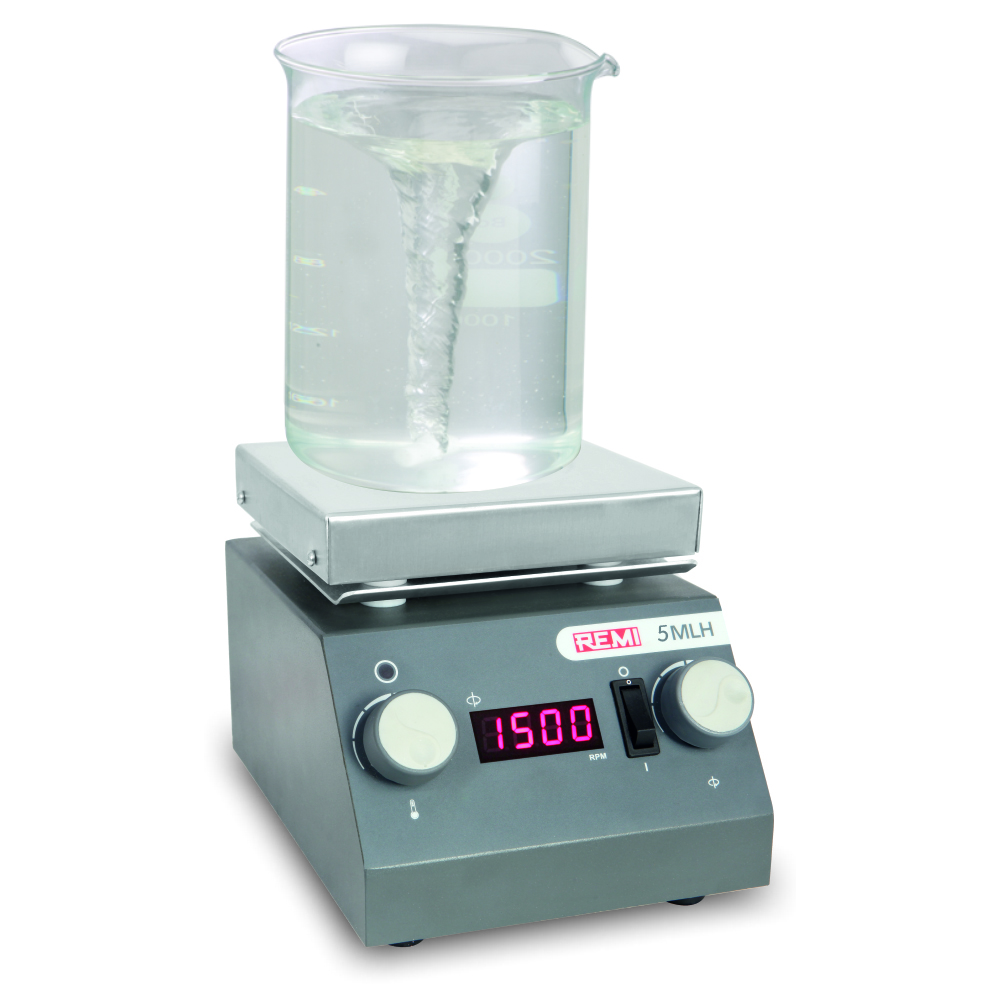

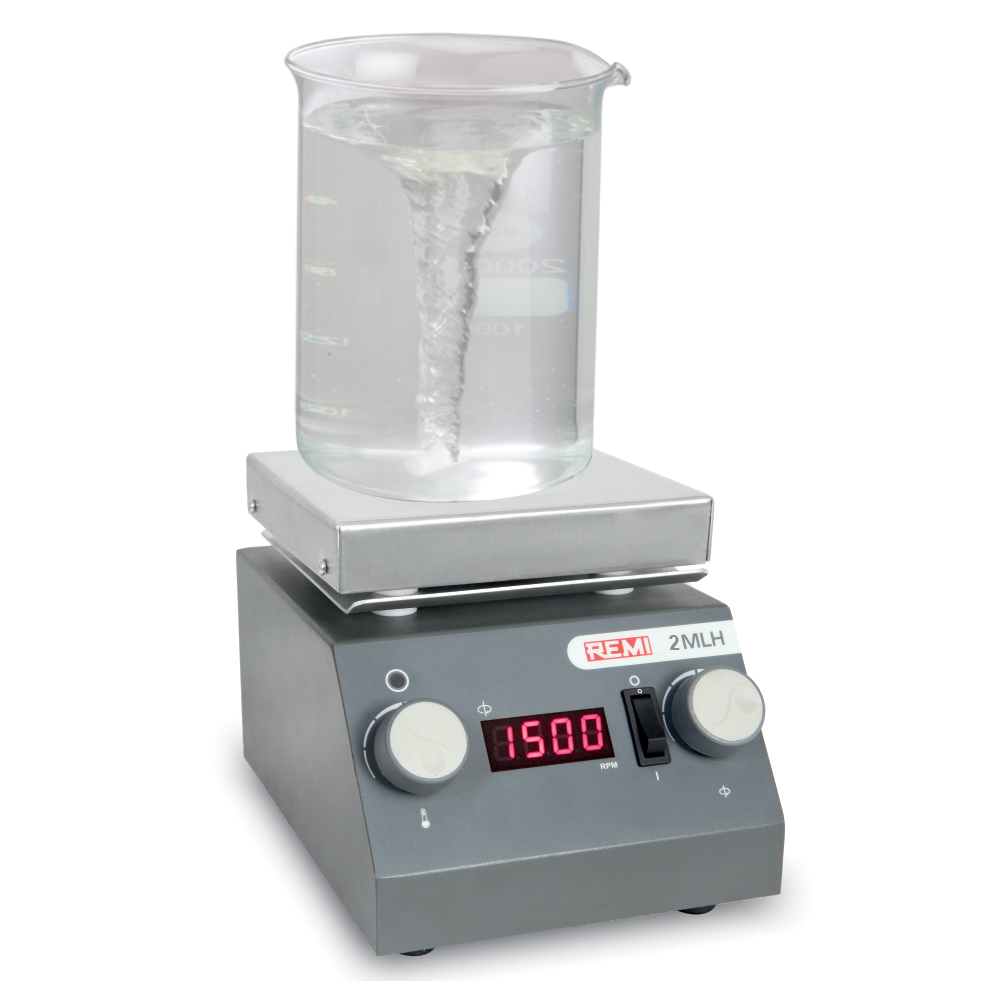

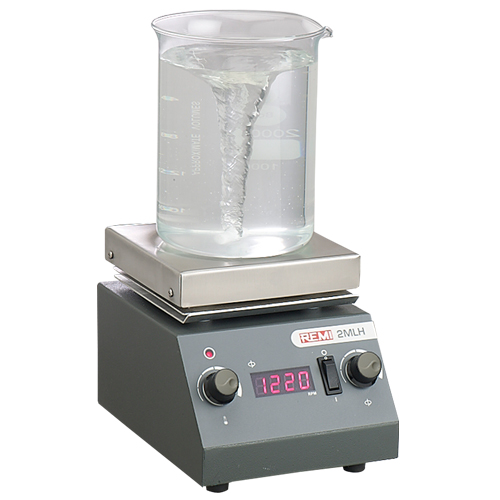

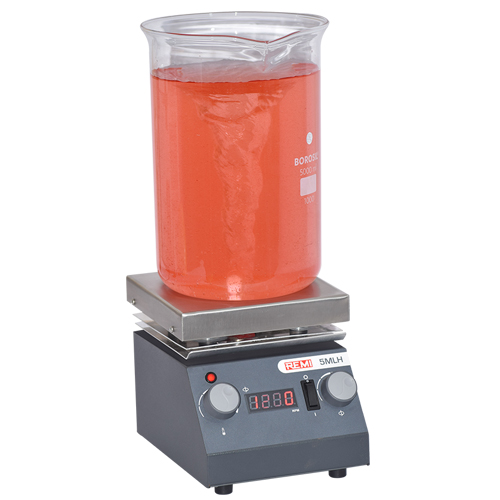

“MLH” series Magnetic Stirrers with hot plate are similar to the ML series of magnetic stirrers but have additional stainless steel hot plate. Heat energy is controlled by energy regulator.
| Technical Data | |||||||

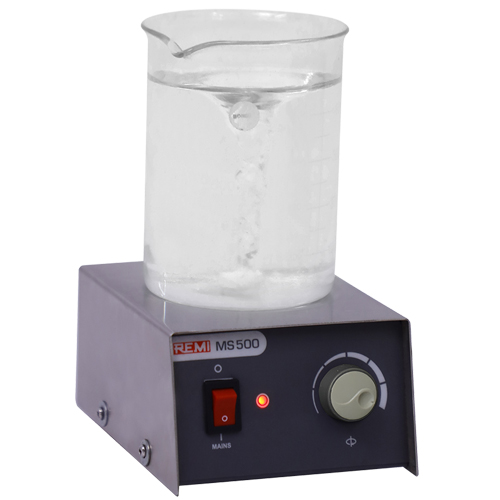

| Model | MS-500 | 1-ML | 2-ML | 5-ML | 1-MLH | 2-MLH | 5-MLH |
| Max, stirring Capacity (Water) (Liters) | 500 ml | 1 | 2 | 5 | 1 | 2 | 5 |
| Heating power (W) | - | - | - | - | 150 | 300 | 500 |
| Dimension of Top Plate (mm) | 105 x 135 | 180 x 200 | 180 x 200 | 180 x 200 | 175 x 230 | 175 x 230 | 180 x 230 |
| Stirring Paddle (PTFE coated) (mm) | Q-18A (7 x 15) |
Q-19A (9 x 25) |
Q-19A (9 x 35) |
Q-20A (13 x 50) |
Q-19A (9 x 25) |
Q-19A (9 x 35) |
Q-20A (13 x 50) |
| Speed range (rpm) | 100-1500 | 100-1500 | 100-1500 | 100-1500 | 100-1500 | 100-1500 | 100-1500 |
| Speed display (LED) | NO | YES | YES | YES | YES | YES | YES |
| Top Plate Material | Stainless Steel 304 grade | ||||||
| Dimensions (W x D x H) (mm) |
105x135x70 | 180 x 200 x 160 | 180 x 200 x 160 | 180 x 220 x 150 | 175 x 230 x 175 | 175 x 230 x 175 | 180 x 230 x 180 |
Supply: 220-240 Volts 50 Hz Single Phase.

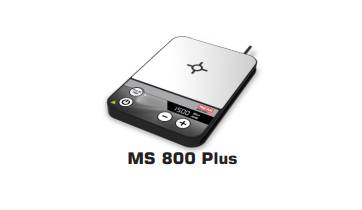

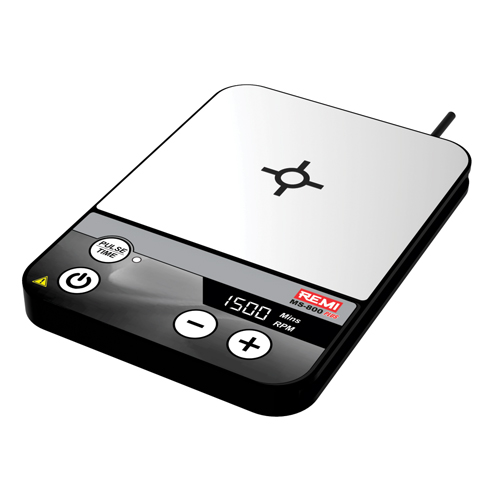

Ultra – flat compact magnetic stirrer. Wear – free with no moving parts. To ensure better mixing, the lab disc can reverse direction of rotation automatically every 30 seconds
Salient Features:
- No moving parts – truly maintenance free
- Digital Display of Speed
- Microprocessor controlled with last run memory feature
- Pulse mode – reverses the direction every 30 secs for proper mixing
- Corrosion resistant SS top surface to fight harsh chemicals
- Supplied with 1 (one) high strength 25mm stir bar
| Technical Data | |
| Specifications | MS-800 Plus |
| Speed Range | 50-1500 RPM |
| Load capacity (Water) | 800 ml |
| Recommended Stir bar length | 25 mm |
| Last run memory | Yes |
| Dimensions (W X D X H) | 120 x 164 x 12 mm |
| Protection Class | IP 65 compliant design (Water spill resistant) |
Remi presents the next generation of magnetic stirrers with new stir technology.
Salient Features :
- Different models for stirring up to 20 ltrs
- Speeds range 150 – 1500 rpm
- Easy to read backlit LCD for display of set & actual parameters
- Monitoring of set & actual speed
- Advanced Stirrers with microprocessor technology.
- Constant speed even with change of load/ Voltage
- Maintenance free brushless motor
- Scratch proof & excellent chemical resistance
- Last parameter recall, ideal for repetitive processes
- Ceramic coating on top plate for improved corrosion resistance (3 MLPlus & 6 MLPlus)
- Countdown timer
| Technical Data | |||
| Models | 3-ML PLUS | 6-ML PLUS | 20-ML PLUS |
| Power (W) | 50 | 50 | 50 |
| Max, stirring quantity (Water) (Liters) | 3 | 6 | 20 |
| Stirring Paddle (PTFE coated) | Q-19A (9 X 35mm) | Q-20A (13 x 50 mm) | Q-20A (13 X 50mm) |
| Speed range (rpm) | 150-1800 | 150-1500 | 150-1500 |
| Speed / Temperature display | LCD | ||
| Speed display resolution (rpm) | 1 | ||
| Top Plate Material | Aliminium Alloy | Aliminium Alloy | Stainless Steel |
| Coating on Top Plate | Ceramic | Ceramic | |
| Dimension of Top Plate (mm) | φ 154 | 157 x 157 | 300 x 350 |
| Timer | 00:01 to 99-59 (Hr:Min) and Continuous Mode | ||
| Dimensions (W x D x H) (mm) | 169 x 290 x 105 | 169 x 290 x 105 | 300 x 350 x 100 |
| Protection class acc. To DIN En60529 | IP 21 | IP 21 | - |
Supply: 220-240 Volts, 50 Hz Single Phase.
