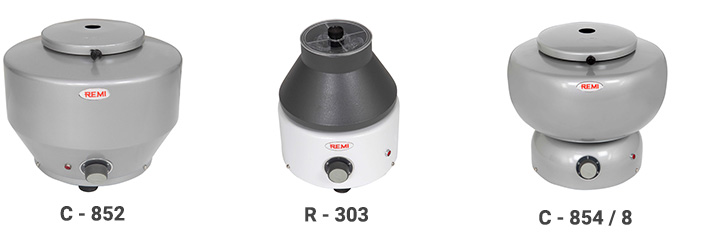

Medico / Doctor Centrifuge
These are low priced units meeting the majority of the small capacity centrifuging equirements of medical practitioners, pathological laboratories and hospitals for
routine centrifuging tests.
The units are fitted with resiliently mounted motor for vibration free performance having built in 5 step speed regulator. Available with Swing out or Angle rotor.
| Technical Specifications | ||||||

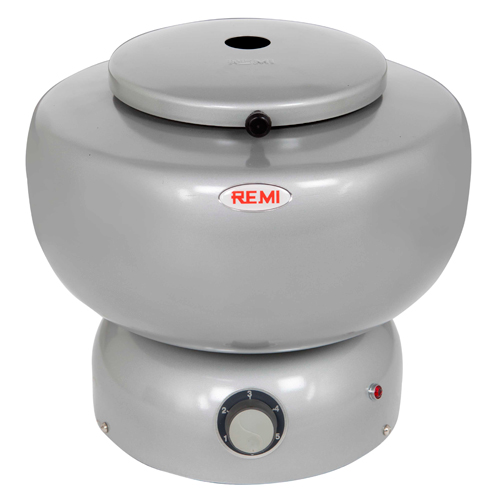

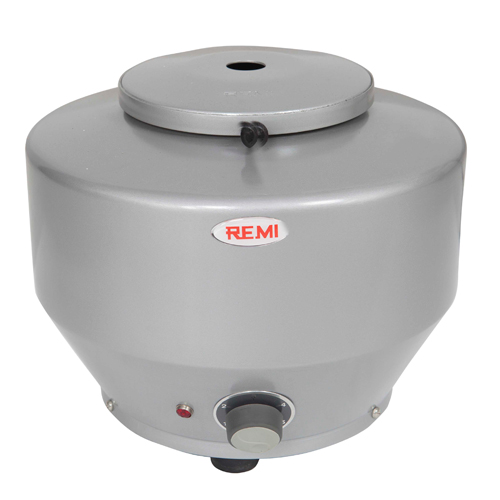

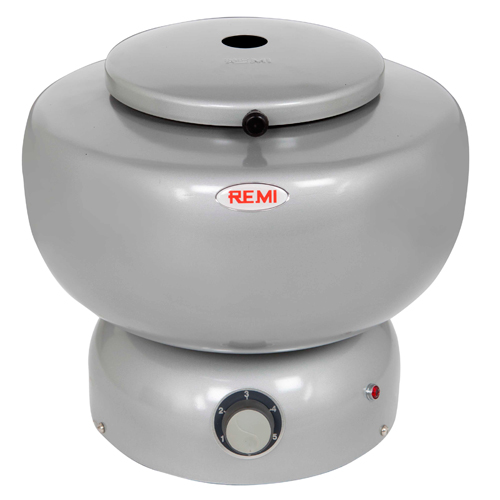

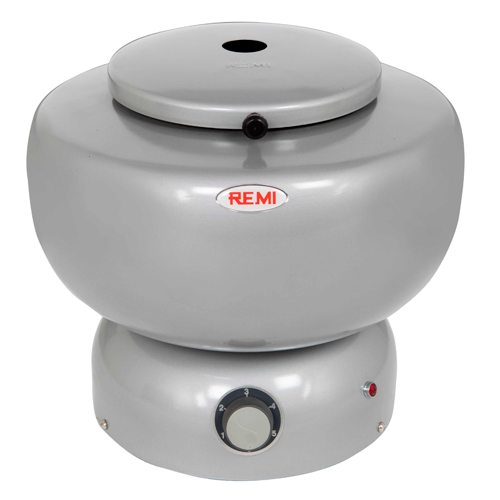

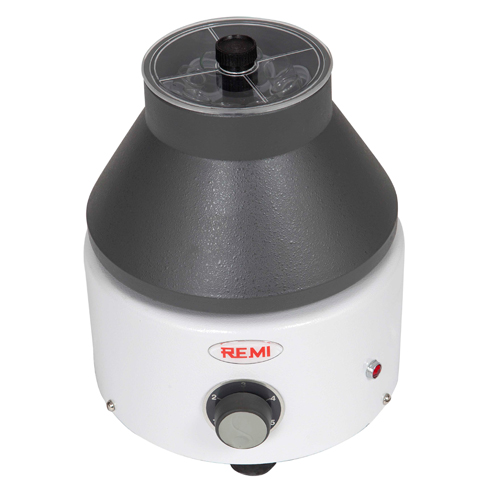

| Parameters | C-852 | C-854/4 | C-854/6 | C-854/8 | R-303 | R-304 |
| Capacity (ml) | 4 × 15 | 4 × 15 | 6 × 15 | 8 × 15 | 8 × 15 | |
| Type of Rotor | Swing Out | Angle | ||||
| No. of Tubes | 4 | 4 | 6 | 8 | 8 | |
| Max. Speed (RPM) | 3500 | 3500 | 3500 | 3500 | 3800 | |
| Max. RCF ('g') | 1750 | 1850 | 1600 | 1600 | 1450 | |
| W × D × H (mm) | 295 × 295 × 250 | 310 × 310 × 295 | 210 × 210 × 250 | |||
| Supply: 220-240 Volts, 50 Hz Single Phase. | ||||||
