Medico / Doctor Centrifuges
These are low priced units meeting the majority of the small capacity centrifuging requirements of medical practitioners, pathological laboratories and hospitals for routine centrifuging tests.
The units are fitted with resiliently mounted motor for vibration free performance having built in 5 step speed regulator. Available with Swing out or Angle rotor.
| Technical Data | ||||||

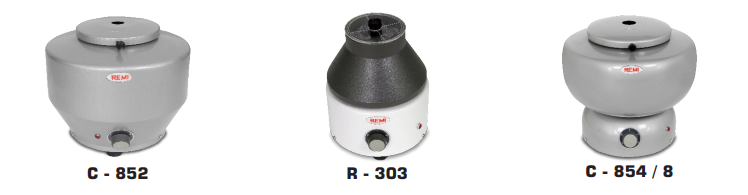

| Model | C-852 | C-854/4 | C-854/6 | C-854/8 | R-303 | R-304 |
| Capacity (ml) | 4x15 | 4x15 | 6x15 | 8x15 | 8x15 | |
| Type of Rotor | Swing Out | Angle | ||||
| No. of Tubes | 4 | 4 | 6 | 8 | 8 | |
| Max. Speed (RPM) | 3500 | 3500 | 3500 | 3500 | 3800 | |
| Max. RCF (’g’) | 1750 | 1850 | 1600 | 1600 | 1450 | |
| W x D x H (mm) | 295 x 295 x 250 | 310 x 310 x 295 | 210 x 210 x 250 | |||
Supply: 220-240 Volts, 50 Hz Single Phase.
Compact Laboratory Centrifuges

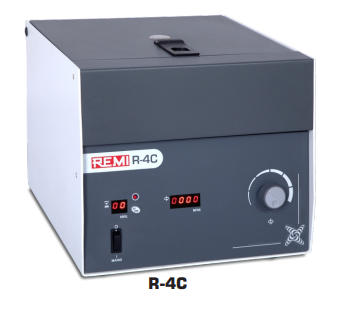

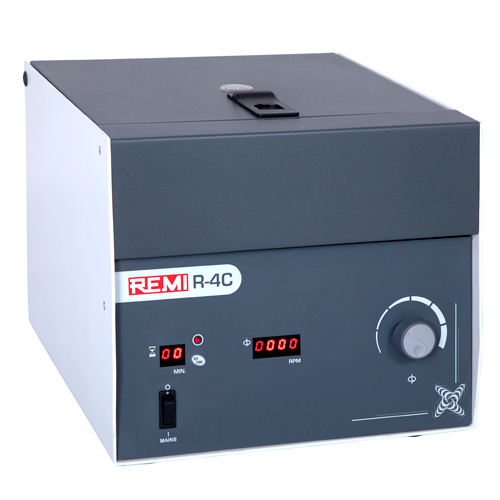

R – 4C Compact model for routine work in medical and industrial laboratories has digital speed indicator and 0-60 minute digital countdown timer.
Salient Features :
- Stepless speed regulator
- Safety Lid interlock to prevent cover opening during centrifugation
- Wide choice of Swing out / Angle rotors and reduction adaptors
| Technical Data | ||
| Model | R-4C | |
| Max. Speed | rpm | 4400 |
| Max. RCF | ‘g' | 2350 |
| Max. Capacity | ml | 200 |
| W x D x H | mm | 330 x 370 x 295 |
Supply: 220-240 Volts, 50 Hz Single Phase.
