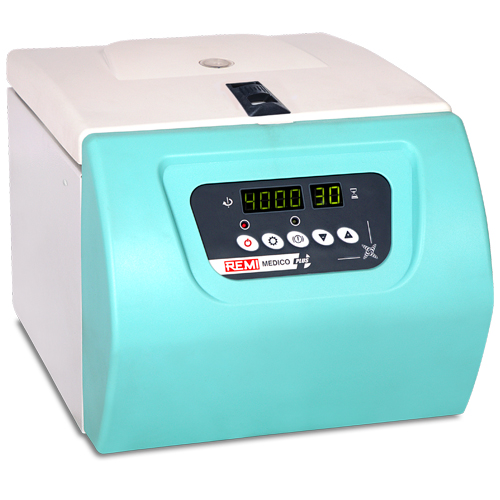

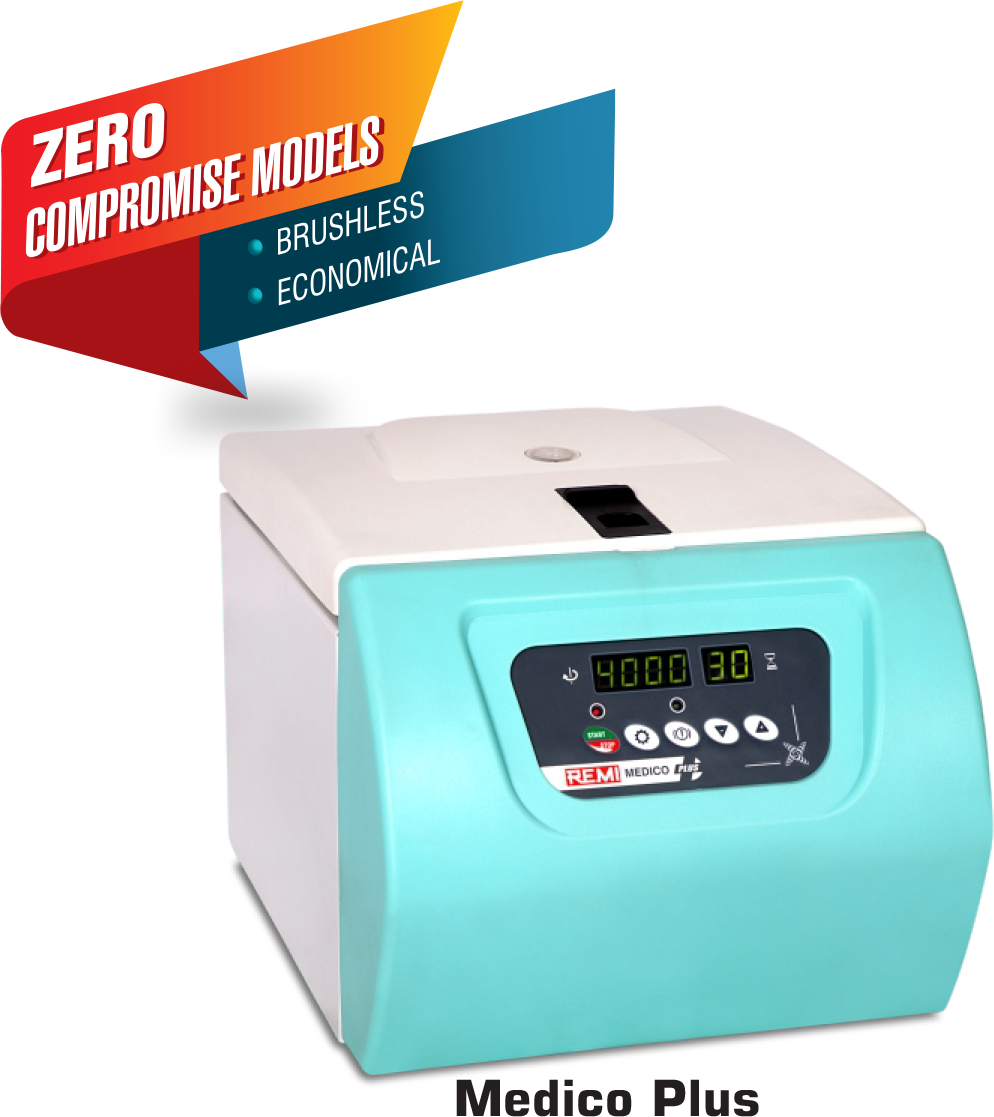

The most popular model is now available with brushless motor, door safety interlock, digital speed indicator and timer. Ideal for routine centrifuging requirements of medical practitioners, diagnostic laboratories and hospitals.
Salient Features :
- Brushless induction motor
- Speed control through VFD
- Microprocessor controller
- Feather touch keys
- Smooth and soft start
- LED display
- Lid interlock
- Dynamic brake
- Imbalance detection
- Emergency lid opening
- Accurate speed ±10 RPM
- Timer upto 99 minutes
- Last parameter recall
- Calibration window
- Eligant lid and front panel
- Choice of swingout / Angle rotors
Nomenclature method of Rotors
| Alphabets in beginning | Numbers in middle |
| A= Fixed angle rotor | 1st numerical = Quantity per insert |
| S= Swing out rotor | 2nd numerical = Tube capacity (ml) |
| Technical Data | ||
| Models | Medico Plus | |
| Capacity | ml | 300 ml |
| Max. Speed | RPM | 4000 |
| Max. RCF | 'g' | 2380 |
| W X D X H | mm | 320 x 420 x 280 |
Supply: 220-240 Volts, 50 Hz Single Phase.
Rotors are supplied with suitable SS tubes as carriers
| Image of Swing OutRotors |  |
 |
 |
| Model | SM 4-50 | SM 8-15 | SM 6-15 |
| Max speed RPM | 4000 | 4000 | 4000 |
| Max RCF (g) | 2220 | 2370 | 2380 |
| Image of Tube |  |
 |
 |
| Tube Capacity (ml) | 50 | 15 | 15 |
| Type of Tube | Glass | Glass | Conical |
| Insert or Cushion No. | C 50R Included | C 15R Included | C 15F |
| No of tubes/Insert | 1 | 1 | 1 |
| No of tubes/rotor | 4 | 8 | 6 |
| Ø x L (mm) | 30 x 110 | 17 x 110 | 16.5 x 120 |
| Tubes supplied | Yes | Yes | No |
| Image of Angle Rotors |  |
 |
 |
 |
 |
 |
||||
| Model | AM 36-5 | AM 6-50 | AM 12-15 | AM 8-15 | AM 18-10 | AM 20-5 | ||||
| Max Speed (RPM) | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | ||||
| Max RCF (g) | 2040 | 2160 | 2180 | 2180 | 2090 | 2090 | ||||
| Image of Tube |  |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Tube Capacity (ml) | 5 | 5/7 | 50 | 50 | 50 | 15 | 15 | 15 | 10 | 5/7 |
| Type of Tube | Glass | Blood Collection Tube (Short) | Plastic | Conical | Glass | Conical | Glass | Conical | Blood Collection Tube | Blood Collection Tube (Long) |
| Insert or Cushion No. | No | No | C 50R Included | C 50F | C 50R Included | RE 50-15FR ( OLD – RA-501F ) | C 15R Included | C 15F | No | No |
| No. of Tubes / Insert | - | - | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
| No. of Tubes / Rotor | 36 | 36 | 6 | 6 | 6 | 6 | 12 | 8 | 18 | 20 |
| Ø × L (mm) | 12×75 | 12.5 x 81 | 30 x 100 | 29 x 116 | 30 x 110 | 16.5 x 120 | 17 x 110 | 16.5 x 120 | 15.5 x 106 | 15.5×106 |
| Tubes Supplied | No | No | Yes | No | No | No | Yes | No | No | No |
