Vortex Mixer / Cyclomixer is a compact, high-speed mixing device designed for rapid and efficient mixing of samples, making it an essential tool for modern laboratories.
The variable speed microprocessor control provides consistent uniform mixing action
LCD Display : Touch pad controls with easyto-read, independent LCD displays for speed and time allow operator to view both settings at once.
Pulsing Mode : Programmable pulsing mode allows user to adjust the pulse-on and pulse-off times between 1 and 59 seconds in 1 second intervals.
Optional : 50 ml adaptor (15x50ml) also available on request

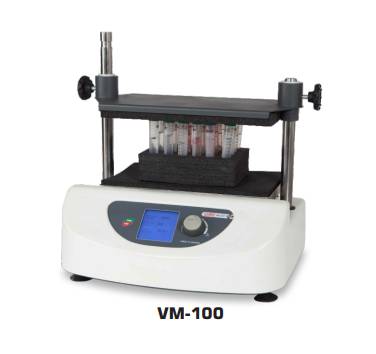

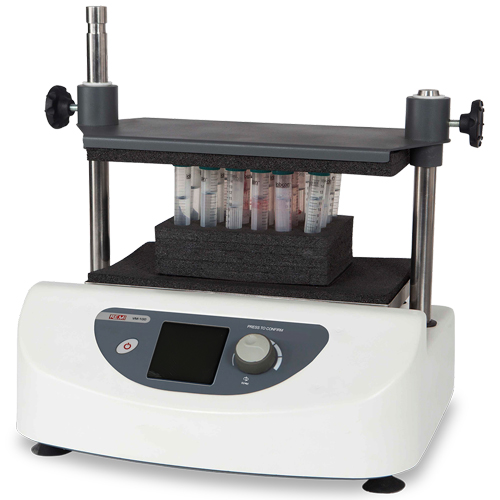

The Multi-Tube Vortexer is designed for mechanical and chemical cell lysis, mixing suspensions, and general sample agitation. The Multi-Tube Vortex mixer is a tool to provide that extra degree of mixing, however it accommodates full racks of tubes or microwell plates, vials or cylinder as opposed to single tubes.
| Technical Data | |
| Model | VM-100 |
| Speed Range* | 500 to 2500 |
| Timer | 1 sec to 999 Hrs. |
| Orbit | 3.6 mm |
| Maximum Capacity | 24 x 15 ml |
| Duty rating | Continuous |
| Tray Dimensions (LxW) mm | 313 x 180 |
| Overall Dimensions (WxDxH) mm | 400 x 325 x 430 |
Supply: 220-240 Volts 50 Hz Single Phase
* Maximum speed will vary depending on load
