Gel Card Centrifuge & Incubator
REMI Omnicard is an efficiently flexible gel card system provides you freedom to select any brand of gel card with replicating standard results. It provides you the various option of run parameters for centrifugation & incubation. Omnicard is an open gel card system for economically viable solution for blood grouping. Coombs tests (DA-0 &cross matching. etc.

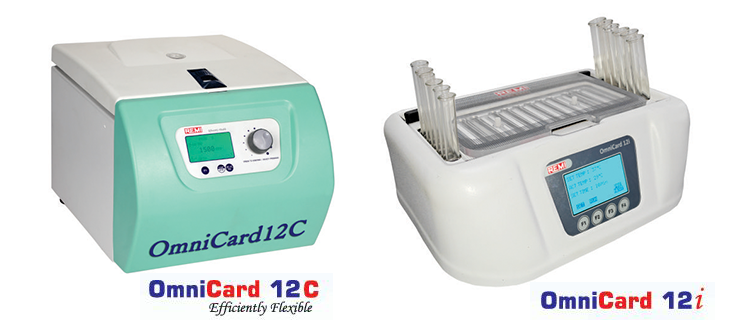

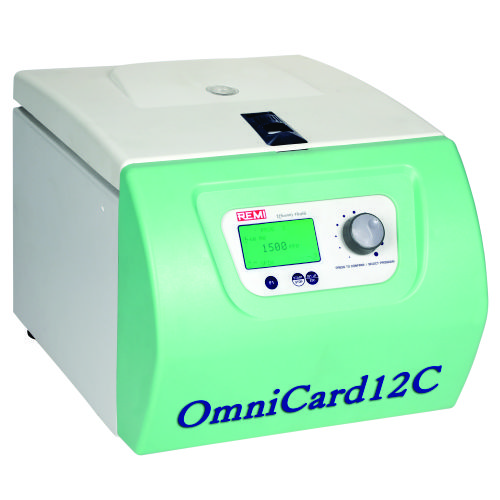

Omnicard 12C centrifuge fits all types of gel cards, with flexible 10 program setting (speed & time) including one sequential program.

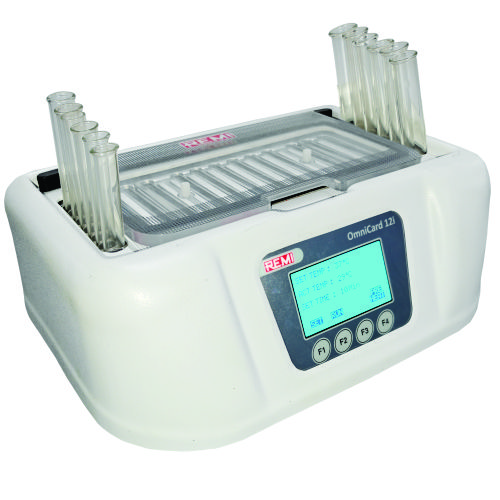

Omnicard 12 i incubator fits all types of gel cards with flexible temp. S. time setting. Additional dry bath slots for 5-7 ml test tubes makes it helpful for tube agglutination methods also.
Omni
Card
12
C
Salient features:
- Centrifugation of 12 Gel cards.
- Digital user interface screen provided for control and visualization of rpm and time.
- Maximum speed 1600 rpm.
- Maximum RCF 279g ±1%
- 8 open program for setting RPM. acceleration & deceleration, time with additional two sequential sets of parameters
- Audio-Visual alarm provided for Imbalance & end of cycle.

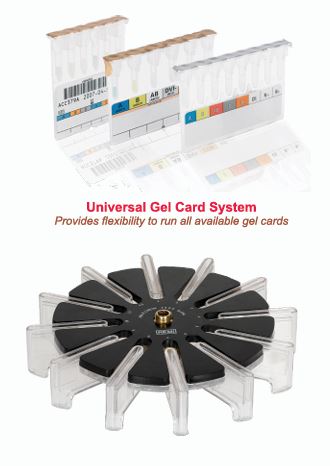

- Universal for all types of standard gel cards.
- Speed control through VFD and dynamic brake system.
- Light weight yet robust design.
- Ergonomically designed shape for ease of operation
- Single Hand Rotor removal for cleaning
Omni
Card
12
i
Salient features:
- Incubation of 12 Gel cards & 12 test tubes simultaneously.
- Digital user interface screen provided for control and visualization of remaining incubation time and real temperature.
- Fixed Pre-set temperature 37°C (Pre heating within 8 minutes)
- Fixed pre-set incubation time of 15 minutes and can be adjustable from 0 to 60 min.
- Audio-Visual alarm provided for High/Low temperature & End of Cycle.
- Auto Pop-up Card mechanism, when lid opened.
- Light weight yet robust design.
| Technical Specifications | ||
| Parameters |
OmniCard12C
Gel Card Centrifuge
|
Omnicard12i
Gel Card Incubator
|
| Programs |
Adjustable RPM & Time as specified by Gel card Supplier |
Adjustable incubation Temperature & Time as specified by Gel card Supplier |
| Run specification |
Max Speed : 1600±10 RPM Max RCF : 279±1% g |
37°C ±1°C Adjustable time up to 60 minutes |
| Net Weight | 18 Kg. | 4 Kg. |
| L x D x H | 420 x 320 x 286 mm | 300 x 250 x 150 mm |
| Audio Visual Alarms | Imbalance & End of cycle | High-low temperature, End of cycle |
| Capacity | 12 Gel cards | |
| User interface | LCD Display with Touch key pad | |
| Electrical | 220-240 volts, 50 Hz, SINGLE PHASE | |
