REMI Refrigerated Orbital Shaking Incubators are designed for precise temperature control and simultaneous shaking applications in fermentation studies, enzyme reaction, life sciences, tissue culture and biotechnology, research labs.
These chambers are available in standard & GMP versions.
Salient Features:
- 4″ LCD Display
- Brushless induction Motor with variable frequency drive ensures gentle shaking start
- Counter balanced mechanism for high stability
- Universal Shaking Platform
- Powerful fan motor for forced air circulation
- Machine filled CFC free PUF insulation
- Unique design of thermal barrier
- Port for calibration probes / safety back up
- Additional tray to store samples with Weight carrying capacity of 30 Kg Uniformly distributed
- CFC free refrigerantion system
- High temperature safety cut off & alarms for high / low set temperature
- Electrical circuit breaker
- Smart Handle with LED door closure indication
Optional:
- Touch screen display
- Chamber illumination with 2 Nos. fluorescent
- tubes
- Chamber illumination with 2 Nos. ultra violet lights
- 24 hours Cyclic Timer for regulating illumination conditions
- REMI Datasoft Pro’ software complying to 21 CFR part 11 as per USFDA Guidelines
Display options for Orbital Shaking Incubators
LCD Display:
Features
Remi ‘Datasoft’ Data acquisition software with password protection, secured audit trail, alarm status in tabular and graphical format included
Touch Screen Display:
Features
Remi ‘Datasoft’ Data acquisition software with password protection, secured audit trail, alarm status in tabular and graphical format included
REMI 'DATASOFT Pro’
Features
2. Multi-Device Connectivity Multiple REMI chambers up to 30 devices connected to single software.
3. Network Connectivity Ethernet based having LAN connectivity helps authorized person to login into software from any PC connected to server.
4. Multi-User Collaboration Multiple hierarchy levels to view, analyze, e-Review, e-Approval, e-Comment on data with role-based access control
5. Alert & Notification System Mobile and email alert of alarms, events to pre-scheduled persons with SMS, real-time app-based notifications, and DND policies
6. Digital Acknowledgment Alarm acknowledgement with e-signatures and comprehensive audit trail compliance
7. Regulatory Compliance Secured audit trail report and calculation of MKT for any days with 21 CFR Part 11 compliance features
8. Backup System Automatic and manual both type of daily data backup with scheduled intervals, compressed files, and complete restoration capabilities
9. Data Management Additional features of data archival & data restore with retention policies and database integrity checking
10. Access Control Integration Biometric Device Integration with door access data integrated into REMI Web Based software including fingerprint authentication and access logging
11. Advanced Reporting & Analytics PDF report generation, scheduled reporting, and real-time data visualization
13. Communication Protocols Support for Modbus RTU/TCP, serial communication (RS232/RS485), TCP/IP Ethernet
| Technical Data | |

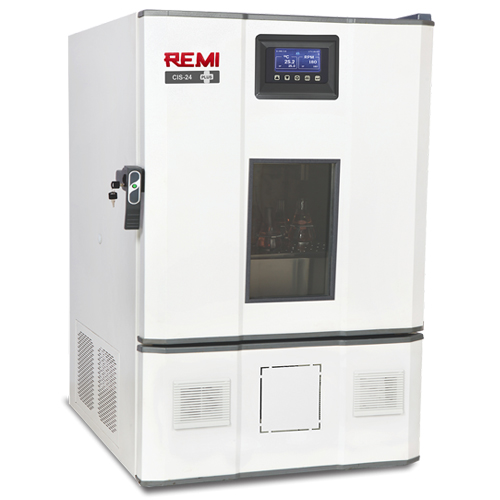

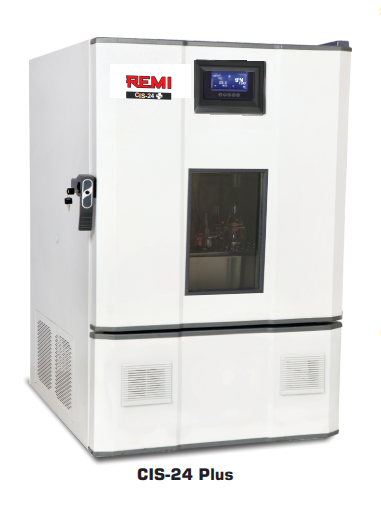

| Model - LCD Display | CIS-24 Plus |

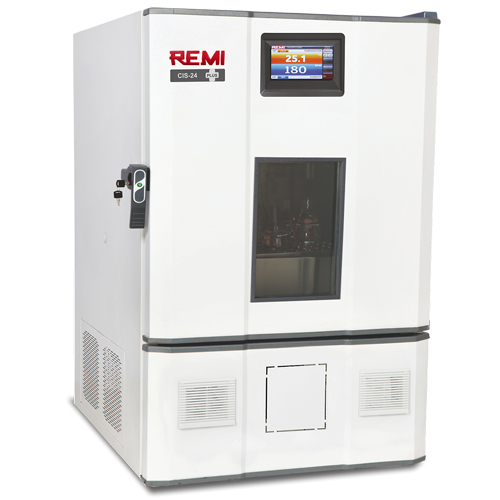

| Model - TFT Display | CIS-24 Plus |
| Temperature Range & Accuracy | 5°C to 60°C, ± 0.5°C |
| Internal Volume (Litres) | 215 |
| Platform Size | 580 mm × 600 mm |
| Maximum Shaking Capacity (Volume × No. of flasks) |
49 × 100/150 ml, 33 × 250 ml, 24 × 500 ml, 15 × 1000 ml, 9 × 2000 ml |
| Shaking Speed Range (RPM) | 20 to 250 |
| Shaking Amplitude | 25 mm |
| Internal Dimensions (W × D × H) mm | 660 × 765 × 650 |
| External Dimensions (W × D × H) mm | 800 × 1150 × 1300 |
| Temperature Control | Microprocessor with PT-100 sensor |
| Display | 4" LCD Screen, Large size Display for ease of reading |
| Power Failure Alarm | Audio Visual Alarm |
| Door Open Alarm | Audio Visual, in case door open for over one minute |
| Temperature Variation Alarm | Set Temperature ± 2°C, Audio Visual Alarm |
| Illumination | 8 Watts Fluorescent Tube |
| Internal Body Material |
Stainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models) |
| External Body Material |
Powder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) |
| Insulation | 70 mm minimum for Body & 80 mm for Door |
| Noise Level | Less than 65 dB(A) |
| Recommended Voltage Stabilizer | VS-02 |
Supply: 220–240 Volts, 50 Hz Single Phase.
