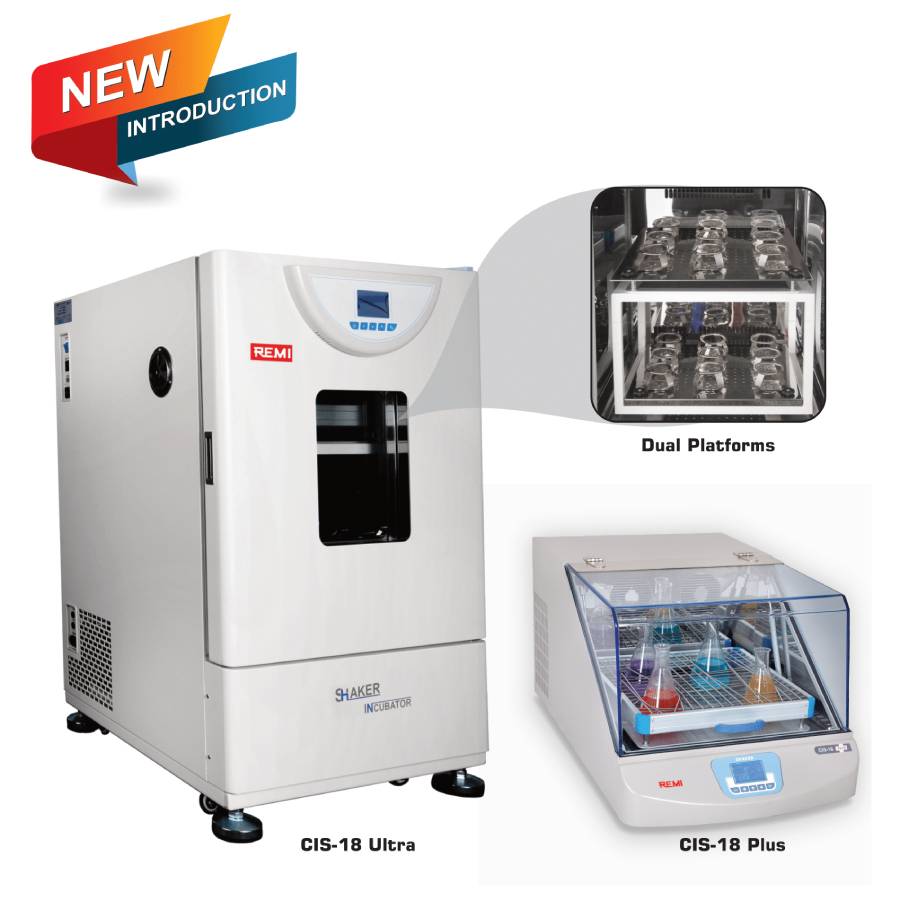

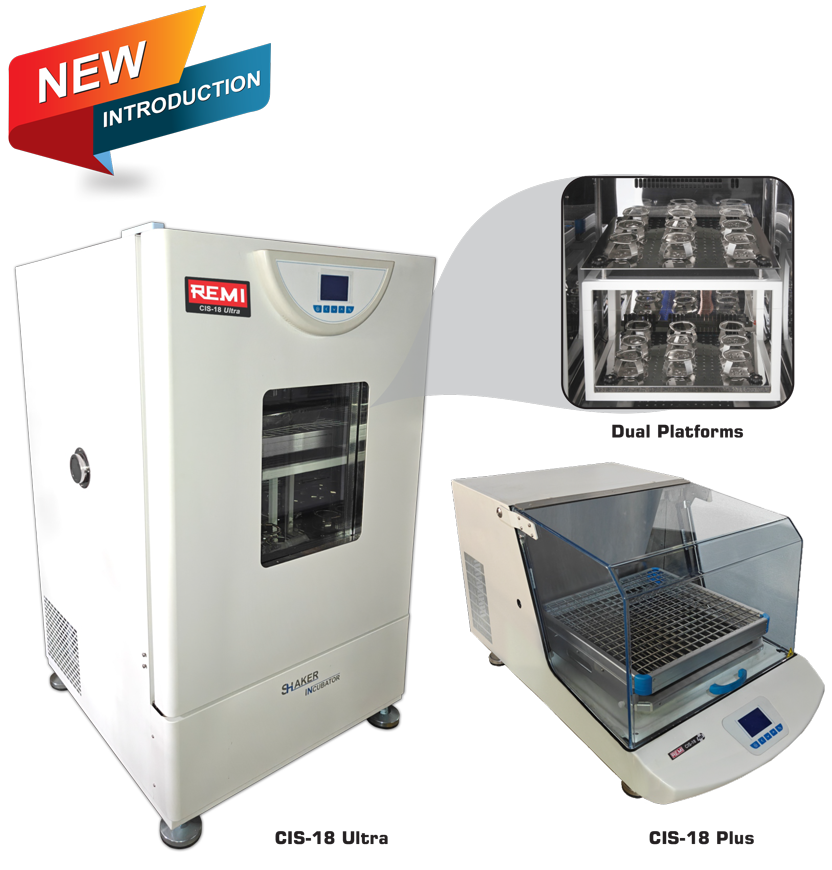

Orbital Shaking Incubators CIS-18 Plus & CIS-18 Ultra finds application in researches on bacteria, cultivation, fermentation, hybridization, chemical and biochemical reaction, enzymes and tissues research.

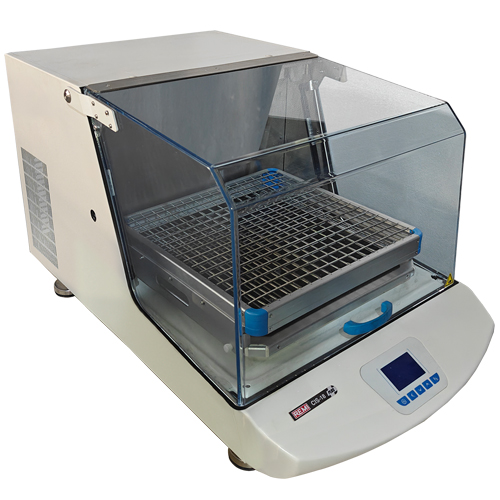

Salient Features of CIS-18 Plus:
- Stainless-steel chamber & platform
- Transparent plastic door
- Microprocessor controller with large LCD screen for temperature, shaking speed & timer
- Self-check function easy to identify problems
- Smooth start and stop system prevents liquid spillage
- Overtemperature alarm
- Safety door switch, auto pause operation when it is opened

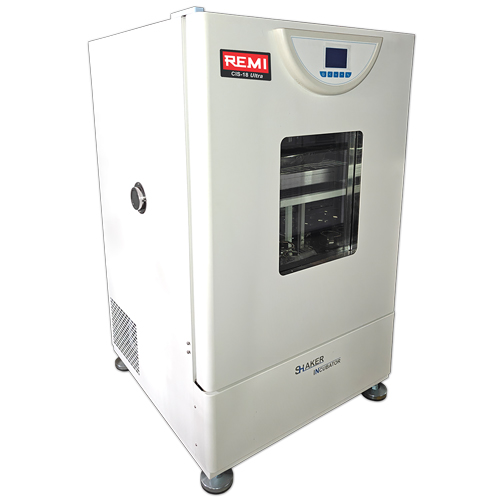

Additional Salient Features of CIS-18 Ultra (Double Decker):
- Floor standing model
- Two Universal Platforms to accommodate interchangeable clamps of assorted sizes
- Different size of clamps available – 50/100 ml, 250 ml, 500 ml & 1000 ml (to be ordered separately)
| Technical Data | ||
| Model | CIS-18 Plus | CIS-18 Ultra |
| Shaking Speed Range (RPM) | 40-300 | 40-300 |
| Amplitude | 20mm | 20mm |
| Temperature Range / Accuracy | 4-65°C / ±0.5°C | 4-65°C / ±0.5°C |
| Display Resolution | 0.1°C | 0.1°C |
| Timer Range | 1 hour ~ 99h:59m | 0 ~ 5999 min |
| No. of Platforms | 1 | 2 |
| Platform Size (mm) / Type | 450 × 450 / Springs | 500 × 350 / Universal |
| Maximum Shaking Capacity (No. of flasks × Volume) |
4 × 2000 ml, 8 × 1000 ml, 11 × 500 ml, 12 × 250 ml, 28 × 100 ml, 42 × 50 ml |
Refer Clamp table |
| Exterior Dimension (W × D × H) mm | 610 × 980 × 545 | 725 × 720 × 1150 |
| Load in Tray | ≤ 10 Kg | ≤ 8 Kg each platform |
| Recommended Voltage Stabilizer | VS-02 | VS-03 |
Supply: 220–240 Volts, 50 Hz Single Phase.
| Essential Clamps for CIS-18 Ultra (to be ordered separately) | |||||||
| Model | Platform Size (mm) | No. of Platform | Max. Volume (Litres) | Max. No. of Clamps (To be ordered separately) | |||
| 500 ml | 250 ml | 100/150 ml | 50 ml | ||||
| CIS-18 Ultra (Double Decker) |
500 × 350 Each (Universal) |
2 | 7 | 7 + 7 = 14 | 13 + 13 = 26 | 18 + 18 = 36 | 32 + 32 = 64 |
| Max. RPM at Full Load | 250 | 300 | 300 | 300 | |||
