Geared Stirrers
Geared Stirrers are specially designed for a broad spectrum of applications to provide high torque at low speeds allowing them to efficiently mix highly viscous materials. Digital RPM display with step less speed regulations for continuous variation of speed as per customer requirements.
| Technical Data | ||||||||||
| Model | Stirring Shaft | Impeller | Motor | Speed (rpm) | Stirring Capacity | Digital Speed Indicator | ||||
| Length (mm) | Ø (mm) | Type | Ø (mm) | Min | Max | Type of Fluid | Max Volume (Water) | |||
| Geared Stirrers | ||||||||||

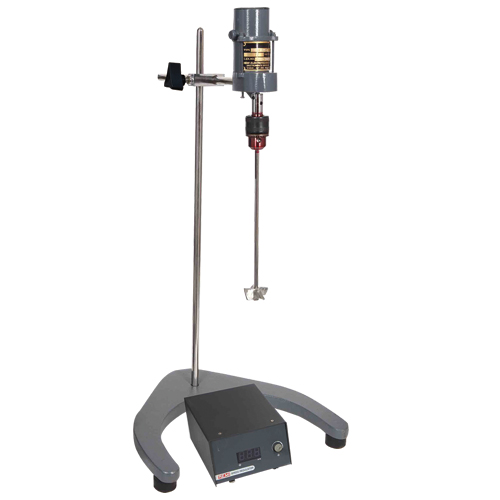

| RQG-121/D | 250 | 6 | Axial Turbine | 36 | PMDC | 50 | 550 | Light Oil | 5 Ltrs. | LED |

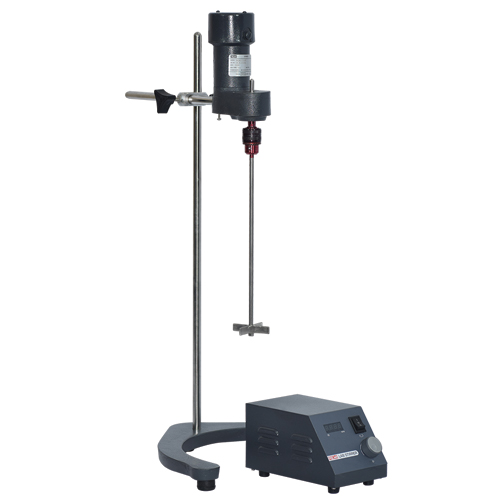

| RQG-126/D | 450 | 8 | 4 Cross Blade | 75 | PMDC | 50 | 750 | Paint / Gear Oil | 15 Ltrs. | LED |

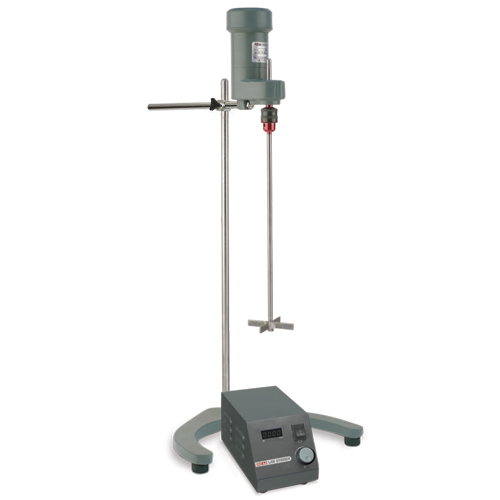

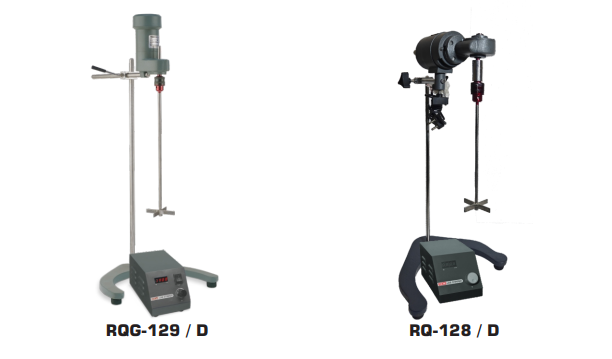

| RQG-129/D | 550 | 10 | 4 Cross Blade | 100 | PMDC | 50 | 550 | Paint / Gear Oil | 25 Ltrs. | LED |

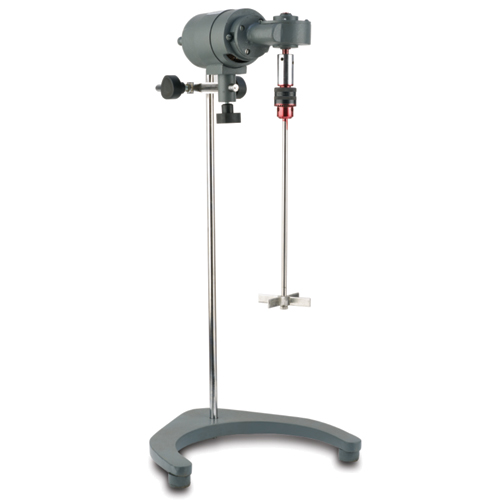

| RQ-128/D | 310 | 8 | 4 Cross Blade | 90 | AC/DC 1/20 HP | 50 | 150 | Light Oil | 3 Kgs | ✖ |

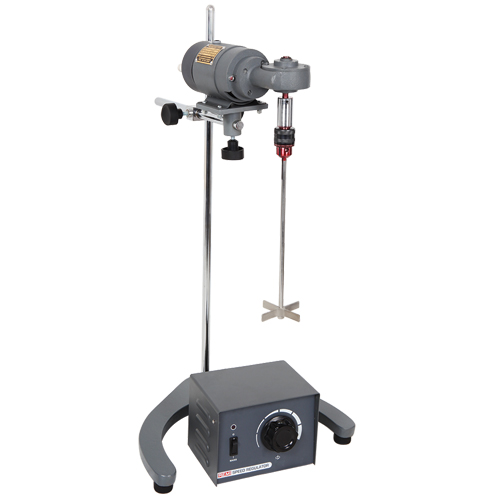

| RQ-128B/D | 310 | 8 | 4 Cross Blade | 90 | AC/DC 1/8 HP | 50 | 150 | Light Oil | 7 Kgs | ✖ |

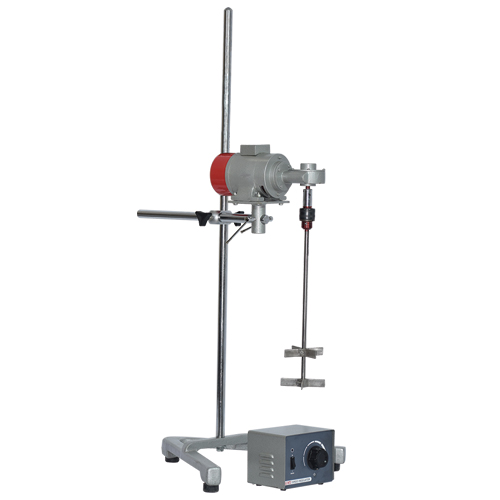

| RQ-128D/D | 450 | 12 | 4 Cross Blade x 2 | 120 | AC/DC 1/2 HP | 50 | 280 | Light Oil | 20 Kgs | ✖ |

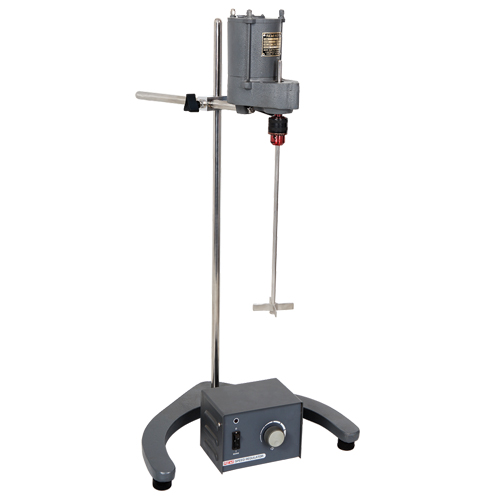

| RQG-128A/D | 450 | 8 | 4 Cross Blade | 75 | AC Brushless | 50 | 550 | Water | 10 Kgs | ✖ |

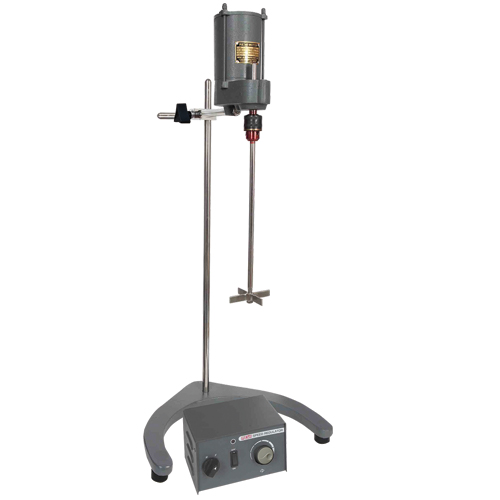

| RQG-128C/D | 450 | 10 | 4 Cross Blade | 90 | AC Brushless | 50 | 500 | Paint / Gear Oil | 20 Kgs | ✖ |
Supply: 220–240 Volts, 50 Hz Single Phase.
