REMI Plasma Freezer are designed to meet the storage requirements of Plasma.
Cabinet Construction:
Durable, corrosion resistant materials are used to provide years of reliable performance. The outer body is made up of powder coated CRCA Steel & internal cabinet of Stainless Steel 304 (AISI Grade, Non Corrosive and Non Magnetic).
Temperature Control & Monitoring:
Microprocessor integrated system provides excellent temperature accuracy. 7 days chart recorder & audio visual alarm system helps to indicate disturbance in storage conditions.
Variants:

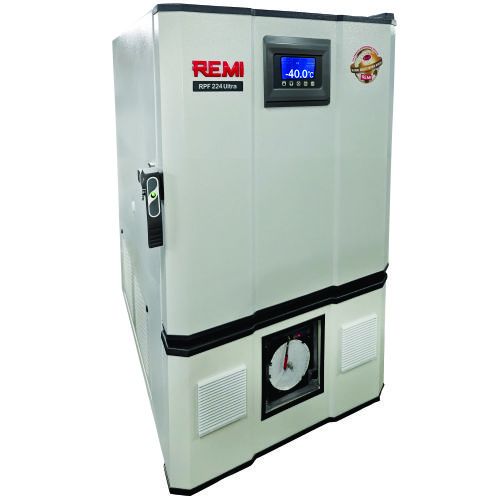

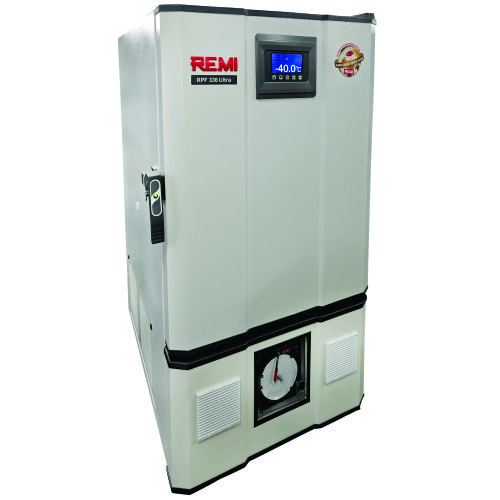

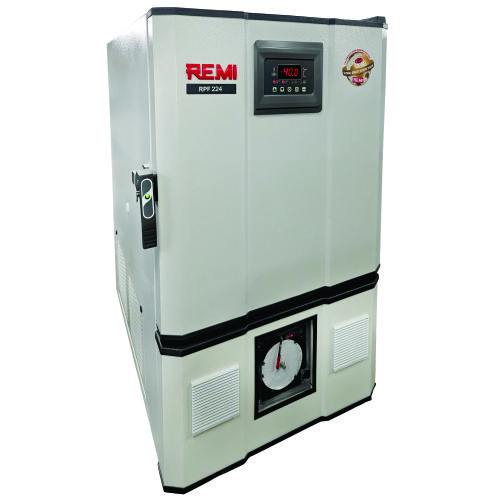

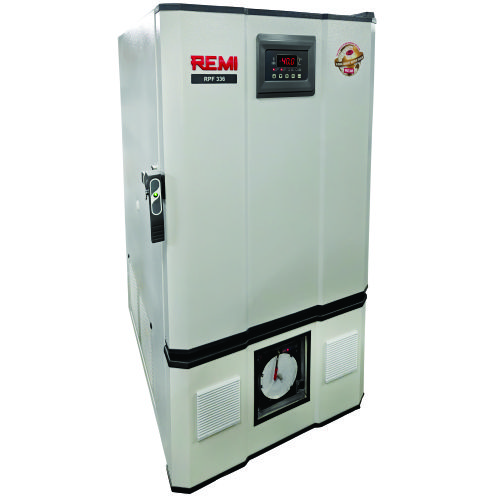

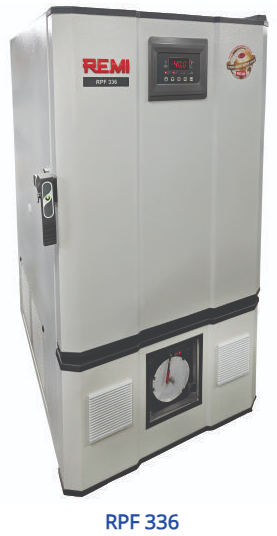

REMI Plasma Freezer available as RPF & RPF Ultra
variants. Both the variants are available in 2
different capacities.
Salient Features :
- Precise temperature management with the help of highly sensitive microprocessor controller. -40° C
- High density insulated cabinet & outer door, with inner insulated S.S. doors to minimize cold air loss during door openings.
- Large display of temperature with all the controls on the door & at eye level for ease of operation
- Audio / Visual alarms for
- Temperature high/low
- Power failure
- Door open
- Compressor on
- Power on
- Battery backup for alarm system, temperature display & chart recorder
- Standard: 8Hrs (inbuilt rechargeable batteries)
- Extended (Optional): 24 Hrs (with UPS and rechargeable batteries)
- Settable points of
- Temperature high / low
- Adjustable temperature range
- High / low temperature alarm point
- Buzzer off time (LCD)
- Auto Door Closure
- Smart Handle
- Indication of door close with green light
- Key Lock
- Indication of door open with blinking red
- Vacuum Release Port
- Port for Co2 backup (Optional)
Display options for Humidity Chambers

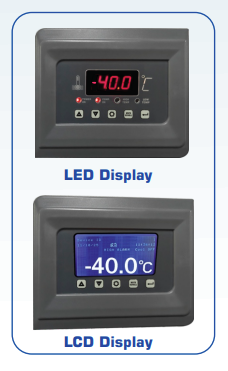

LCD Display:
Features
- 4 Inch attractive LCD display
- Intelligent Controller helps maintain temperature in case of sensor failure
- Auto tuning of controller
- Self-Diagnosis for errors
- Histogram format of 24 hours temperature recording
- Settable High / low alarm points
- Memory for storage of upto 1000 records
- Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
- Alarm on equipment / output for remote alarm
| Technical Specifications | ||||||||||
| Parameters | RPF 224 | RPF 224 Ultra | RPF 336 | RPF 336 Ultra | ||||||
| Temperature control | Microprocessor | Microprocessor | ||||||||
| Display | LED | 4" LCD | LED | 4" LCD | ||||||
| Internal dimensions W x D x H (mm) | 580 x 555 x 1010 | 580 x 555 x 1340 | ||||||||
| External dimensions W x D x H (mm) | 740 x 780 x 1600 | 740 x 780 x 1930 | ||||||||
| Gross internal volume | 325 Ltrs. | 425 Ltrs. | ||||||||
| Capacity of plasma bags | 360 | 480 | ||||||||
| Number of Racks (Adjustable) | 3 | 4 | ||||||||
| Number of inner door | 3 | 4 | ||||||||
| Drawer capacity | Maximum 120 bags | |||||||||
| Minimum Temperature (in AC Room) | Up to -40°C | |||||||||
| Internal body material | S.S. 304 (AISI grade, Non corrosive, Non magnetic) | |||||||||
| External body material | Powder coated CRCA steel | |||||||||
| Insulation | High density upto 80mm CFC free polyurethane foam | |||||||||
| Recorder | Seven days circular chart recorder | |||||||||
| Noise level | Less than 65 db(A) | |||||||||
| Battery backup | Rechargeable maintenance free for Alarm System, Temperature Display & Chart Recorder | |||||||||
| Power Failure Alarm | Audio visual alarm | |||||||||
| Recommended voltage stabilizer | VS 03 | |||||||||
| Supply: 220-240 Volts, 50 Hz Single Phase. | ||||||||||
