Platelets Incubator & Agitator
| Healthcare Products | Platelets Incubator & Agitator

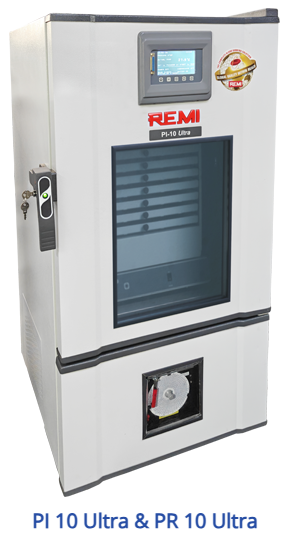

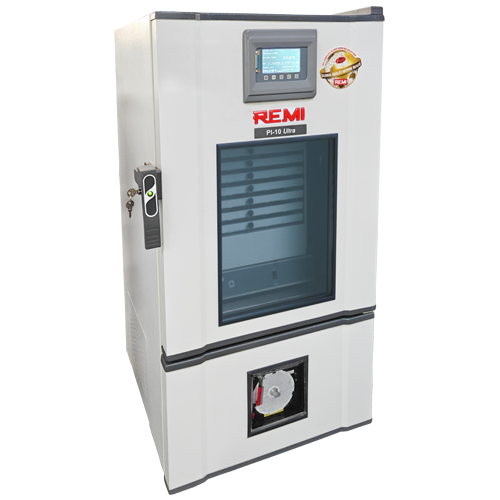

PI 10 Ultra
Platelet Incubator
Ultra range of REMI Platelet Incubator & Agitator are specially designed to meet the storage requirements of Platelet concentrate.
Temperature Control & Monitoring:
Microprocessor integrated system provides excellent temperature accuracy. 7 days inkless electronic chart recorder with digital display & audio visual alarm system helps to indicate disturbance in storage conditions.
Intelligent Controller
In case of temperature controller failure, innovative “Clever-Chip” automatically takes control for continued operations.
Salient Features :
- Refrigeration & precision pulse heating for achieving 22°C (± 1°C)
- Forced air circulation for temperature uniformity
- Bacteria resistant powder coated exterior with high grade stainless steel Interior
- LCD display of temperature, real date, real time, temperature histogram etc.
- Smart Handle with LED door closure indication
- Auto stop / start feature pauses agitation when incubator door is opened
- Safety Thermostat to prevent -ve & +ve temperature in additional to microprocessor controller
- Swivel lockable castors with floor standing jacks
- Triple pane tempered glass door
- USB Facility for Data download
- Frost free performance
| Technical Specifications | ||
| Particulars | PI-10 Ultra | |
| Temperature controller | Microprocessor | |
| Audio Visual Alarms: Agitator Motion fault Power failure Compressor run (visual) Temperature Hi/Low (±2°C) Door open |
Yes | |
| Temperature (CFC free Refrigerant) |
°C |
22 (Deviation ± 0.5) |
| Setting Accuracy |
°C |
±0.1 |
| Internal Volume |
Liters |
183 |
| Internal Dimension (W X D X H) |
mm |
540 X 520 X 634 |
| External Dimension (W X D X H) |
mm |
640 X 685 X 1185 |
| Insulation Thickness |
mm |
50 mm |
| Recorder | Seven days chart recorder | |
| Battery Backup (Controller) | Rechargeable, 8 Hrs (Display, Recorder, Alarm system) |
|
| Electrical | 220 – 240 volts, 50 Hz, Single Phase | |

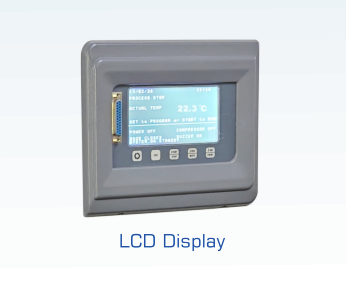

LCD Display
- 4 Inch attractive LCD display
- Intelligent Controller helps maintain temperature in case of sensor failure
- Battery Backup for Temperature Controller
- Displays temp, alarms, date & time
- Onscreen access for last 24 Hrs data logs, temp. histogram & system status
- Auto tuning of controller
- Settable High / low alarm points
- Memory for storage of upto 5 years
- Alarm on equipment / output for remote alarm
- PC communication through RS-485 with data acquisition software
- REMI ‘Datasoft’ software for generating various reports, SMS alerts & analysis (Optional)

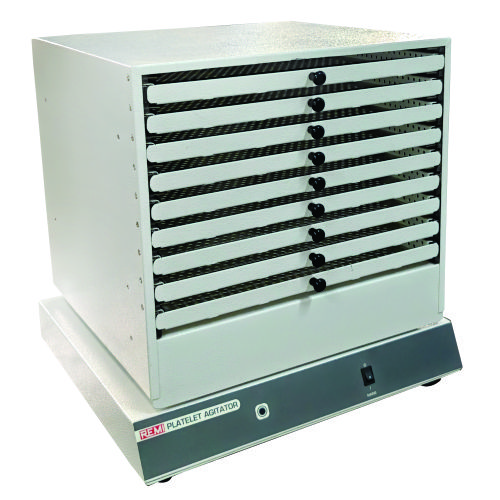

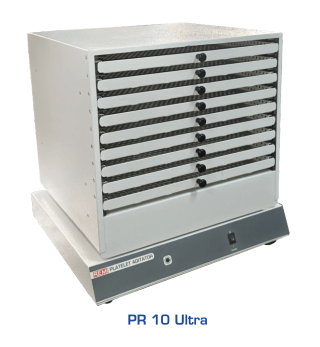

Platelet Agitator – PR 10 Ultra
- Easy Pull out, adjustable shelves ensures inventory management
- Perforated flatbed corrision resistant shelves for uniform air circulation
- Robust motorized slide for effective 24X7 continuous jerk free agitation by heavy duty geared motor
- Fixed speed agitation with optimum amplitude for better viability of platelets
- Push Button for Agitator Pause
- For easy fitment in Plated Incubator Model PI-10 Ultra
| Technical Specifications | ||
| Particulars | PR-10 Ultra | |
| Agitator control | Microprocessor | |
| Stokes (adjustable) | Per min | 70 to 80 |
| Amplitude | mm | 38 ± 2 |
| Dimension | mm | 440 X 410 X 395 |
| Trays | Number | 9 |
| Capacity | Platelet bags (RDP) | 54 |
