Magnetic Stirrers
Remi presents the next generation of magnetic stirrers with new stir technology.
Salient Features :
- Different models for stirring up to 20 ltrs
- Speeds range 150 – 1500 rpm
- Easy to read backlit LCD for display of set & actual parameters
- Monitoring of set & actual speed
- Advanced Stirrers with microprocessor technology.
- Constant speed even with change of load/ Voltage
- Maintenance free brushless motor
- Scratch proof & excellent chemical resistance
- Last parameter recall, ideal for repetitive processes
- Ceramic coating on top plate for improved corrosion resistance (3 MLPlus & 6 MLPlus)
- Countdown timer
| Technical Data | |||

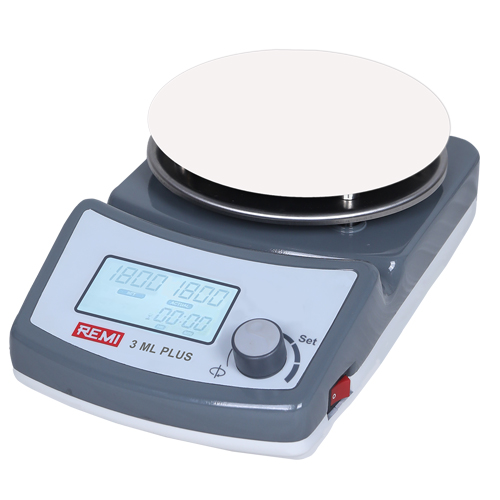

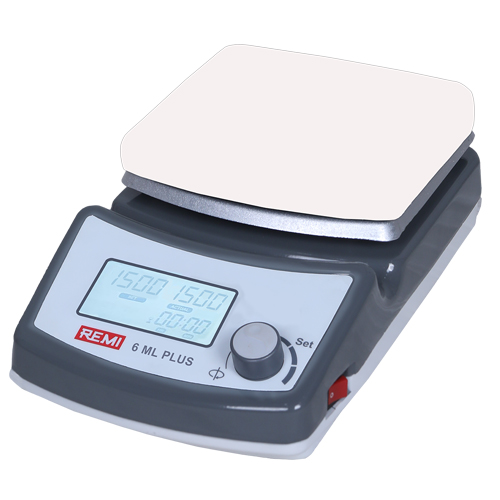

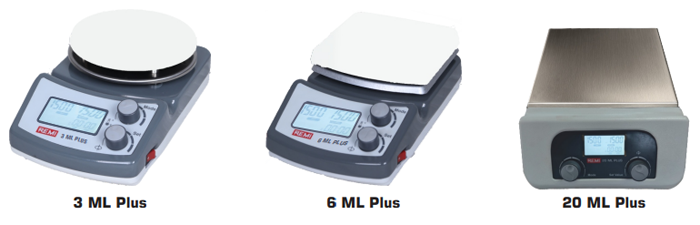

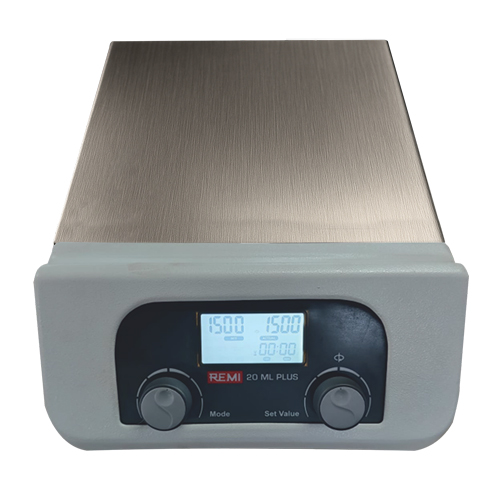

| Models | 3-ML PLUS | 6-ML PLUS | 20-ML PLUS |
| Power (W) | 50 | 50 | 50 |
| Max, stirring quantity (Water) (Liters) | 3 | 6 | 20 |
| Stirring Paddle (PTFE coated) | Q-19A (9 X 35mm) | Q-20A (13 x 50 mm) | Q-20A (13 X 50mm) |
| Speed range (rpm) | 150-1800 | 150-1500 | 150-1500 |
| Speed / Temperature display | LCD | ||
| Speed display resolution (rpm) | 1 | ||
| Top Plate Material | Aliminium Alloy | Aliminium Alloy | Stainless Steel |
| Coating on Top Plate | Ceramic | Ceramic | - |
| Dimension of Top Plate (mm) | φ 154 | 157 x 157 | 300 x 350 |
| Timer | 00:01 to 99-59 (Hr:Min) and Continuous Mode | ||
| Dimensions (W x D x H) (mm) | 169 x 290 x 105 | 169 x 290 x 105 | 300 x 350 x 100 |
| Protection class acc. To DIN En60529 | IP 21 | IP 21 | - |
Supply: 220-240 Volts, 50 Hz Single Phase.
Magnetic Stirrers - With Hot Plate
Remi presents the next generation of magnetic stirrers with new stir technology and hot plates to use in temperature up to 550°C.
Salient Features :
- Speed range 150 – 1800 rpm

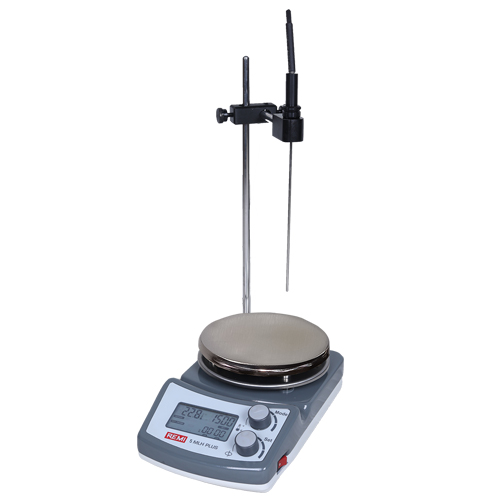

- Stainless steel Hot Plate model for temperatures upto 350°C (5 MLH Plus)

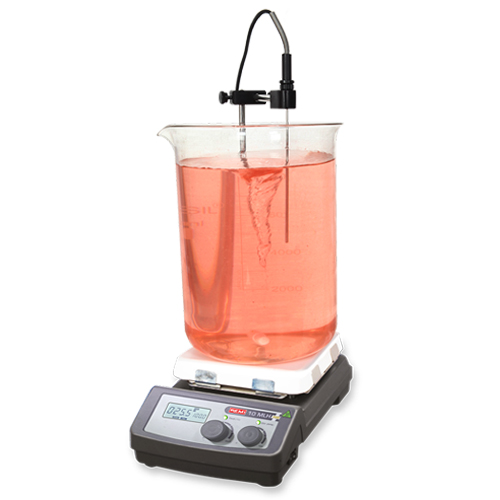

- Ceramic Hot Plate model for temperatures up to 550°C (10 MLH Plus)
- Ceramic coated on top plate models for improved corrosion resistance (3 MLH Plus & 6 MLH Plus)
- Easy to read backlit LCD for display of set & actual parameters
- Monitoring of set & actual temperature / speed
- High accuracy of temperature control with embedded dual sensors
- Advance Stirrers with microprocessor technology
- Constant speed even with change of load / Voltage
- Maintenance free brushless motor
- Scratch proof & excellent chemical resistance
- Last parameter recall, ideal for repetitive processes
- Unique safety temperature control system
- Settable safe temperature limit to avoid overheating
- Residual temperature warning when unit is switched off for operator safety
- Countdown timer
Optional Accesory : Ext. probe - PT-1000 sensor complete with suitable stand
| Technical Data | ||||

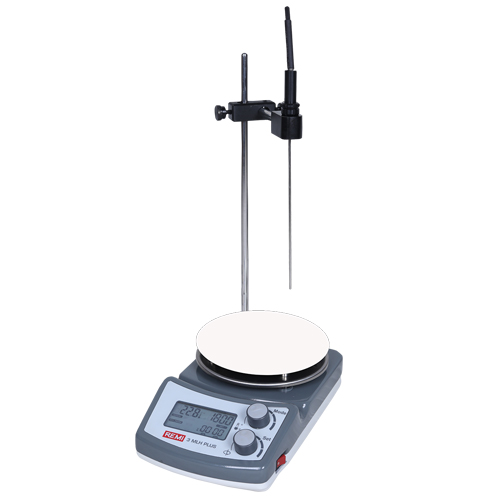

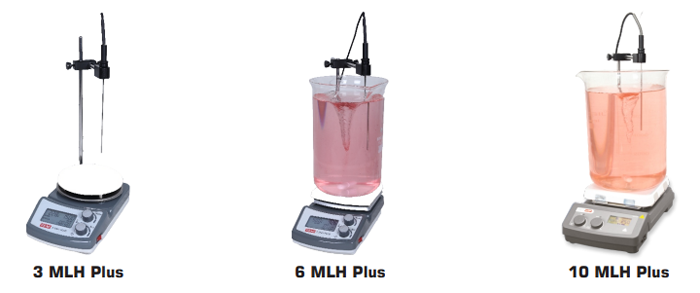

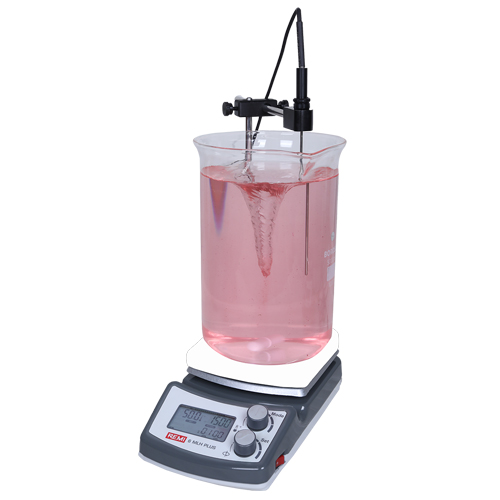

| Model | 3-MLH PLUS | 5-MLH PLUS | 6-MLH PLUS | 10-MLH PLUS |
| Max, stirring quantity (Water) (Liters) | 3 | 5 | 6 | 10 |
| Stirring Paddle (PTFE coated) | Q-19A (9 X 35mm) | Q-19A (9 x 35 mm) | Q-20A (13 x 50 mm) | Q-20A (13 x 50 mm) |
| Speed range (rpm) | 150-1800 | 150-1500 | 150-1500 | 150-1500 |
| Speed / Temperature display | LCD | |||
| Speed display resolution (rpm) | 1 | |||
| Top Plate Material | Aluminium Alloy | Stainless Steel | Aluminium Alloy | Ceramic Glass |
| Coating on Top Plate | Ceramic | - | Ceramic | - |
| Dimension of Top Plate (mm) | φ 154 | φ 154 | 157 x 157 | 184 x 184 |
| Timer | 00:01 to 99-59 (Hr:Min) and Continuous Mode | |||
| Heating power (W) | 450 | 500 | 600 | 1000 |
| Temperature Range | 50 - 300°C | upto 350 °C | 50-350°C | upto 550°C |
| Residual Heating Warning Alarm | Above 50 °C | |||
| Control accuracy of temperature | ±1°C (with external PT-1000 sensor) | |||
| Dimensions (W x D x H) (mm) | 169 x 290 x 105 | 210 x 340 x 115 | 169 x 290 x 105 | 360 x 215 x 112 |
| Protection class acc. To DIN En60529 | IP 21 | |||
Supply: 220-240 Volts, 50 Hz Single Phase
