Thermisafe Series ensures precise, uniform warming of blood and IV luids improving clinical outcomes and care eficiency.
The Thermisafe Series offers an intuitive way to prevent hypothermia — no disposables, no complicated setup, just effective warming through a simple silicone sleeve.

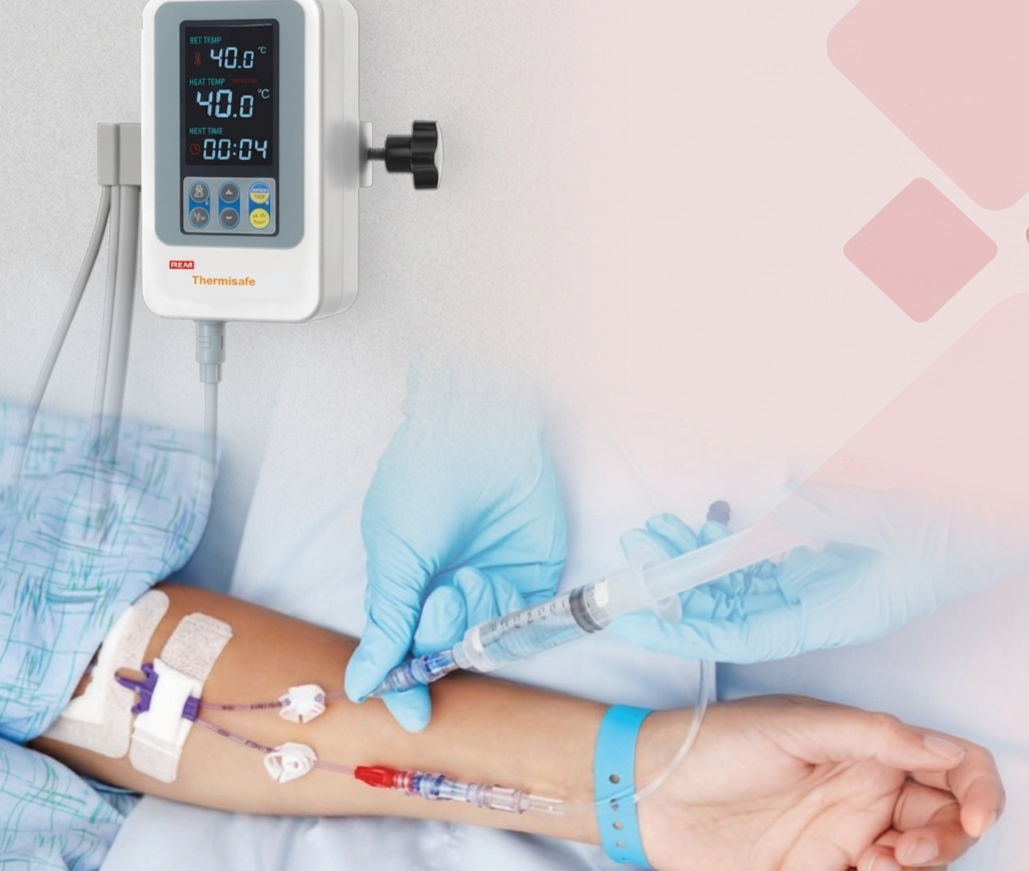

The control panel mounts easily on any IV stand and displays set temperature, actual temperature, date, and time. Insert the IV tube into the soft silicone sleeve and let the warmth low — all the way to the patient.
Why Warmth Matters
- Prevents perioperative hypothermia
- Enhances patient comfort
- Reduces risk of complications
- Enables faster recovery and discharge
- Improves ICU turnaround and operational eficiency
Thoughtful Design
- Standard sleeve size its all IV sets
- Smooth surface, easy to clean and disinfect
- Biocompatible materials for patient safety
- No additional consumables required
Key Advantages
Uniform full-length warming — not limited
to metal heating segments
- Dual CPU design for maximum safety and redundancy
- Fast preheating:ready in ≤2 minutes
- Triple protection with hardware & software cutoff
- No consumables,no hassle,low running cost
- Optical & acoustic fault indication
- Selectable temperature display in °C & °F
Features
| Thermisafe Comparison | ||
| CONFIGURATION | THERMISAFE SL | THERMISAFE DL |
| TYPICAL USE | IV FLUID / INFUSION WARMING | BLOOD TRANSFUSION & INFUSION SIMULTANEOUSLY |
| APPLICATION AREAS | IV FLUID / INFUSION WARMING | OPERATING ROOMS, CRITICAL CARE UNITS |
| CONTROL PANEL | LARGE DISPLAY WITH SET TEMPERATURE, DATE, TIME | SAME AS SL, MONITORS BOTH LINES |
| TEMPERATURE RANGE | 32°C TO 42°C ADJUSTABLE | 32°C TO 42°C ADJUSTABLE |
| SAFETY | DUAL CPU WITH TRIPLE PROTECTION | DUAL CPU WITH TRIPLE PROTECTION |
| EASE OF USE | PLUG-AND-PLAY OPERATION | INDEPENDENT CONTROL FOR BOTH SLEEVES |

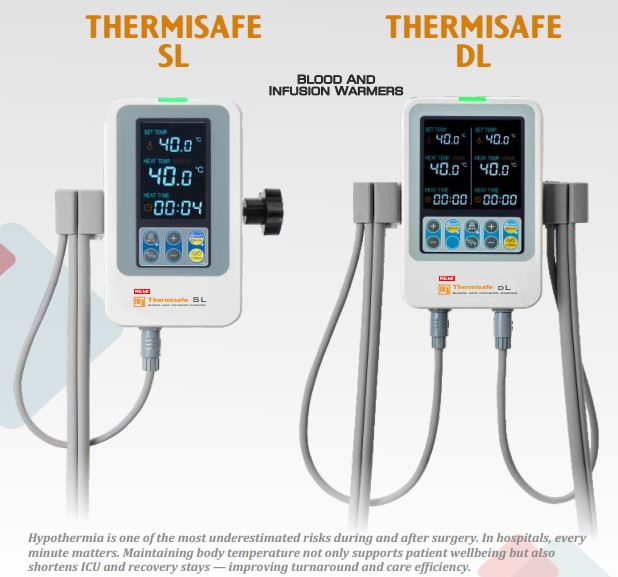

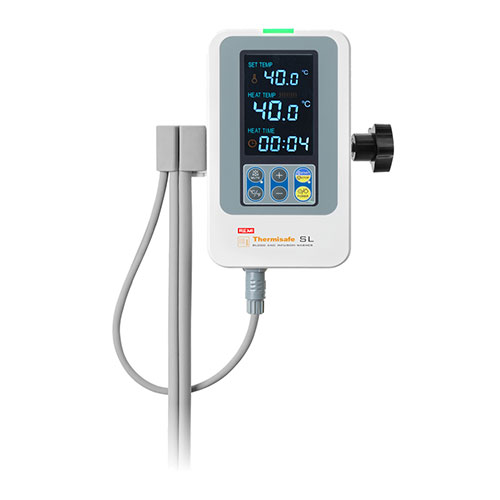

Thermisafe SL — Single Line Blood & IV Fluid Warmer

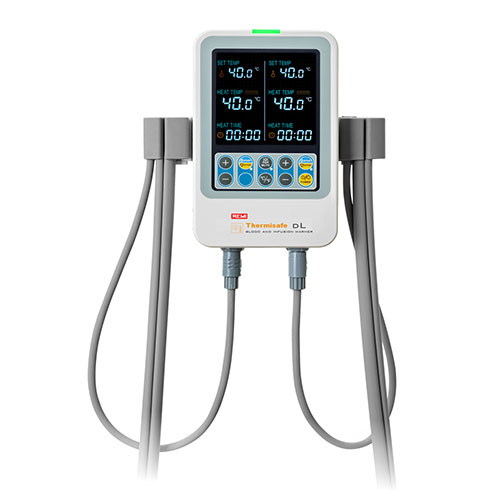

Thermisafe DL — Dual Line Blood & IV Fluid Warmer
For healthcare professionals who believe that warmth is healing.
| Technical specifications | ||
| MODEL | THERMISAFE SL | THERMISAFE DL |
| Temperature Range | 32°C to 42°C adjustable | 32°C to 42°C adjustable |
| Preheating Time | ≤2 minutes (from 23°C to 42°C) | ≤2 minutes (from 23°C to 42°C) |
| Heating Element | Dry silicone sleeve | Two dry silicone sleeves |
| Temperature Control | Dual CPU design with triple protection | Dual CPU design with triple protection |

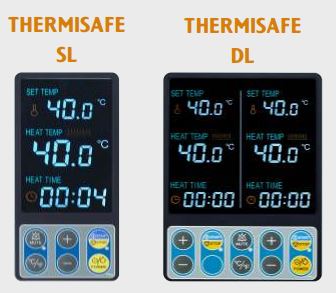

| Display |
Color LCD – shows set & actual temperature, date & time |
Same display – dual readout |
| Alarms | Optical & acoustic indication for High Temperature | Optical & acoustic indication for High Temperature |
| Temperature Sensor | Integrated at outlet end (patient side) | Dual integrated sensors |
| Mounting | Clamp-type for IV stand | Clamp-type for IV stand |
| Sleeve Compatibility | Standard IV sets | Standard IV sets |
| Surface Material | Smooth, biocompatible & easy to disinfect | Smooth, biocompatible & easy to disinfect |
| Power Supply | 230V AC, 50Hz | 230V AC, 50Hz |
| Dimensions (Control Unit) | 140 X 115 X 175 mm | 155 X 115 X 175 mm |
| Weight | 0.86 kg | 1.2 kg |
