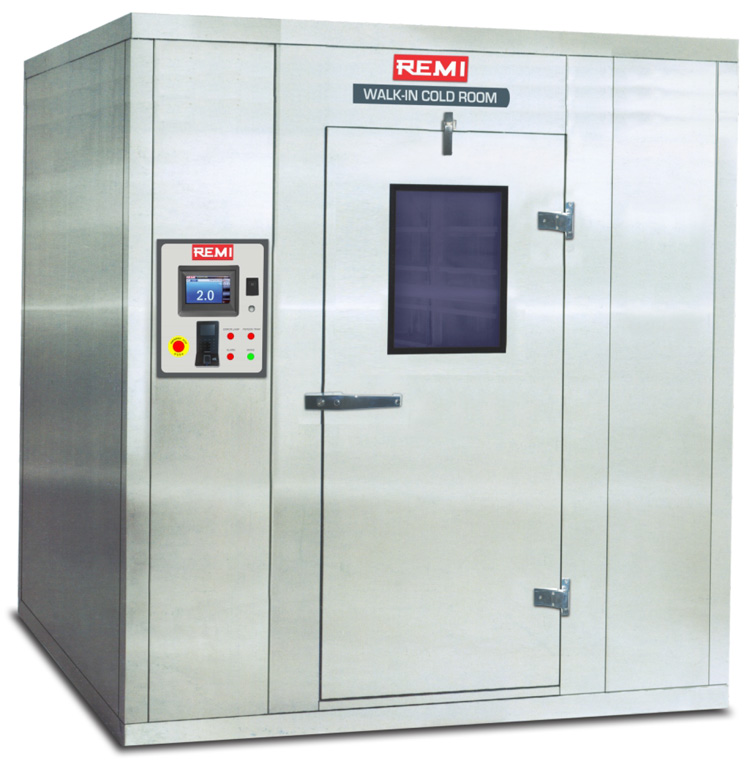

REMI Walk in chambers are designed for simulating, monitoring & control of environmental conditions like temperature & humidity. They are available in standard sizes & can also be tailor made to suit specific requirements. Forced air circulation with the help of fan blower maintains uniform conditions. Use of intelligent control systems & dedicated REMI ‘Datasoft Pro’ software complying to 21 CFR Part 11 requirements greatly enhances the performance. These chambers can be provided with standby refrigeration & humidity systems (optional) for uninterrupted functioning.
Display options for Walk-in Chambers
LCD Display:
Features
• 4 Inch attractive LCD display • Intelligent Controller helps maintain in case of sensor failure • Battery Backup for Temperature Controller • Auto tuning of controller • Self-Diagnosis for errors • Histogram format of 24 hours temperature recording • Settable High / low alarm points • Memory of upto 1000 records • Audio Visual Alarm • Remote Alarm Output
Remi ‘Datasoft’ Data acquisition software with password protection, secured audit trail, alarm status in tabular and graphical format included
Touch Screen Display:
Features
Remi ‘Datasoft’ Data acquisition software with password protection, secured audit trail, alarm status in tabular and graphical format included
Salient Features
- Designed as per ICH guidelines to meet WHO and USFDA requirement
- Fulfills storage conditions of 25°C–60% RH, 40°C–75% RH, 30°C–65% RH, 25°C–40% RH
- Temperature Range: 20°C to 60°C, Uniformity: ±1°C (Stability Chambers)
- Humidity range: 40% RH to 95% RH, Uniformity: ±3% RH (Stability Chambers)
- Temperature Range: 2°C to 8°C, Uniformity: ±1°C (Cold Rooms)
- Microprocessor based auto tuning PID controller for precise control of temperature and humidity
- Heating by long lasting SS tubular heaters
- Auto change over to standby systems through PLC (Optional)
- Auto switch over to standby sensor in case of controlling sensor failure through PLC (Optional)
- Capacitance type humidity sensor for direct display of RH and temperature (Stability Chambers)
- Audio visual alarm for temperature, humidity variations and utility failures
- Output for remote alarm in lab and at security gate
- Safety includes shut off of humidity and air heaters in case of temperature overshoots or undershoots beyond specified limits with alarms
- Facility to open the door from inside with emergency bell switch inside the chamber
- SS boiler tank with low water level alarm and power cut off to save boiler heater
Optional:
- Touch screen display (TFT) with additional features
- Validation protocol with IQ, OQ, PQ documentation
- Data logger for 8 point (4+4) temperature / humidity recording with sensor, printer interface and software
- Biometrics Magnetic Door Access for secured door opening with software to maintain log
- Validation (mapping) consist of one cycle for temperature/humidity at any one set point for 24 hours on empty and loaded condition
- Standby Refrigeration System / Humidity System
- REMI Datasoft Pro software complying to 21 CFR part 11 as per USFDA Guidelines
- Intelligent PLC/PID control system helps maintain highly accurate set parameters
- Biometrics system for secured door access
- Dual capacitance type humidity sensors; failure of one sensor automatically transfers regulation to the other sensor

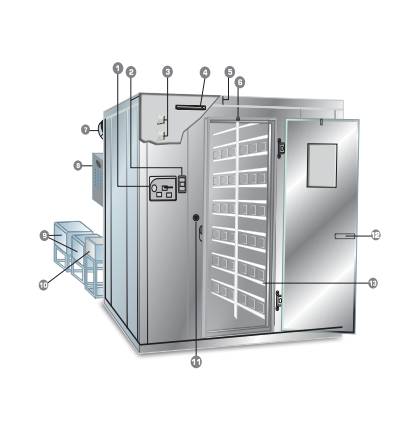

- Chamber illumination by fluorescent tubes
- Double walled modular panels with PUF insulation for maximum thermal protection
- Spring door latch for door closure
- Blower motor for forced air circulation
- Control panel with data-logger, PC connectivity and electrical components
- CFC free refrigeration system with split type condensing unit, standby refrigeration (Optional)
- Standby humidity (Optional)
- Emergency bell switch to open the door from inside
- Highly ergonomic handle with unique multi lever key lock
- SS racks and trays
REMI 'DATASOFT Pro’
Features
1. Web-Based Software Accessibility Web-based software accessible through browser helps instantly connect REMI chambers from anywhere only to authorized users.
2. Multi-Device Connectivity Multiple REMI chambers up to 30 devices connected to single software.
3. Network Connectivity Ethernet based having LAN connectivity helps authorized person to login into software from any PC connected to server.
4. Multi-User Collaboration Multiple hierarchy levels to view, analyze, e-Review, e-Approval, e-Comment on data with role-based access control
5. Alert & Notification System Mobile and email alert of alarms, events to pre-scheduled persons with SMS, real-time app-based notifications, and DND policies
6. Digital Acknowledgment Alarm acknowledgement with e-signatures and comprehensive audit trail compliance
7. Regulatory Compliance Secured audit trail report and calculation of MKT for any days with 21 CFR Part 11 compliance features
8. Backup System Automatic and manual both type of daily data backup with scheduled intervals, compressed files, and complete restoration capabilities
9. Data Management Additional features of data archival & data restore with retention policies and database integrity checking
10. Access Control Integration Biometric Device Integration with door access data integrated into REMI Web Based software including fingerprint authentication and access logging
11. Advanced Reporting & Analytics PDF report generation, scheduled reporting, and real-time data visualization
| Technical Data | |||||

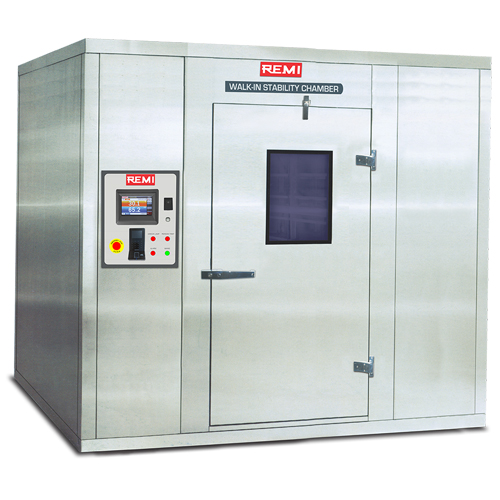

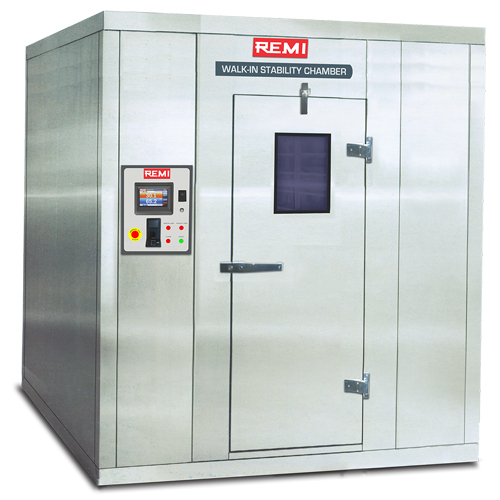

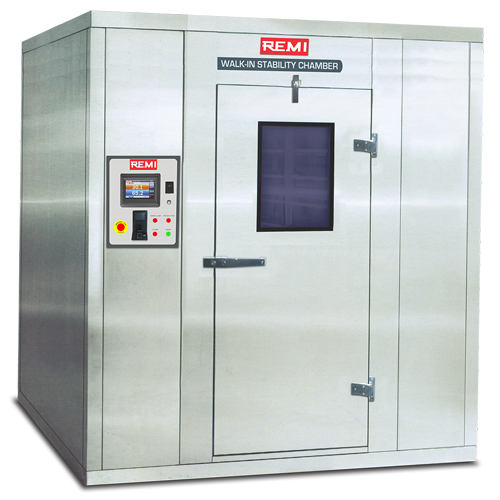

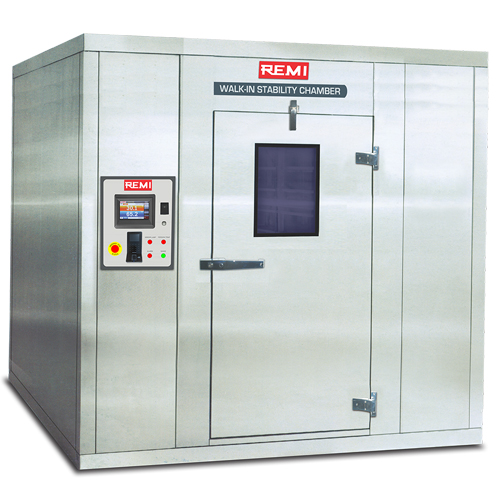

| WALK-IN STABILITY CHAMBERS | WSC-50 | WSC-80 | WSC-100 | WSC-120 | WSC-150 |

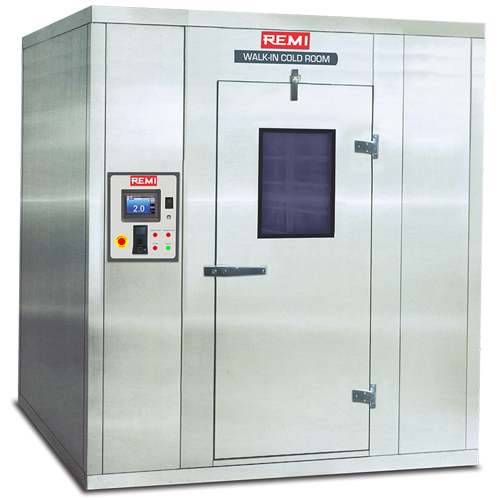

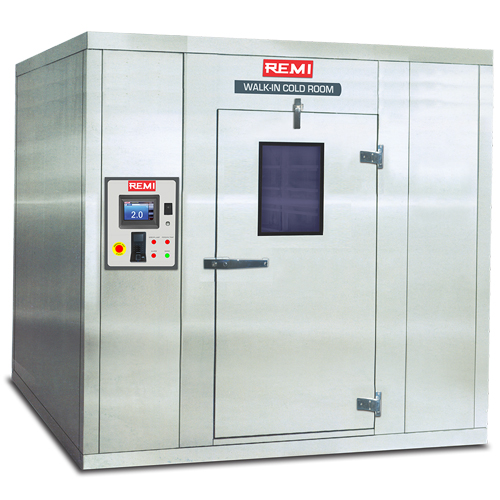

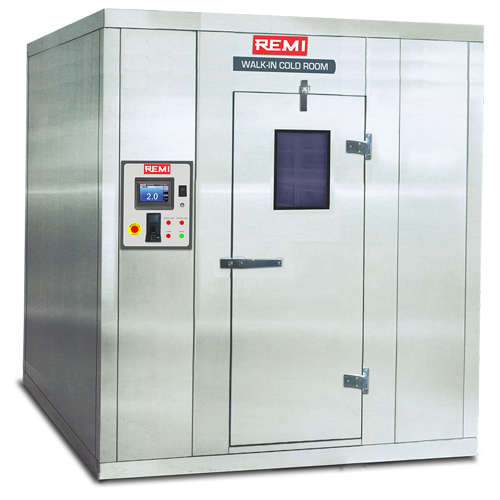

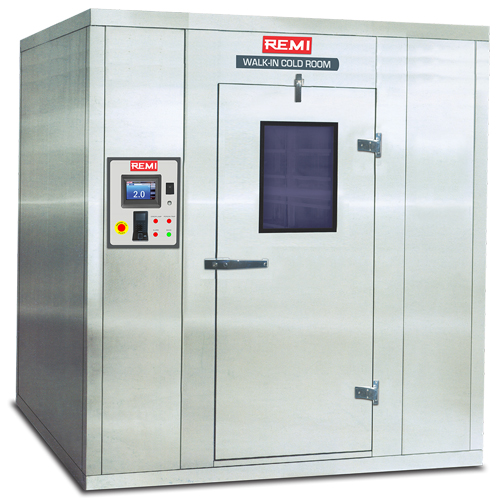

| WALK-IN COLD ROOM | WCR-50 | WCR-80 | WCR-100 | WCR-120 | WCR-150 |
| Internal Volume (Liters) | 5000 | 8000 | 10000 | 12500 | 15000 |
| Number of Shelves | 16 | 24 | 32 | 48 | 48 |
| Internal Dimensions (W × D × H mm) | 1250 × 2000 × 2000 | 2000 × 2000 × 2000 | 2000 × 2000 × 2500 | 2000 × 2500 × 2400 | 2000 × 2500 × 2400 |
| External Dimensions (W × D × H mm) | 1410 × 2360 × 2160 | 2160 × 2360 × 2160 | 2160 × 2360 × 2660 | 2160 × 2860 × 2560 | 2660 × 2860 × 2560 |
| Internal Body Material | Stainless Steel 304 grade (Standard Models), Stainless Steel 316 grade (GMP Models) | ||||
| External Body Material | Powder Coated CRCA Steel (Standard Models), Stainless Steel 304 grade (GMP Models) | ||||
| Insulation | 80 mm minimum, CFC free polyurethane foam | ||||
| Illumination | Fluorescent Tubes | ||||
| Control & Display | Microprocessor based PID control system with large 4" LCD Display | ||||
| Power Failure Alarm | Audio Visual Alarm | ||||
| Door Open Alarm | Audio Alarm in case door open for over one minute | ||||
| Walk-In Stability Chambers | Walk-In Cold Rooms | |
| Sensor | Capacitance type direct reading | PT-100 |
| Temperature Range & Accuracy | 20°C to 60°C, ±1°C | 2°C to 8°C, ±1°C |
| Humidity Range (RH) & Accuracy | 40% to 95%, ±3% RH | xx |
| Audio Visual Variation Alarm | Set Humidity ±3% RH, Set Temperature ±2°C | Set Temperature ±2°C |
Note: Walk-in Stability Chambers & Walk-in Cold Rooms also offered in sizes as per your requirement.
Please contact us with details for the same.
Supply: 220–240V, 50Hz, Single Phase
