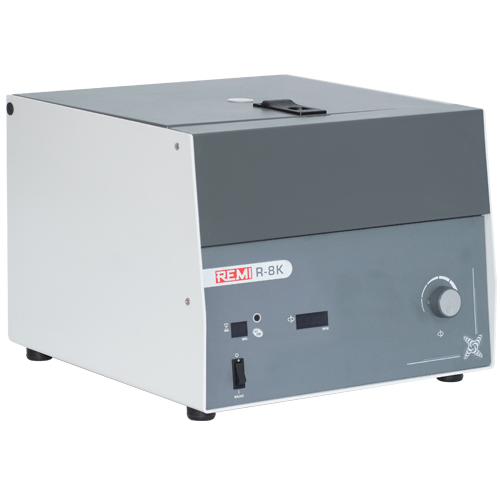

R - 8K
Special Purpose Centrifuge
R-8K Centrifuge incorporates stepless Speed Regulator, digital Timer and speed meter. It has been designed specifically to suit the following special applications.
1) Test of Infant Milk Food as per IS:1547:1985 for determination of solubility index in Infant Milk Foods.
2) For determination of Insolubility Index of dried milk and dried Milk products as per IS: 12759:1989.
3) For determination of Sulphates in Chrome solution.
| Technical Data | ||
| Models | R-8K | |
| Max Speed | rpm | 4800 |
| Max. RCF | ‘g' | 3730 |
| Max. Capacity | ml | 200 |
| W x D x H | mm | 400 x 420 x 315 |
Supply: 220-240 Volts 50 Hz Single Phase.
| Rotor Heads Listing | |||
| Model | Description | Max. Speed RPM |
Max. RCF ‘g’ |
| R-80 | 8 place Swing Out Rotor with Glass Tubes suitable for determination of Dust concentrate in Diesel Fuel filters | 4400 | 3240 |
| R-86 | 4 place Swing Out Rotor with Glass Tubes suitable for determination of Solubility index in infant milk foods & insolubility index of dried milk & dried milk products | 4800 | 3730 |
| R-87 | 4 place Swing Out Rotor with Glass Tubes suitable for determination of sulphate in chrome plating solution | 4300 | 3260 |

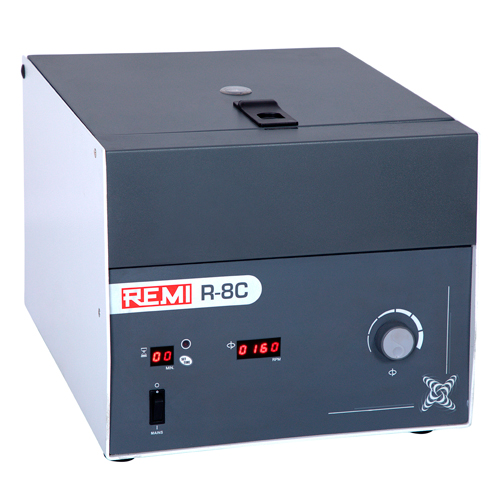

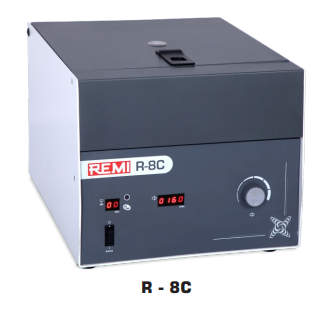

Laboratory Centrifuges
R-8C is suitable for routine sample analysis in Medical, Hospital, Pathology and Institutional laboratories. With a wide choice of rotor heads and adaptors, this unit are truly versatile.

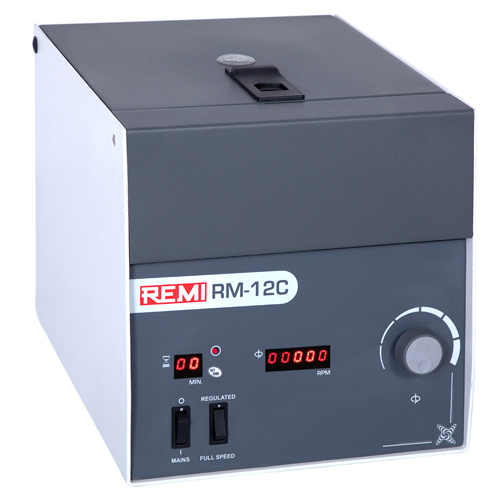

Micro Centrifuges
RM-12C is ideal for growing routine application in biochemical and clinical labs, for Hematocrit, Corpuscle Percentage contents in blood, Serum analysis and precipitate separation etc.
Salient features :
- Digital Speed Indicator
- Stepless speed regulator
- 0-99 minutes digital countdown timer
- Imbalance detector with cut off
- Safety Lid interlock to prevent cover opening during centrifugation
- Press Switch for quick acceleration to full speed (RM-12C)
| Rotors Listing for RM-12C | |||
| Models | Capacity | Max. Speed RPM | Max. RCF ‘g’ |
| RM-1210 | Micro Hematocrit Rotor for 24 Capillaries (75 X 1 mm) | 12000 | 15300 |
| RM-1211 | Micro Hematocrit Rotor for 12 capillaries (QBC -II Plus) | 12000 | 15300 |
| RM-1212 | Heparinized capillary tubes (75mm x 1 mm bore) | ||
| RM-1213 | Reading Device for RM-1210 | ||
| Angle Rotors | |||
| RM-1214 | 10 X 2ml with Glass Tubes & reduction adaptors of 1ml & 0.5ml | 16000 | 16600 |
| RM-1215 | 24 X 1.5ml with Tapered bottom Polypropylene tubes & reduction adaptors of 0.5ml & 0.2ml | 11850 | 12715 |
| RM-1216 | 8 X 5ml with round bottom Polypropylene tubes & reduction adaptors of 4ml & 2ml | 11850 | 13500 |
| RM-1217 | 4 strips of 8 X 0.2ml (PCR Strip Tubes) | 12000 | 11910 |
